>>I<< End Plug Installation

  1. Apply 3M™ AAD Part number 8661, 8663, 8672, 8678, 8679 or equivalent to the threaded part of the end plug.
  2. Secure the threaded portion of the end plug at two places by using a punch.

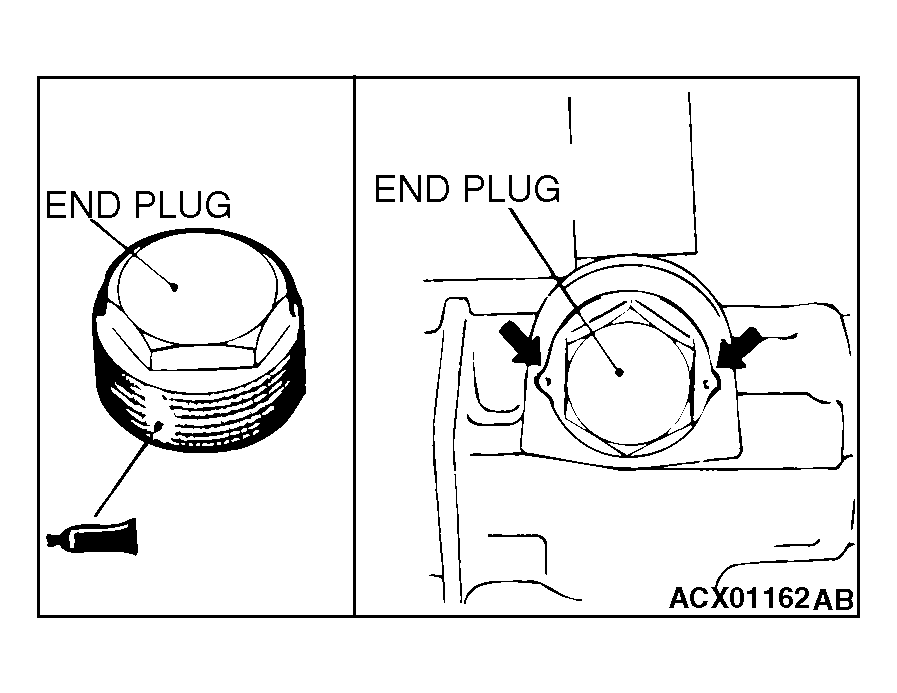

Fig 1: Installing End Plug
G04277860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
