Scan Tool (Mut-III Sub Assembly)

CAUTION: Turn the ignition switch to the "LOCK" (OFF) position before disconnecting or connecting the scan tool.
NOTE: MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.

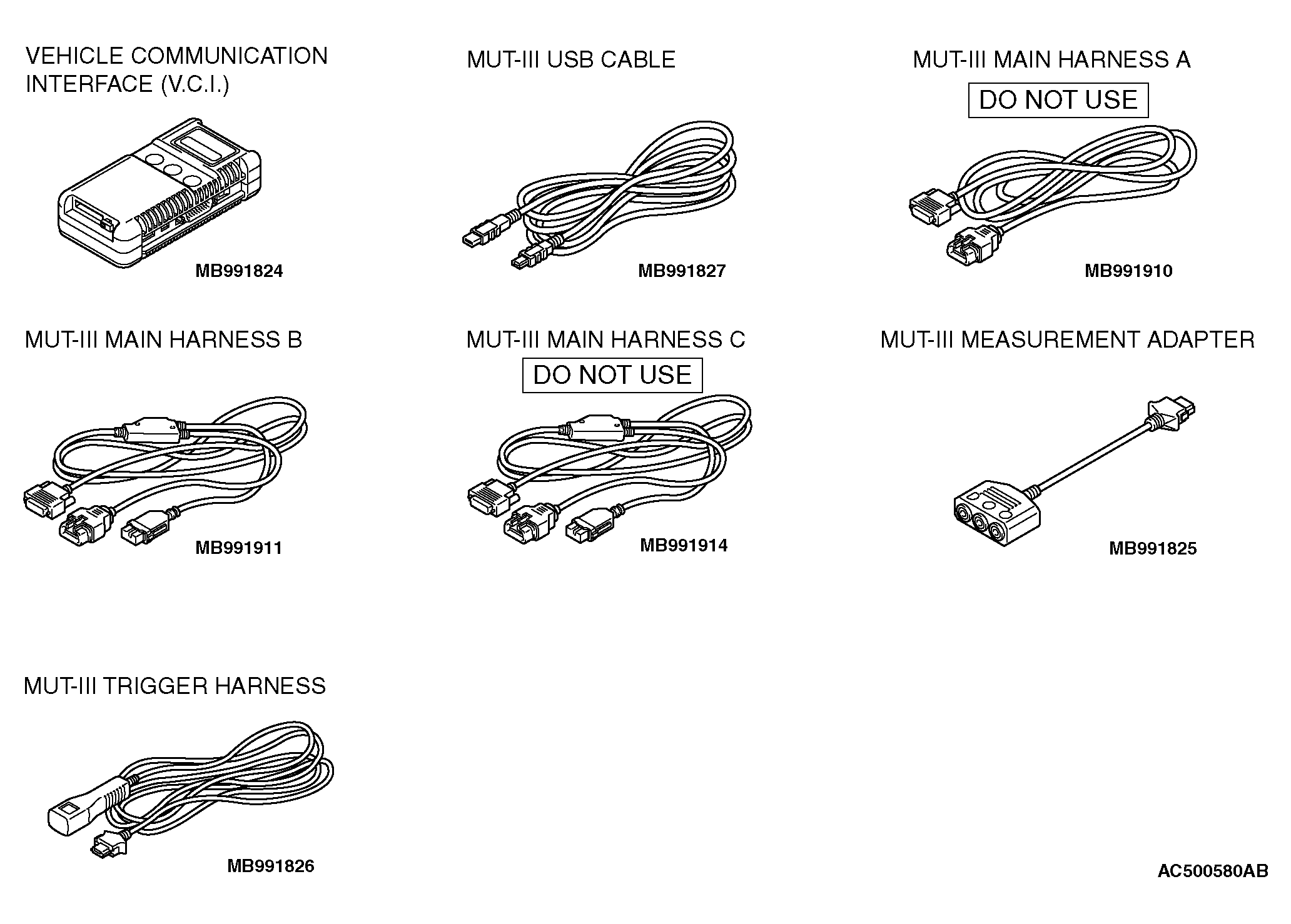

Fig 1: Identifying Scan Tool (MUT-III Sub Assembly)
G04270710Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
