Removal And Installation < 2.4L Engine >: Notes

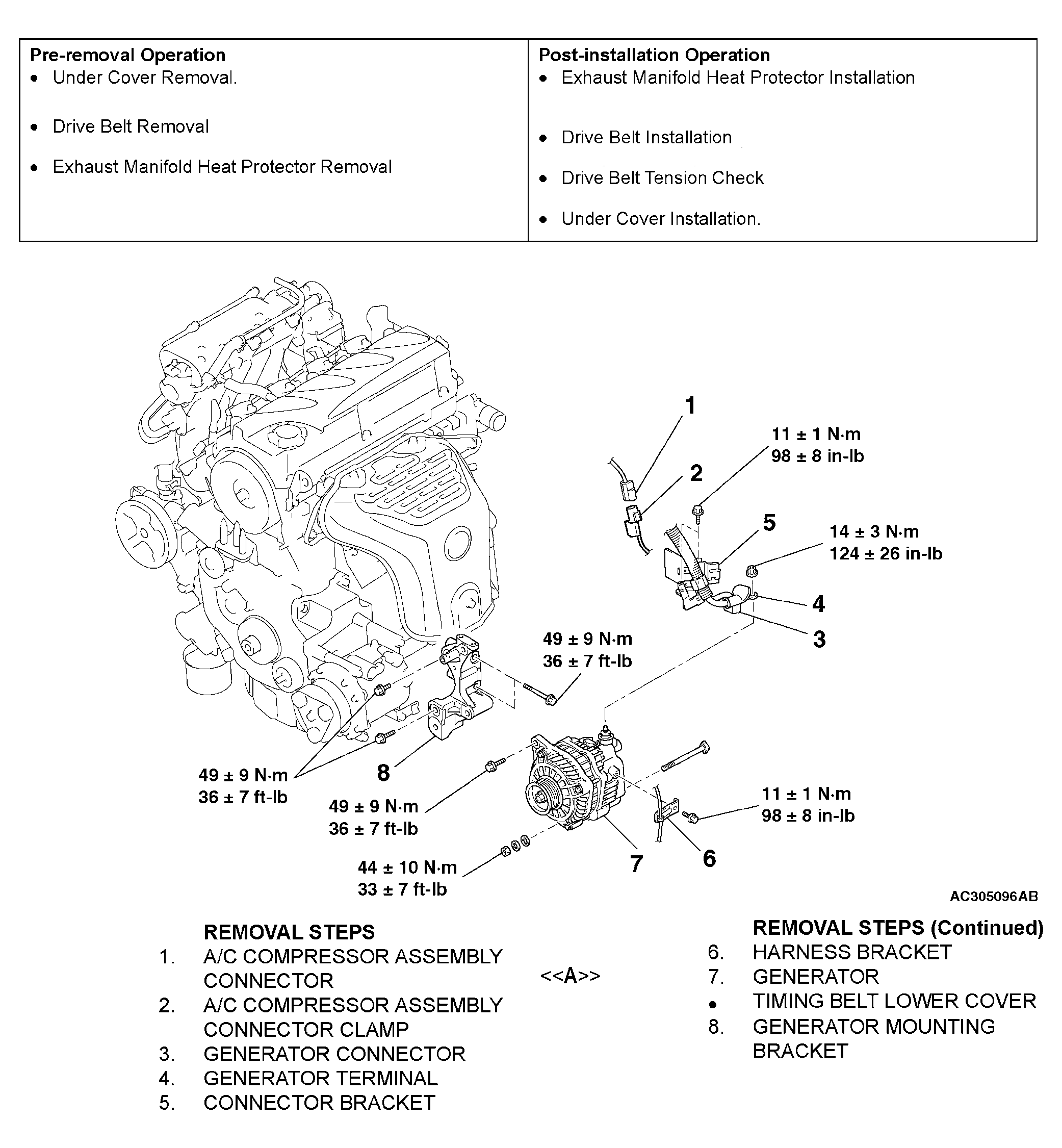

Fig 1: Removing/Installing Generator Assembly (2.4L Engine)

G04271511

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
