Disassembly And Assembly: Notes

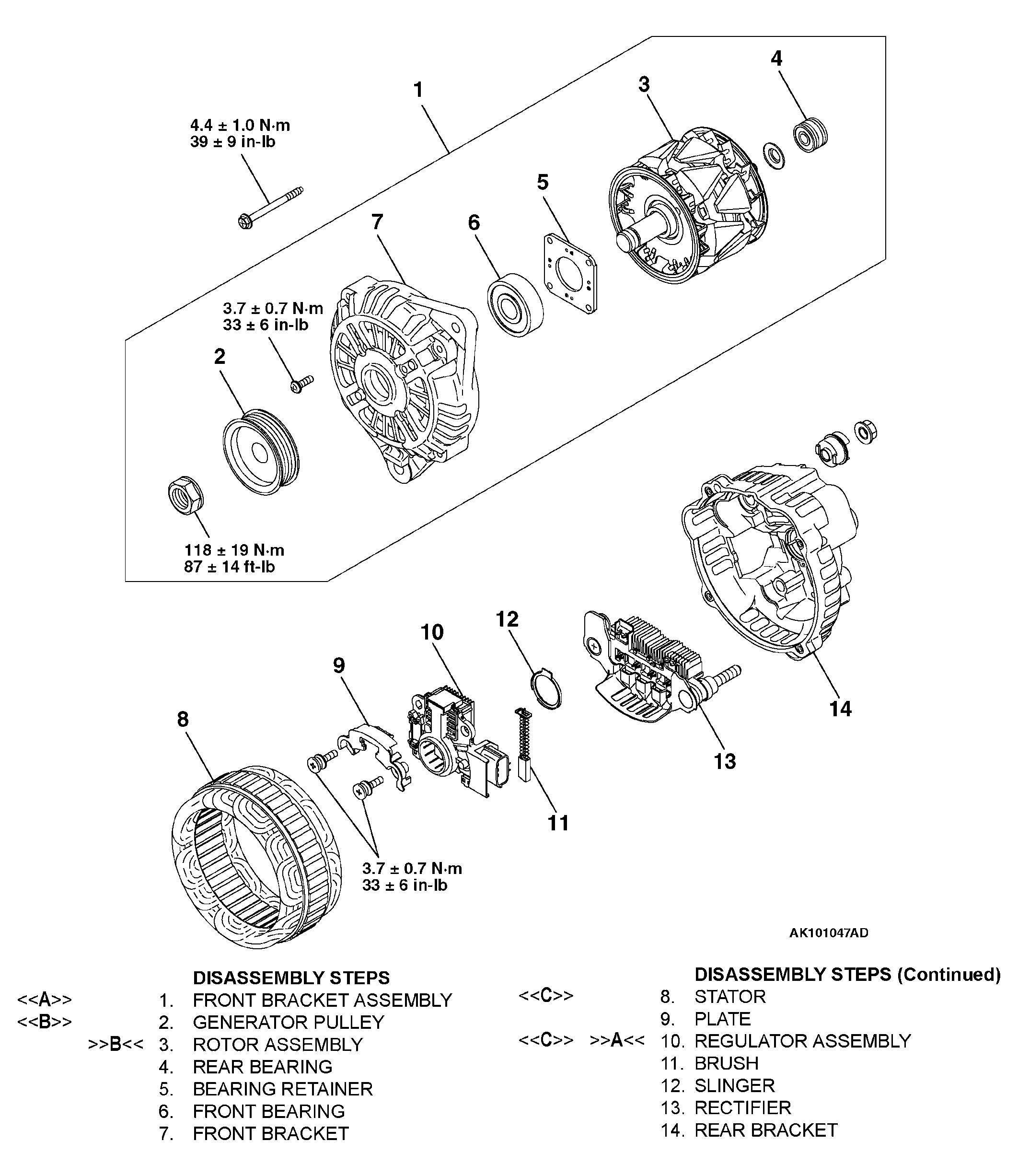

Fig 1: Disassembling/Assembling Generator Assembly
G04271512Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
