INSPECTION PROCEDURE N-2: ETACS-ECU does not receive any signal from hazard warning light switch.: Notes

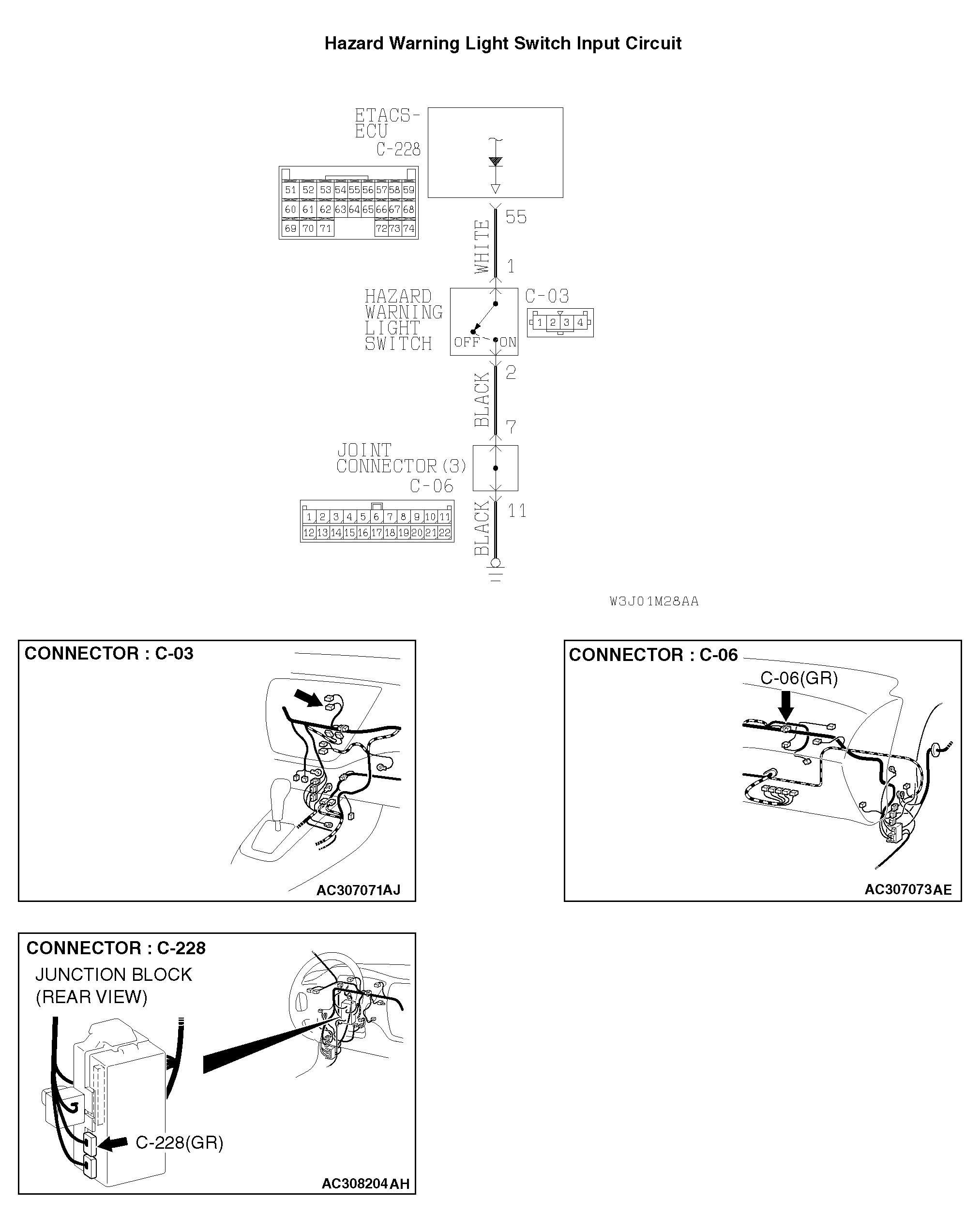

Fig 1: Hazard Warning Light Switch Input Circuit

G04279953

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
