Home >> Mitsubishi >> 2007 >> Lancer Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Connector End Views >> Connector End Views >> Powertrain Control Module (AT) Connector End View (C-134)

Powertrain Control Module (AT) Connector End View (C-134)

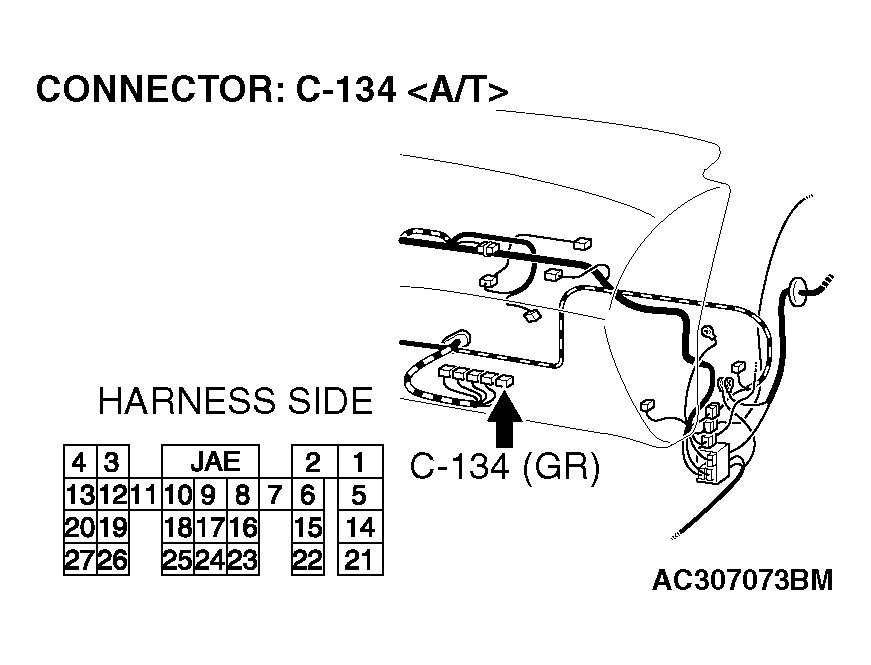

Fig 1: Powertrain Control Module (AT) Connector End View (C-134)

G04280154

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
