Removal And Installation: Notes

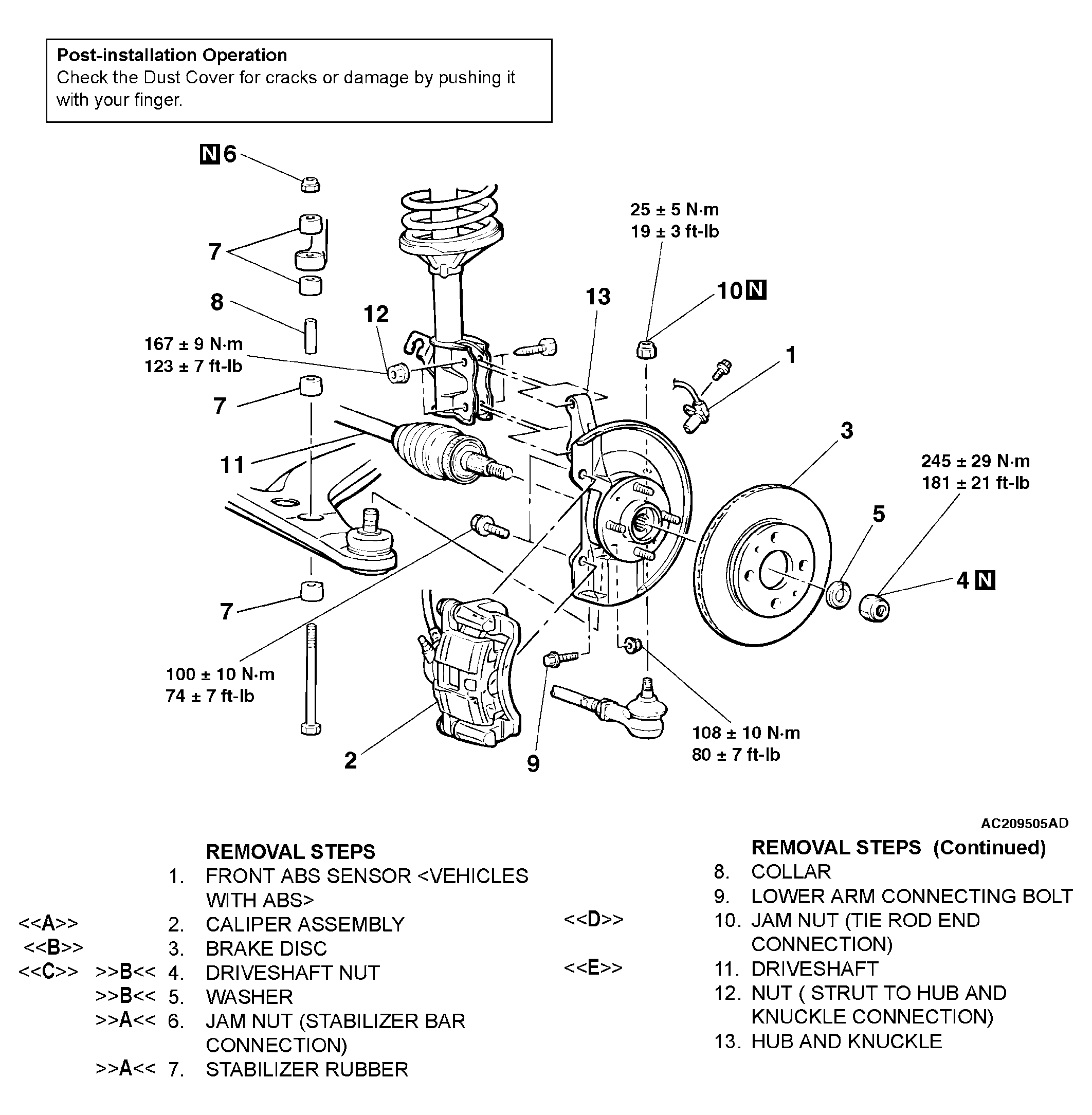

Fig 1: Removing/Installing Front Axle Hub Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990241: Axle Shaft Puller
• MB990242: Puller Shaft
• MB990244: Puller Bar
• MB991354: Puller Body
• MB990767: End Yoke Holder
• MB991897:Ball Joint Remover
