INSPECTION PROCEDURE 1: Communication between Scan Tool and the ABS-ECU is not possible.: Notes

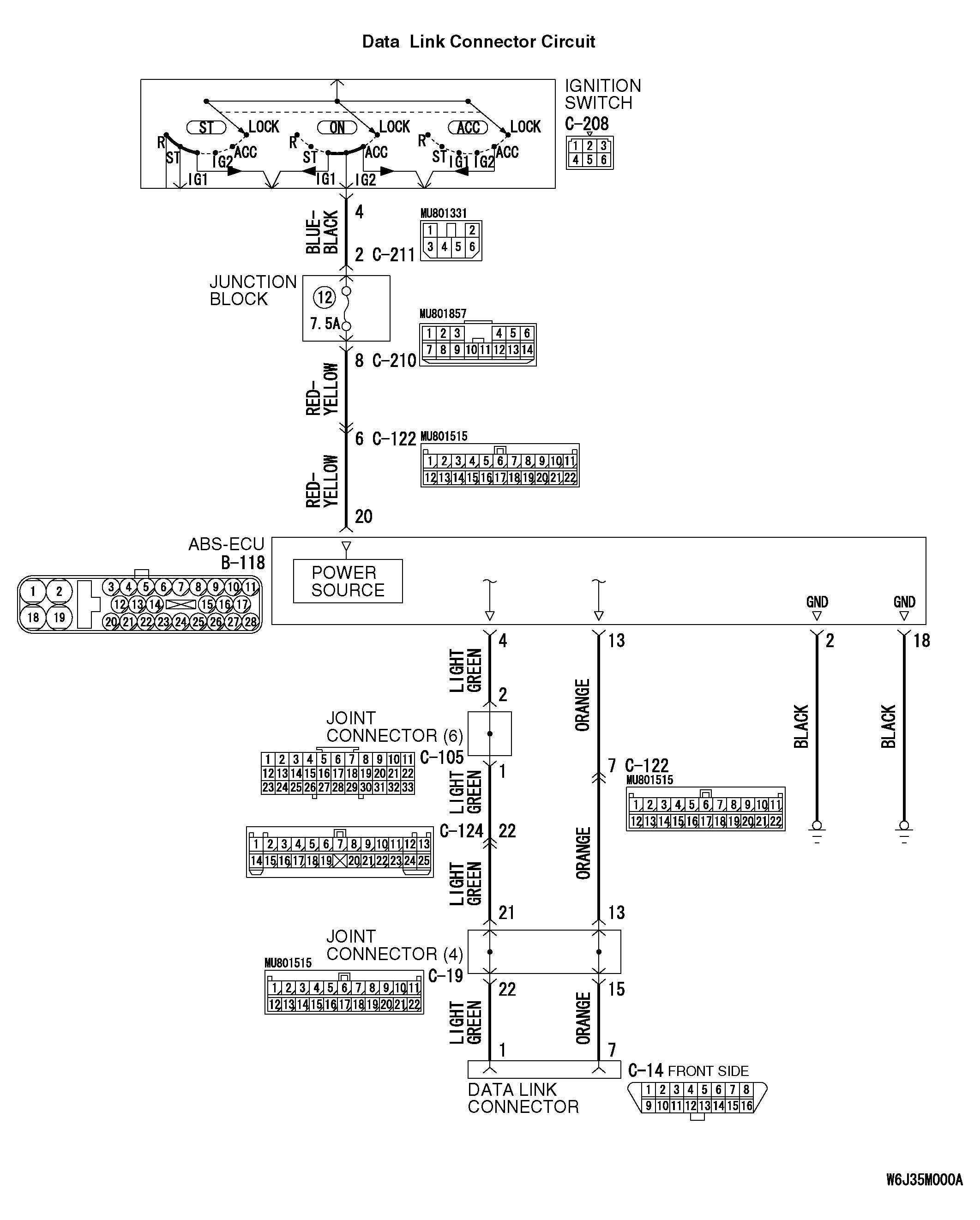

Fig 1: Data Link Connector Circuit Diagram

G04277702

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
