INSPECTION PROCEDURE 5: Engine Coolant Temperature Gauge does not Work.: Notes

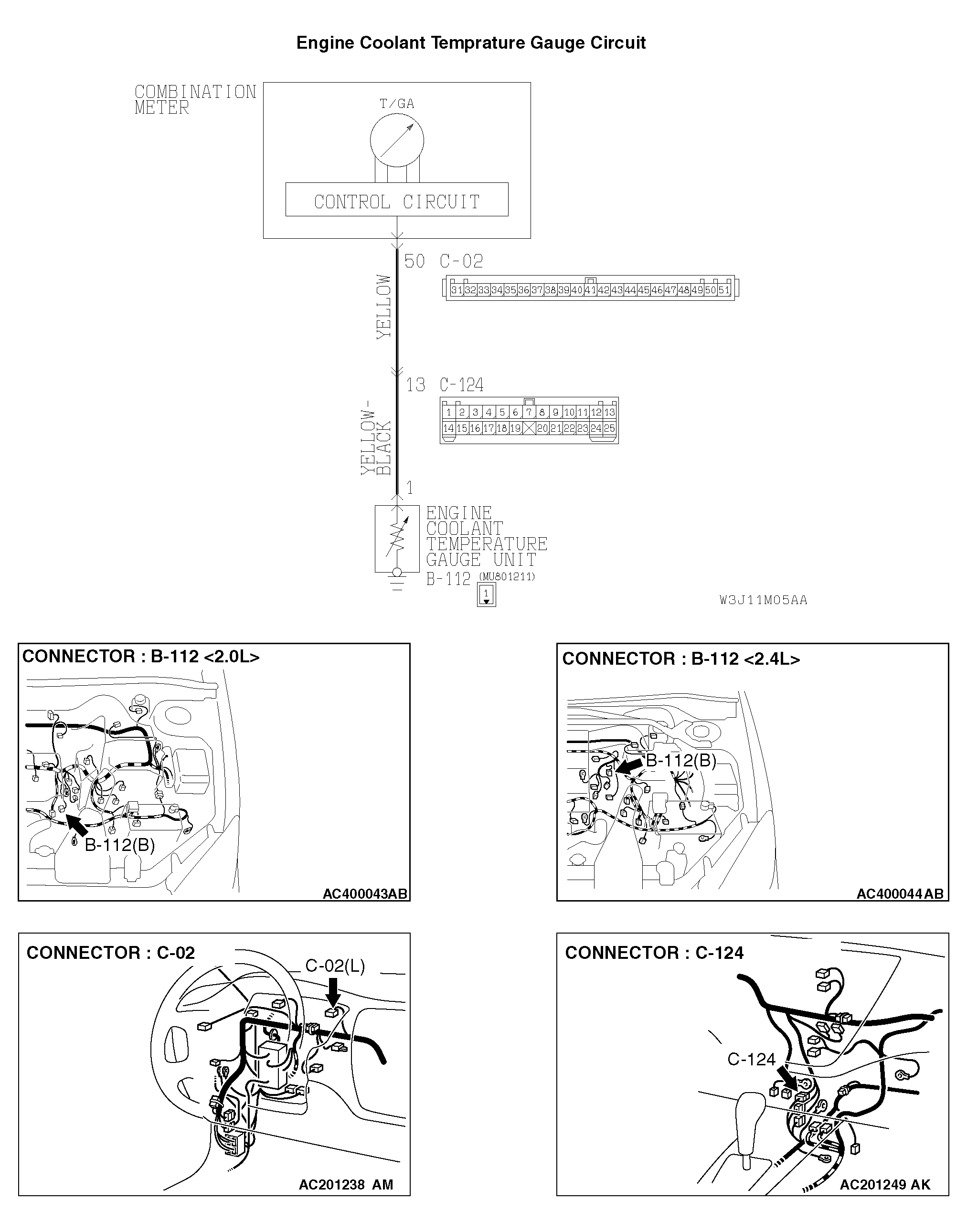

Fig 1: Engine Coolant Temperature Gauge - Circuit Diagram

G04278816

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
