INSPECTION PROCEDURE 4: Fuel Gauge does not Work.: Notes

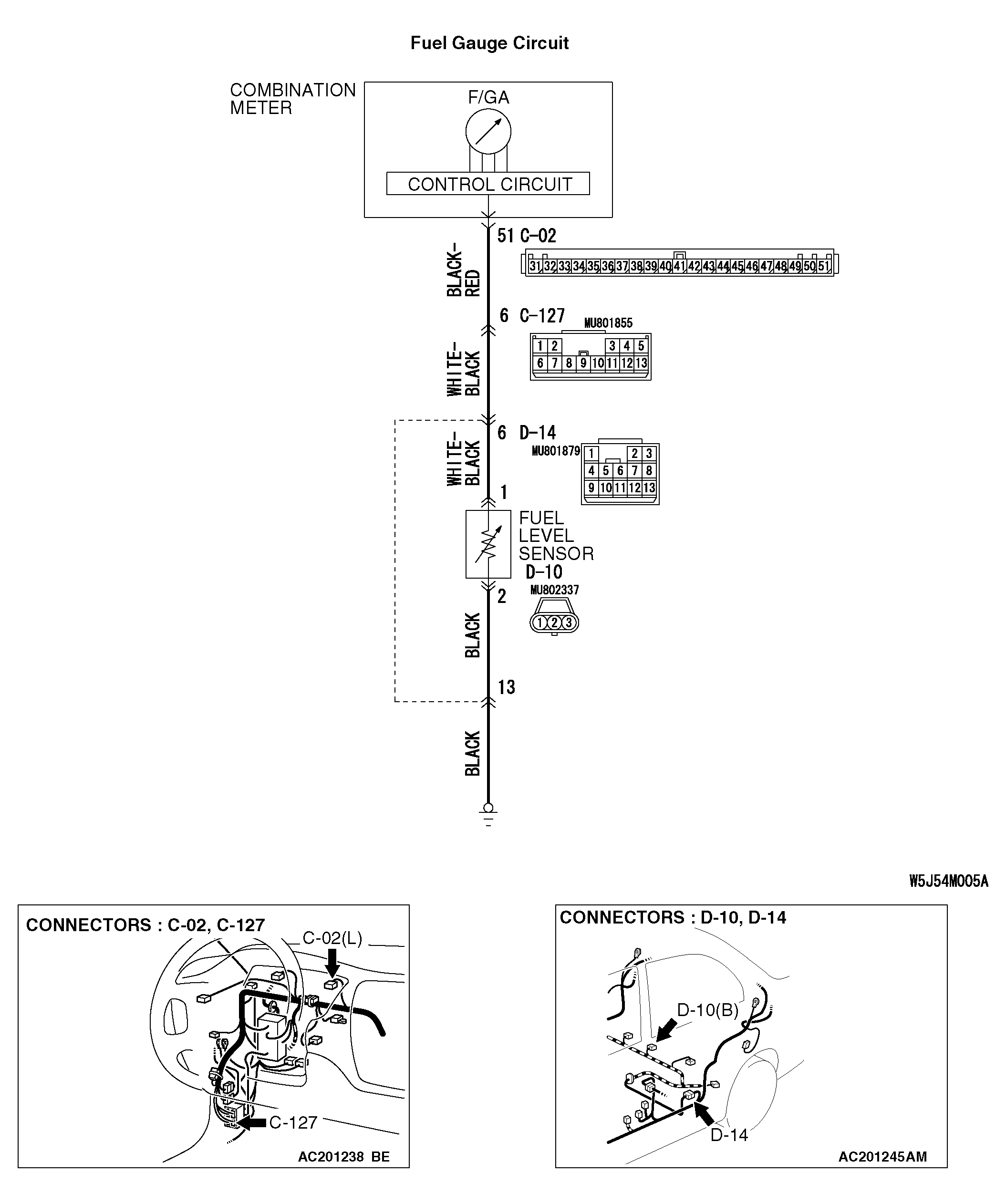

Fig 1: Fuel Gauge Circuit Diagram

G04278804

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
