Home >> Mitsubishi >> 2007 >> Lancer Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Simplified Wiring System - Lancer >> Symptom Procedures >> Headlight And Taillight >> INSPECTION PROCEDURE 1-11: Headlight and Taillight: Daytime running light function does not work normally. >> Notes

INSPECTION PROCEDURE 1-11: Headlight and Taillight: Daytime running light function does not work normally.: Notes

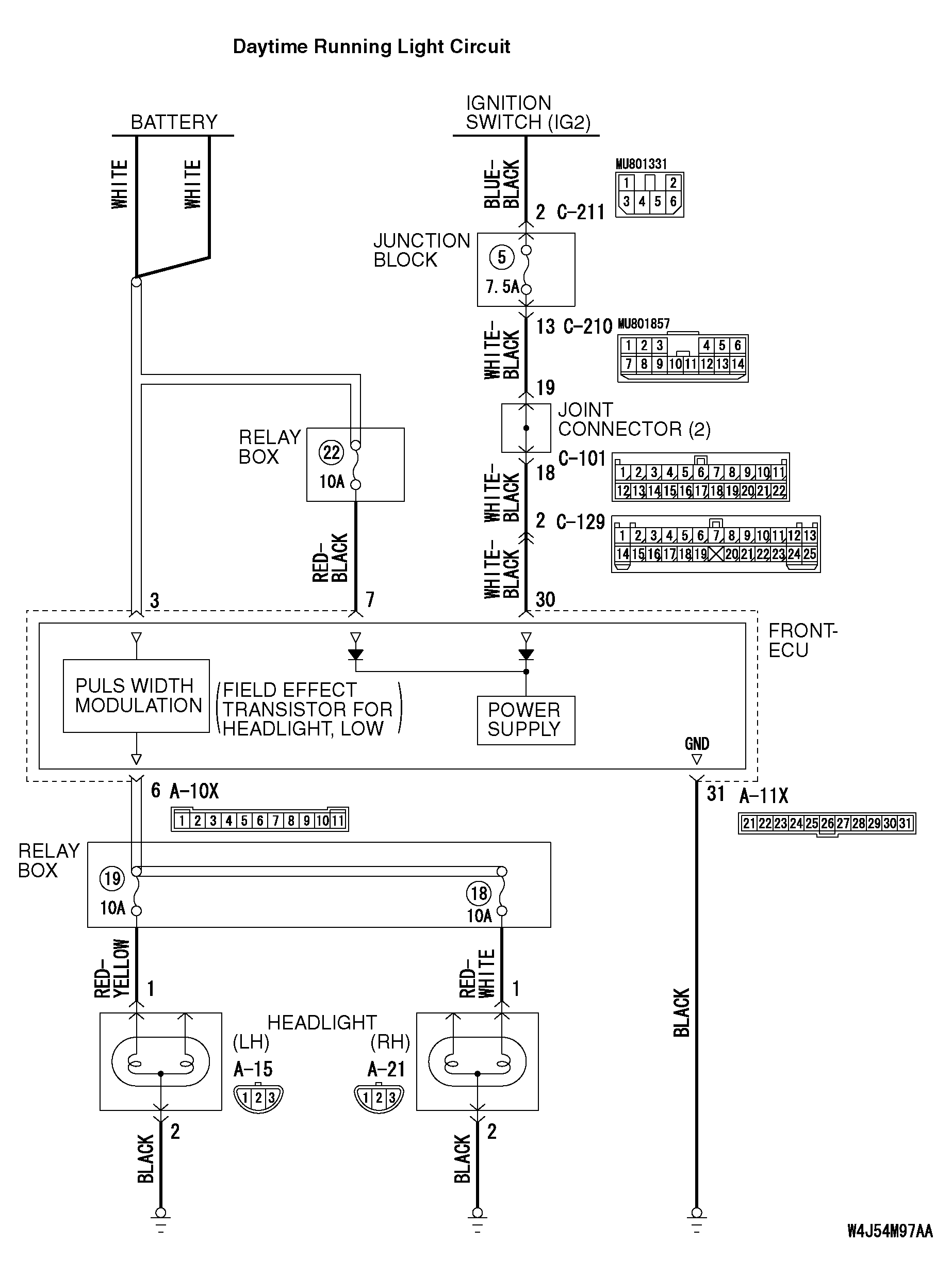

Fig 1: Identifying Daylight Running Light Circuit
G04279631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
