INSPECTION PROCEDURE M-9: ETACS-ECU does not receive signals from fog light switch.: Notes

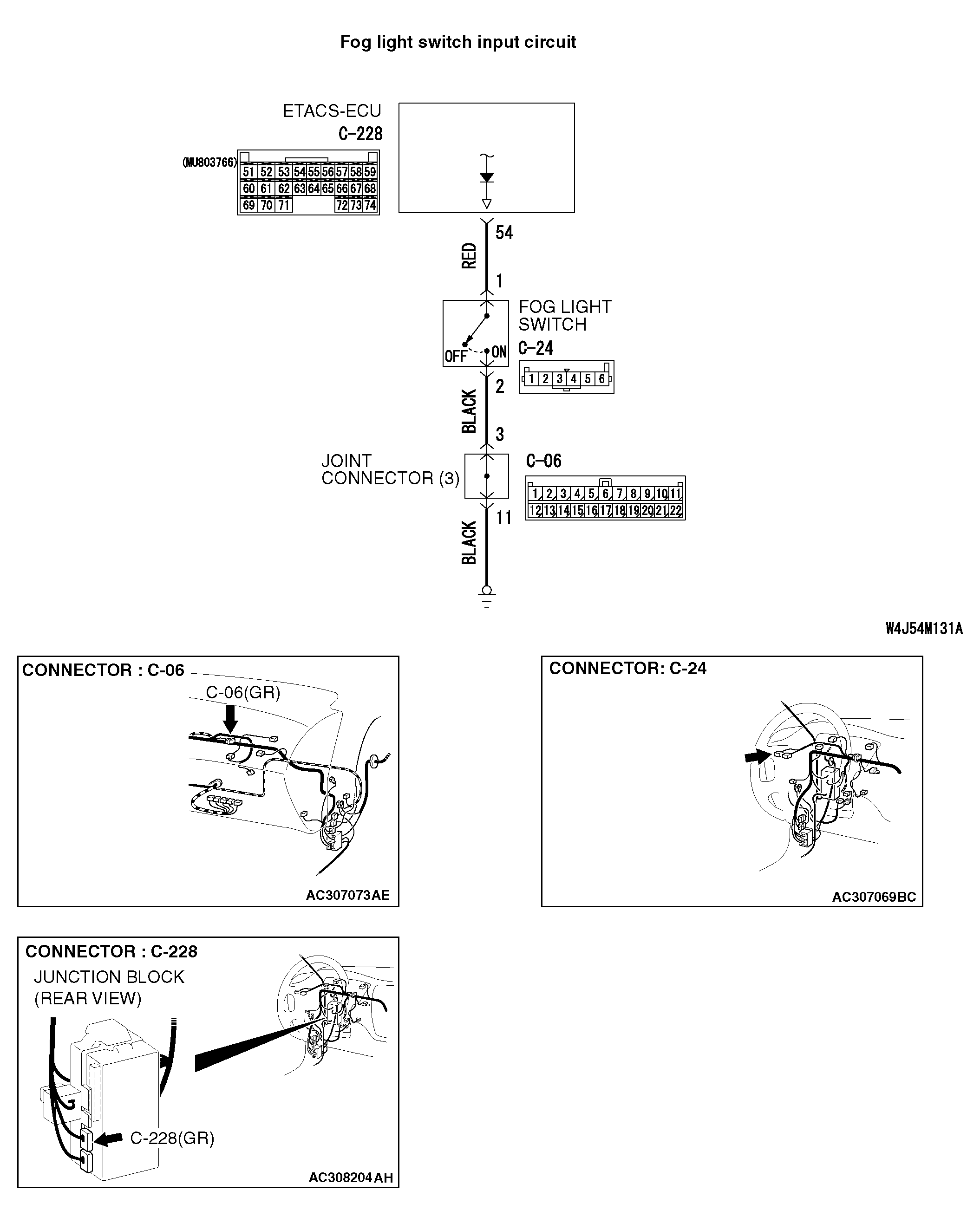

Fig 1: Fog Light Switch Input Circuit

G04279932

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
