Disassembly And Assembly: Notes

NUMBER OF CLUTCH DISCS AND PLATES

NUMBER OF CLUTCH DISCS AND PLATES CHART

  CLUTCH DISC CLUTCH PLATE CLUTCH REACTION PLATE
Over drive clutch 4 4 1
Reverse clutch 2 2 1

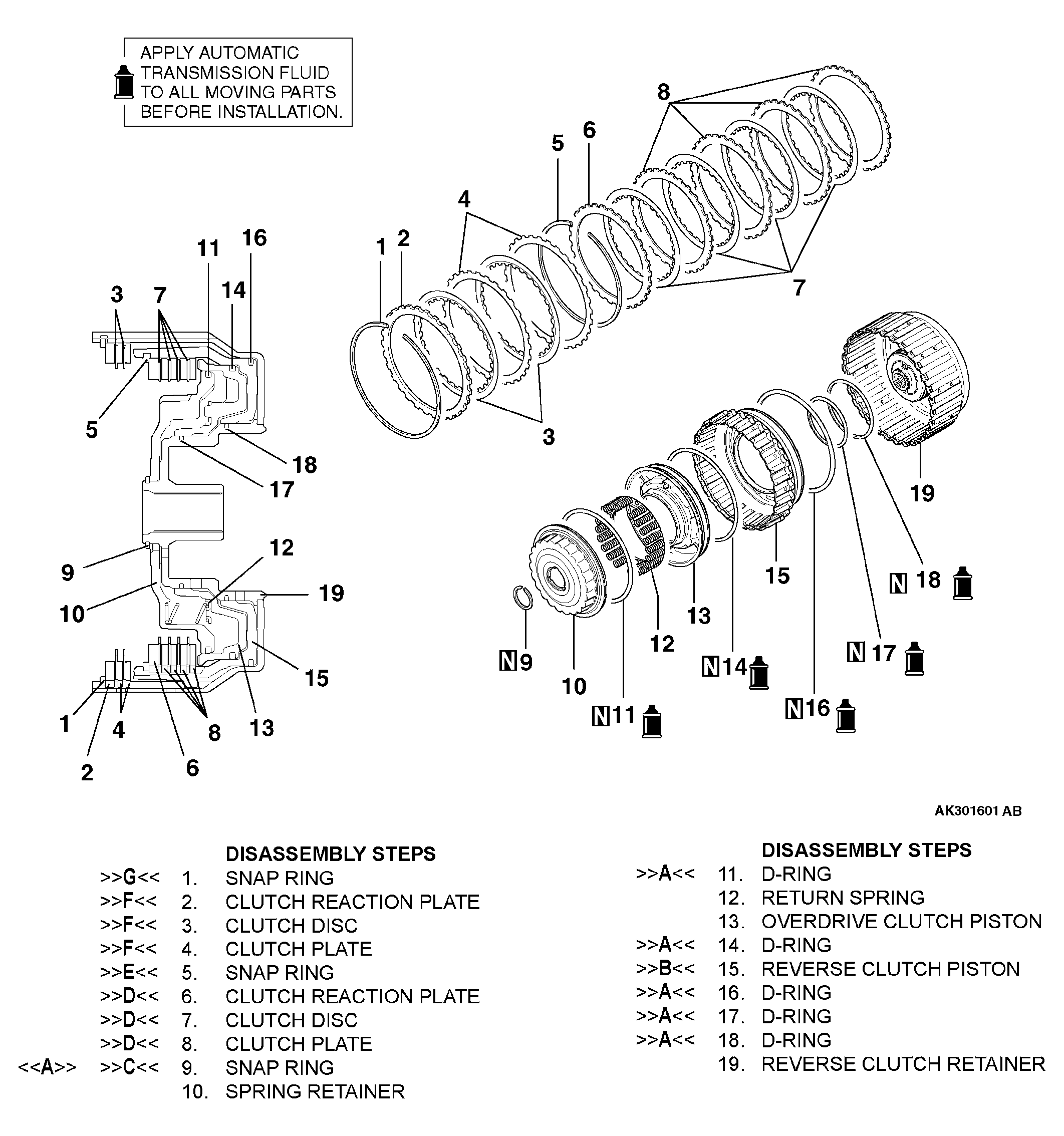

Fig 1: Disassembling/Assembling Of Reverse And Overdrive Clutch
G04277325Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
