Removal And Installation: Notes

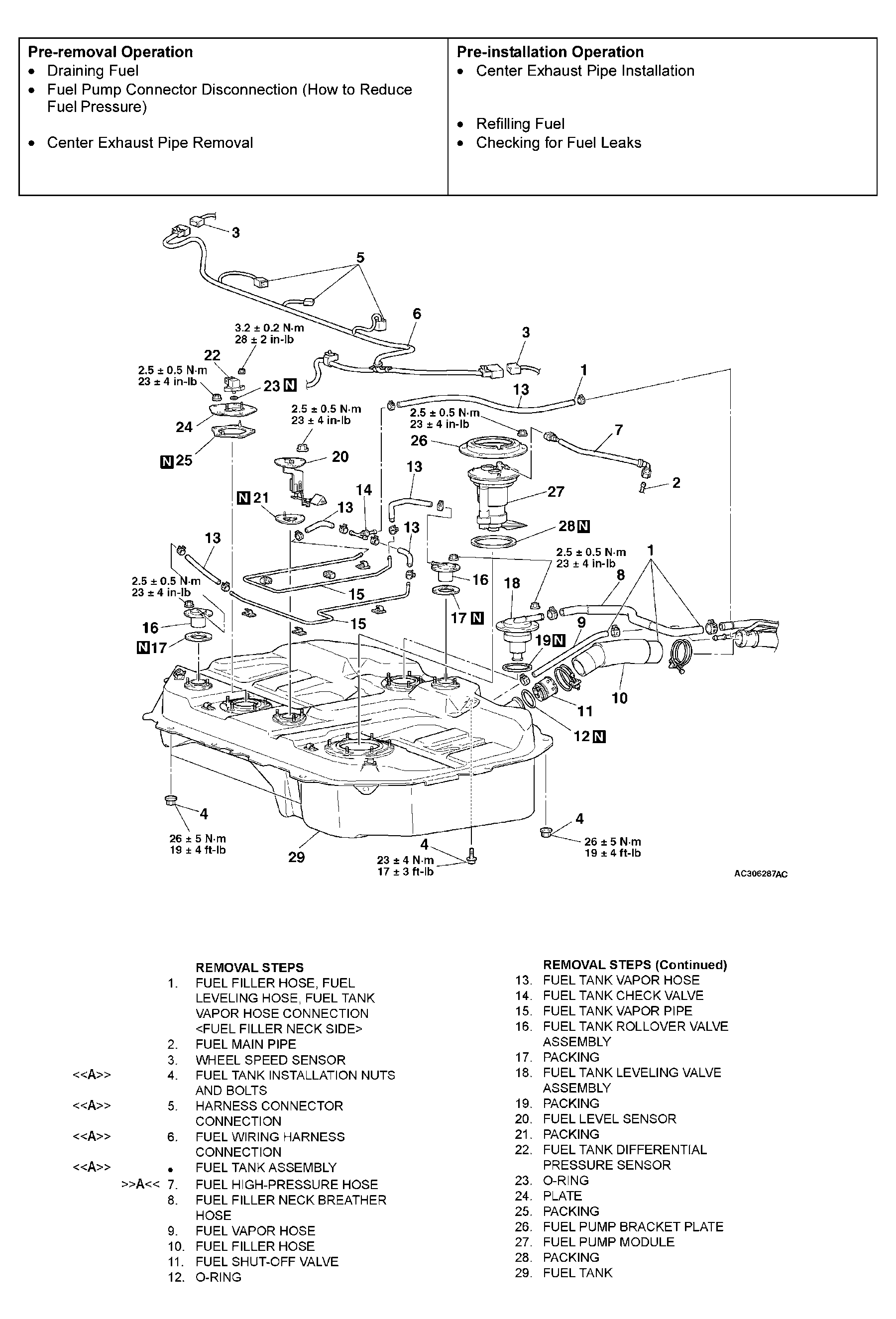

Fig 1: Removing/Installing Of Fuel Tank (1 Of 2)
G04273366Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

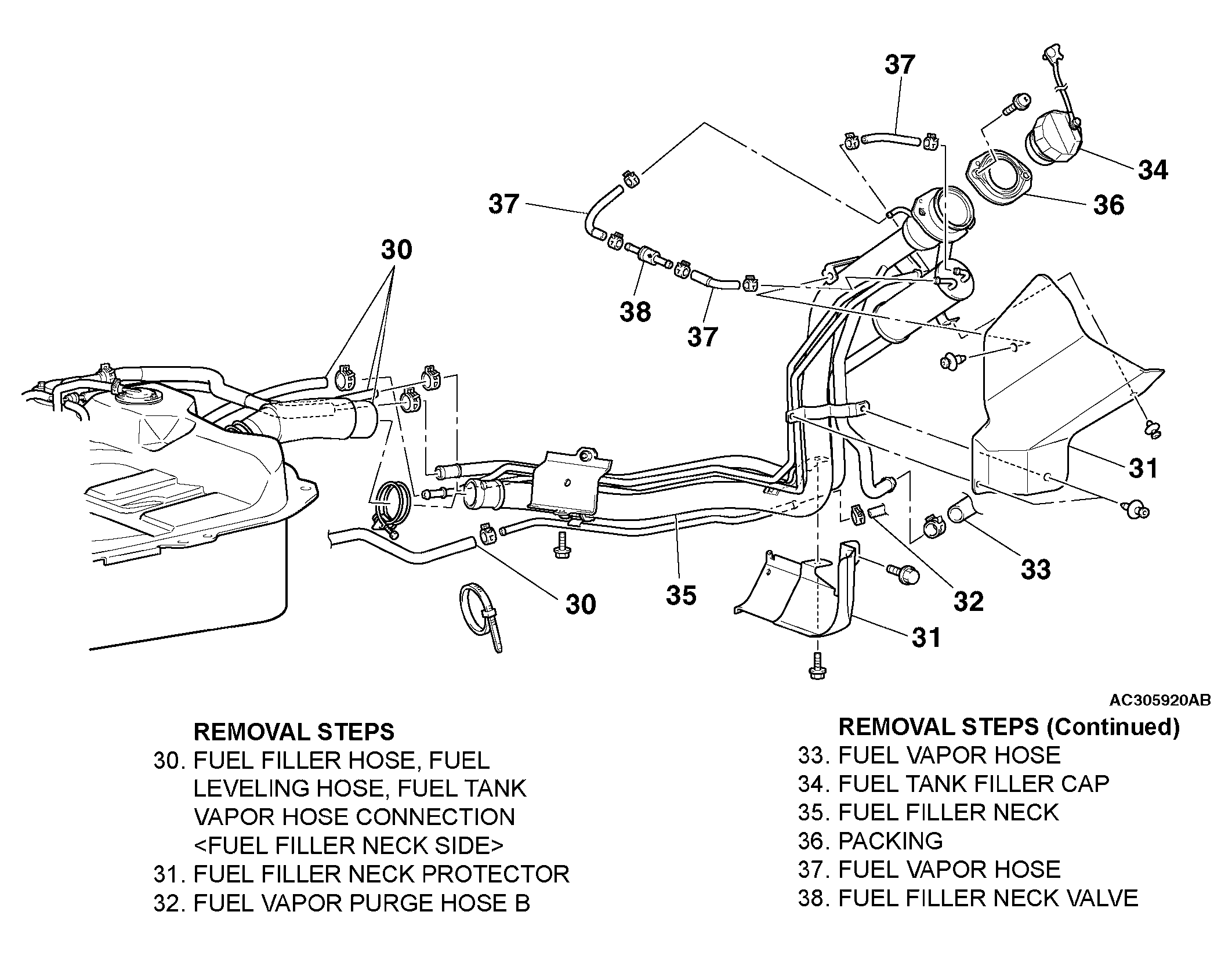

Fig 2: Removing/Installing Of Fuel Tank (2 Of 2)
G04273367Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
