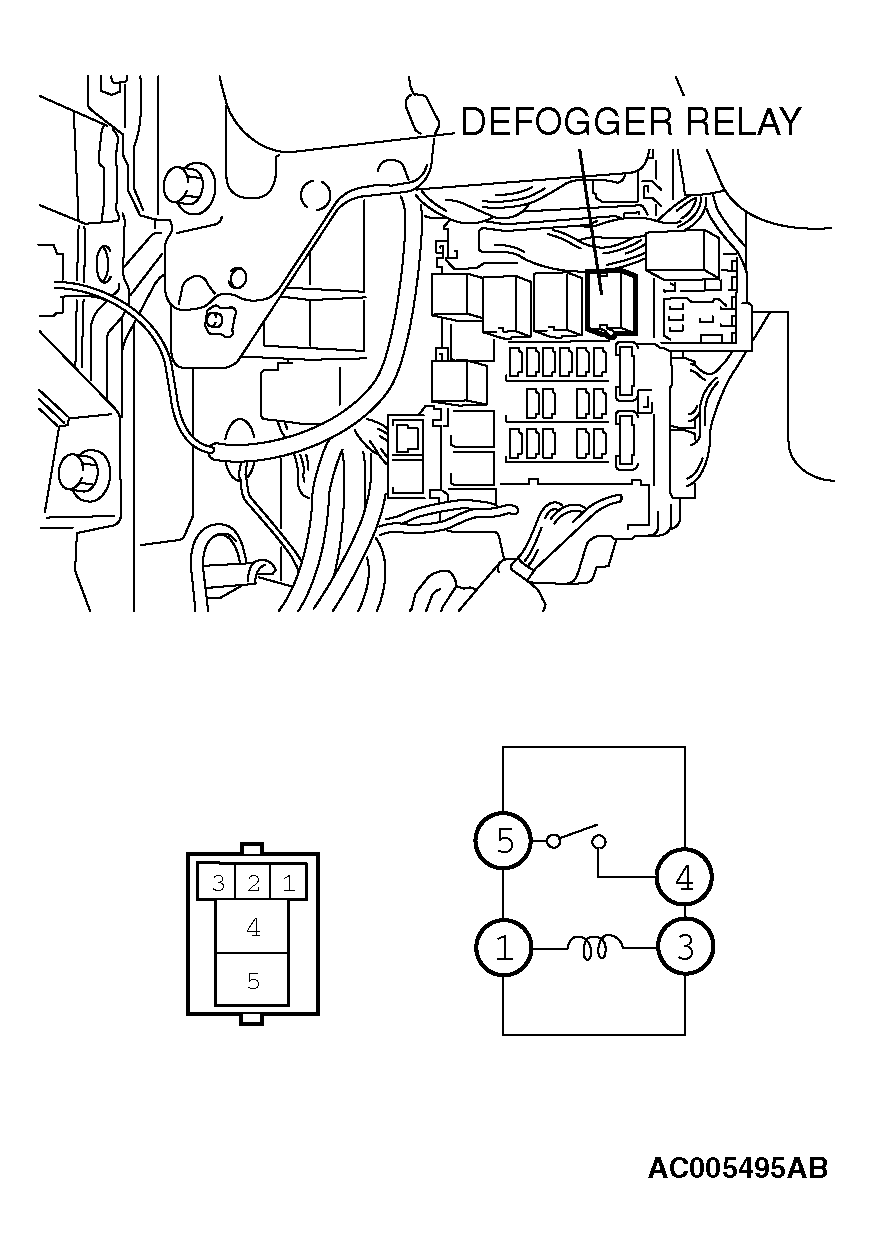

Defogger Relay Check
BATTERY VOLTAGE SPECIFIED CONDITION CHART
| BATTERY VOLTAGE |
TERMINAL NO. TO BE CONNECTED TO BATTERY |
SPECIFIED CONDITION |
| Not applied |
5 - 4 |
Open circuit |
- Connect terminal 3 to the positive battery terminal
- Connect terminal 1 to the negative battery terminal
|
5 - 4 |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
