Special Tools
SPECIAL TOOLS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|
| A B C D E F G |

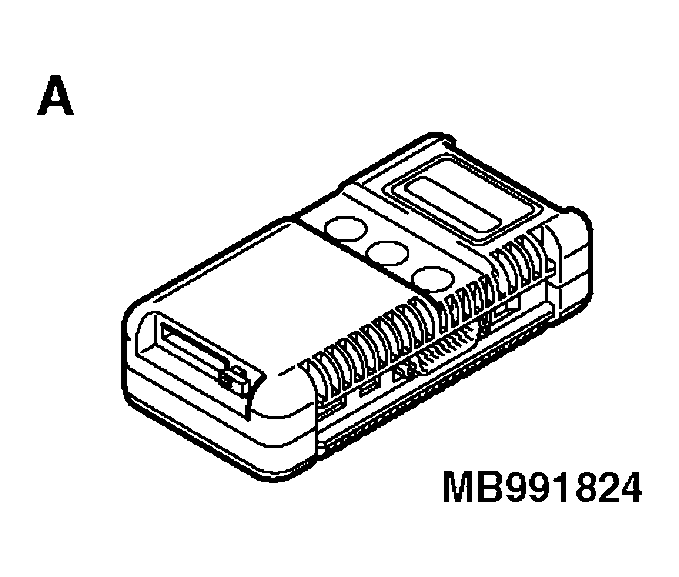

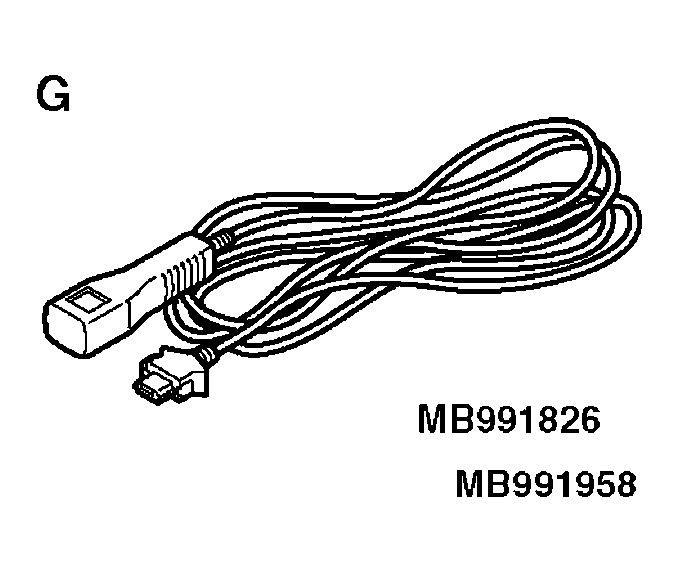

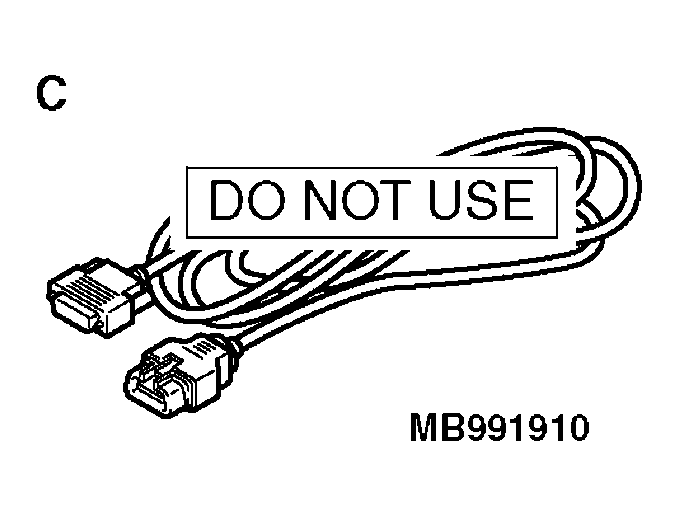

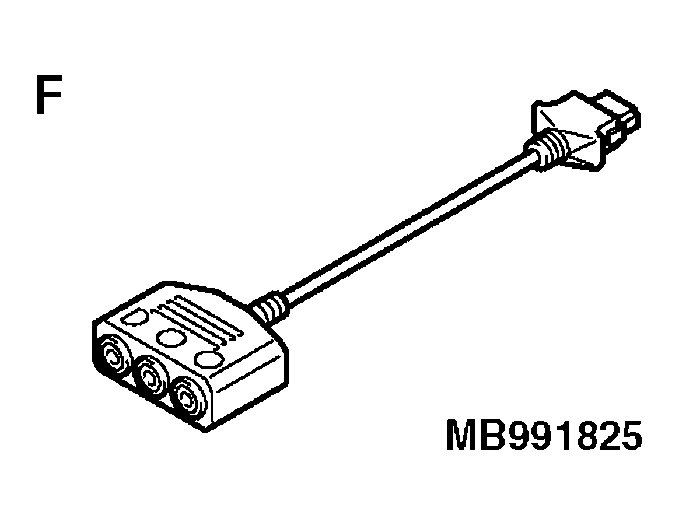

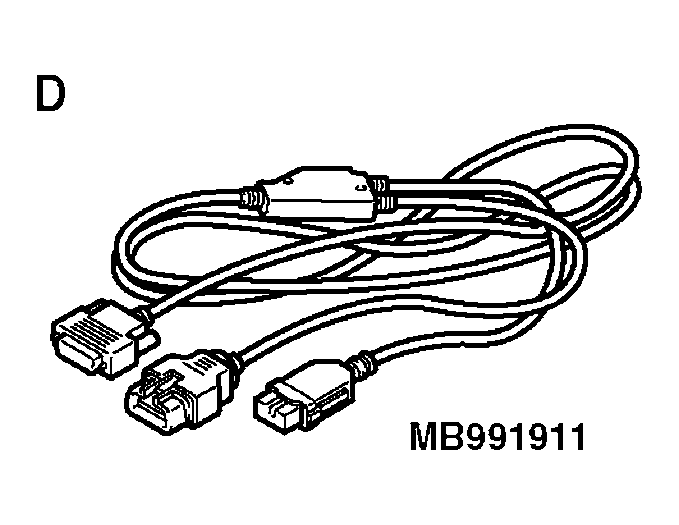

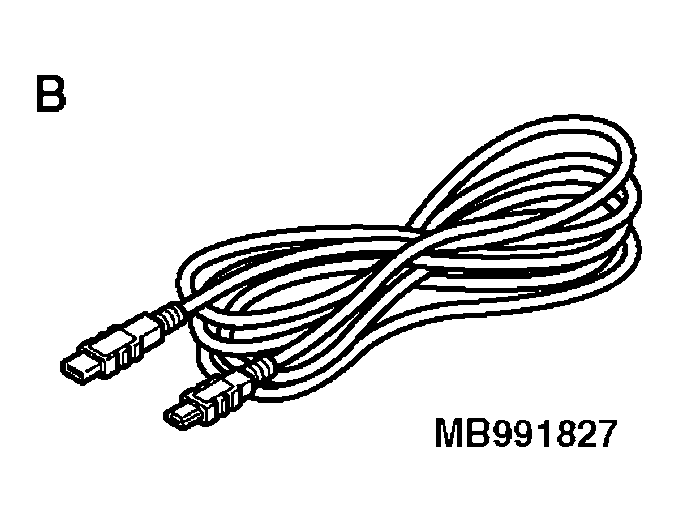

MB991958 A: MB991824 B: MB991827 C: MB991910 D: MB991911 E: MB991914 F: MB991825 G: MB991826 MUT-III sub assembly A: Vehicle communication interface (V.C.I.) B: MUT-III USB cable C: MUT-III main harness A (Vehicles with CAN communication system) D: MUT-III main harness B (Vehicles without CAN communication system) E: MUT-III main harness C (for Daimler Chrysler models only) F: MUT-III measurement adapter G: MUT-III trigger harness |
MB991824-KIT
NOTE:
G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
|
SWS communication line check (ECU check and service data)
CAUTION:
MUT-III main harness B (MB991911) should be used. MUT-III main harness A and C should not be used for this vehicle.
|

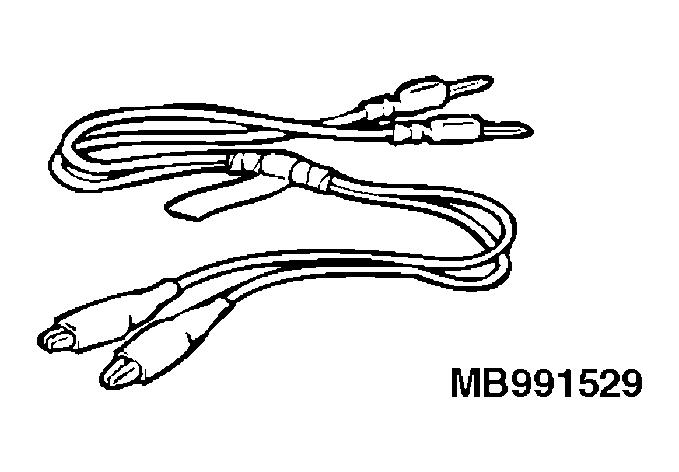

| MB991529 Diagnostic trouble code check harness |
Tool not necessary if scan tool (MUT-III) is available. | For checking of ABS (Diagnostic trouble code display when using the ABS warning light) | |

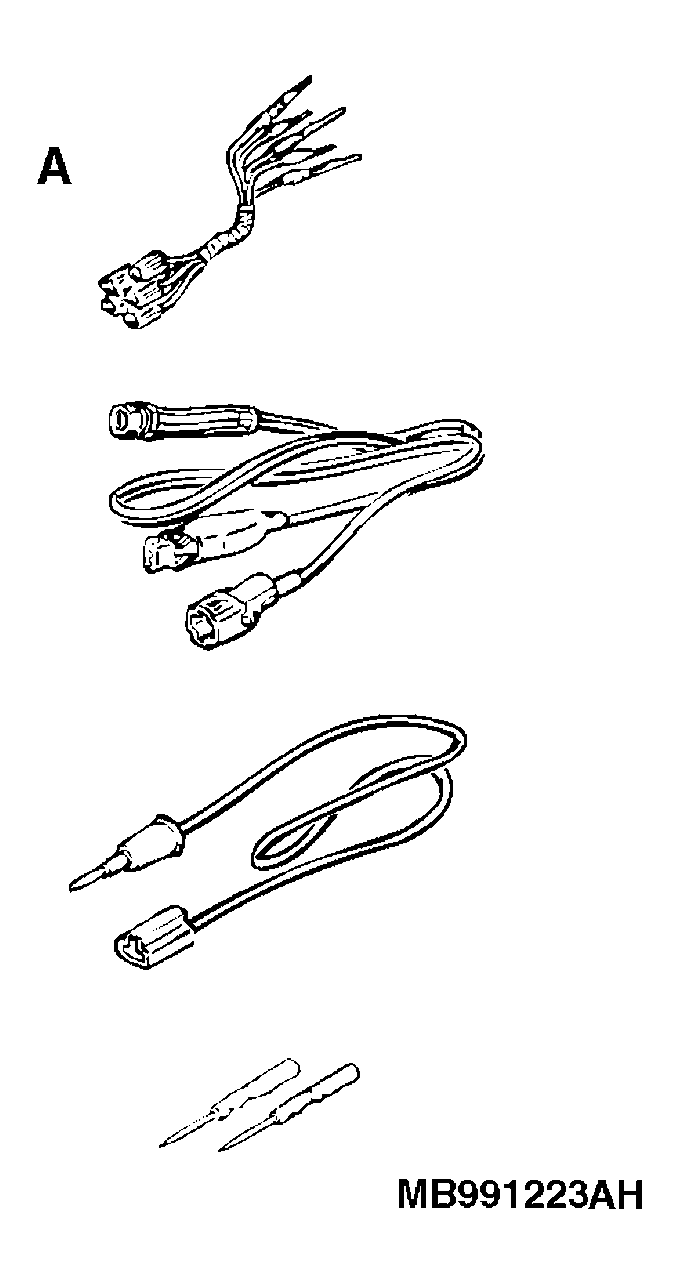

| A | MB991223 Harness set A: MB991219 Inspection harness |
MB991223 MB991709-01 |
Wheel speed sensor output voltage measurement |
