Abs Warning Light Relay Check

TESTER CONNECTION SPECIFIED CONDITION

BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
No applied 2 - 5 Less than 2 ohms
  • Connect terminal 1 to the positive battery terminal
  • Connect terminal 3 to the negative battery terminal
 2 - 5 Open circuit

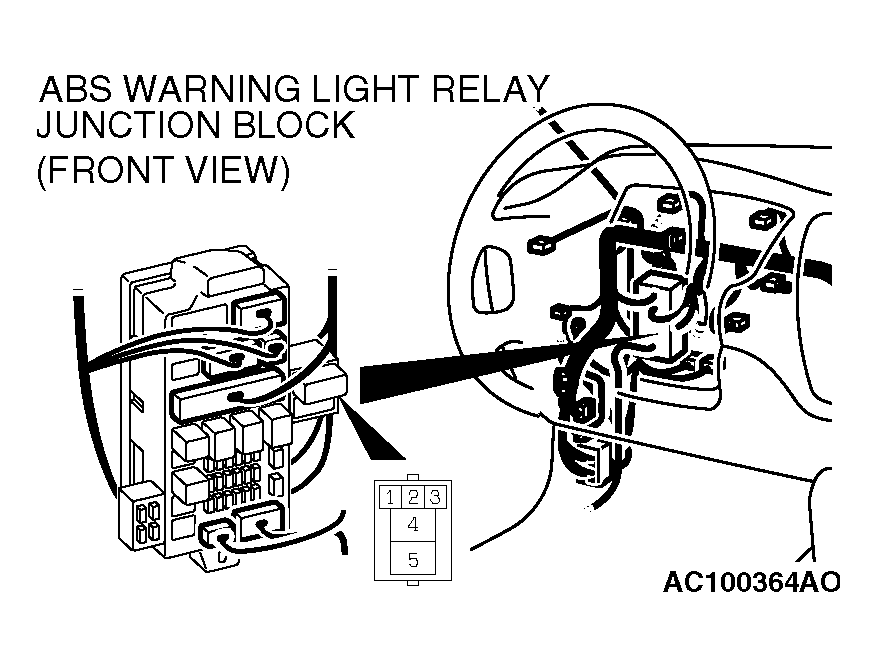

Fig 1: Identifying ABS Warning Light Relay
G04277754Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
