Removal And Installation: Notes

NOTE: The ABS-ECU is integrated in the hydraulic unit assembly.

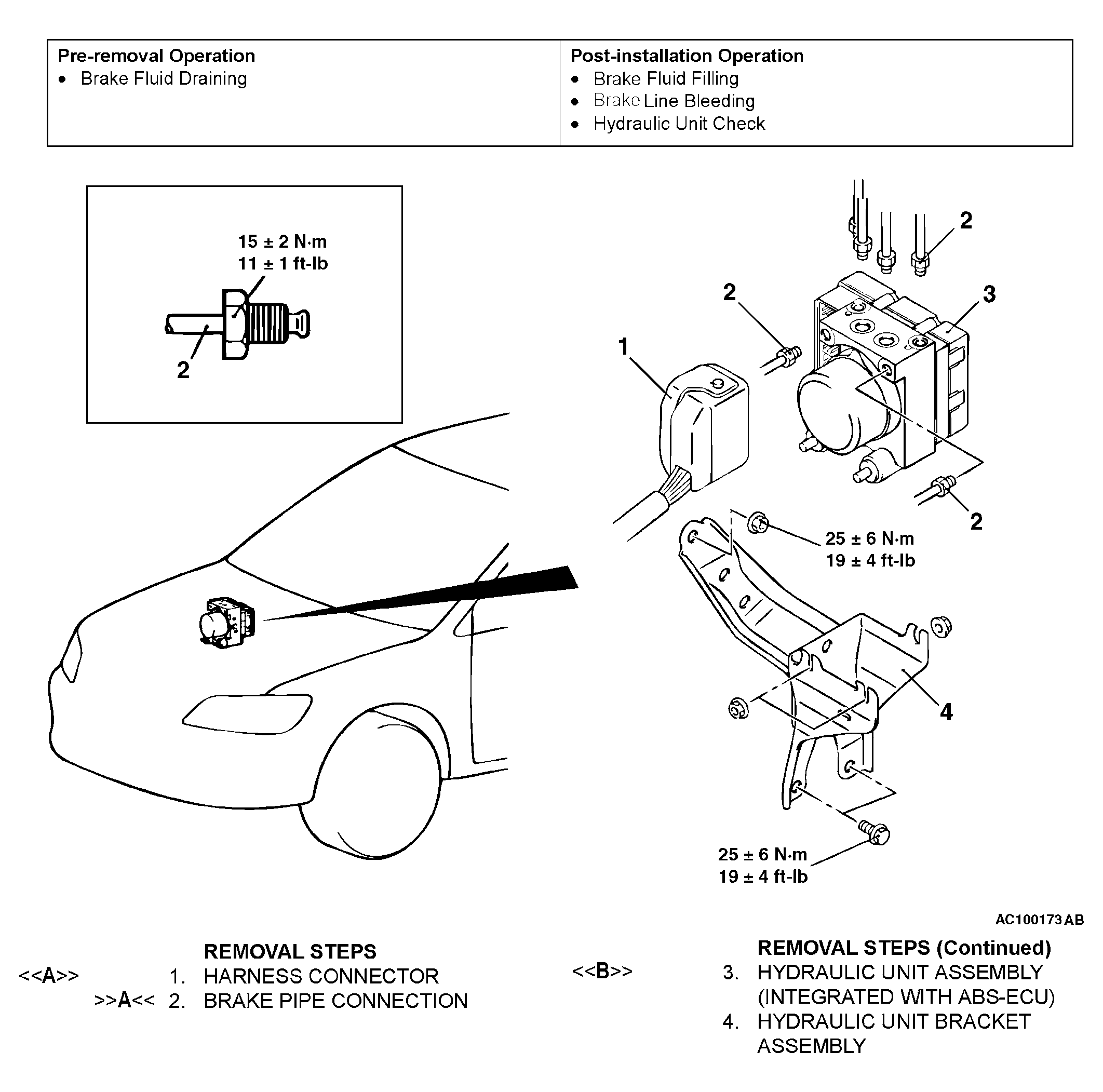

Fig 1: Removing /Installing Hydraulic Unit

G04277755

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
