Home >> Mitsubishi >> 2007 >> Galant ES >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column Shaft Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING: Before removing the air bag module and steering wheel assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE(S) AND CLOCK SPRING .

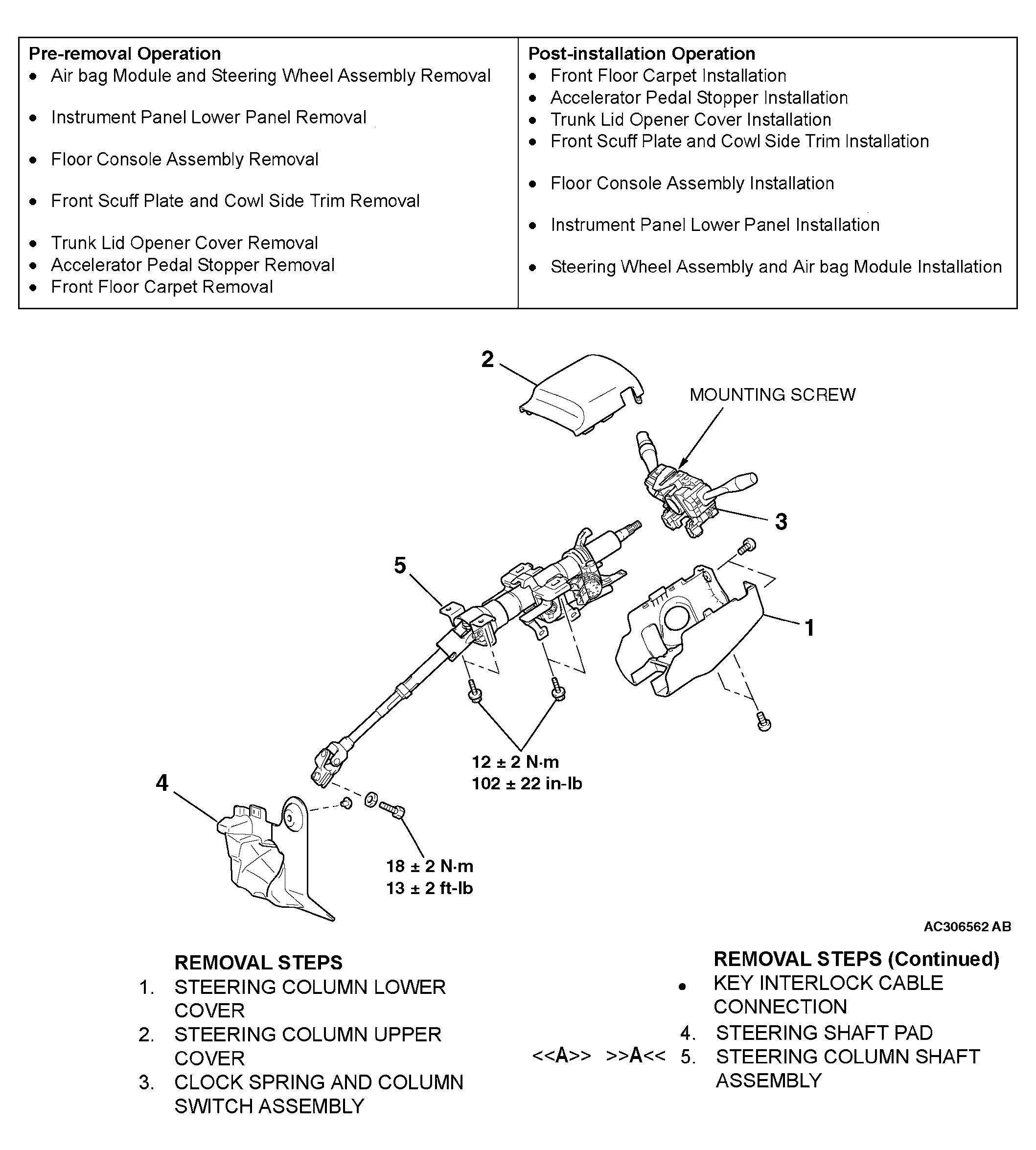

Fig 1: Removing/Installing Steering Column Shaft Assembly (With Torque Specification)
G04255524Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
