Circuit Protection Devices

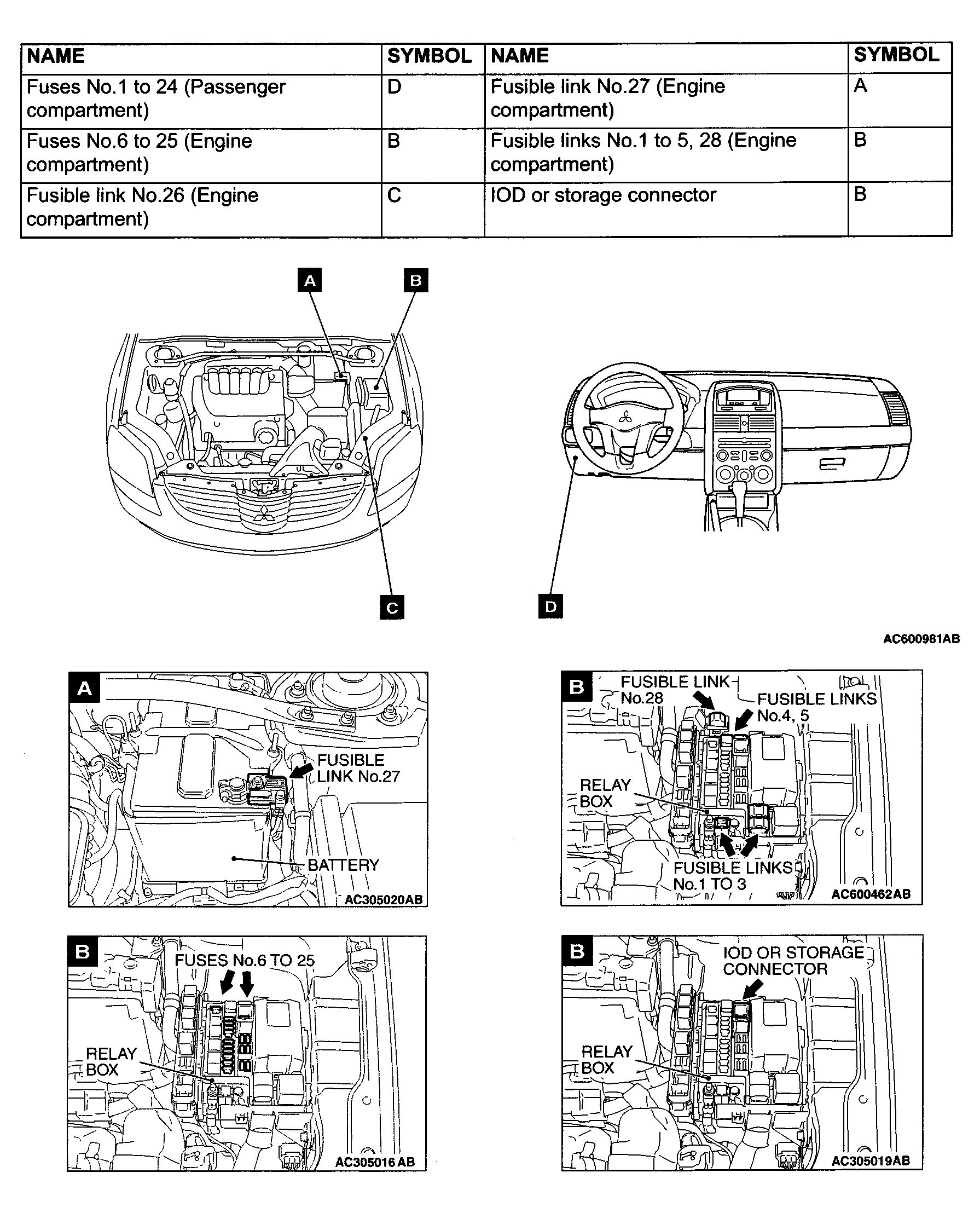

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

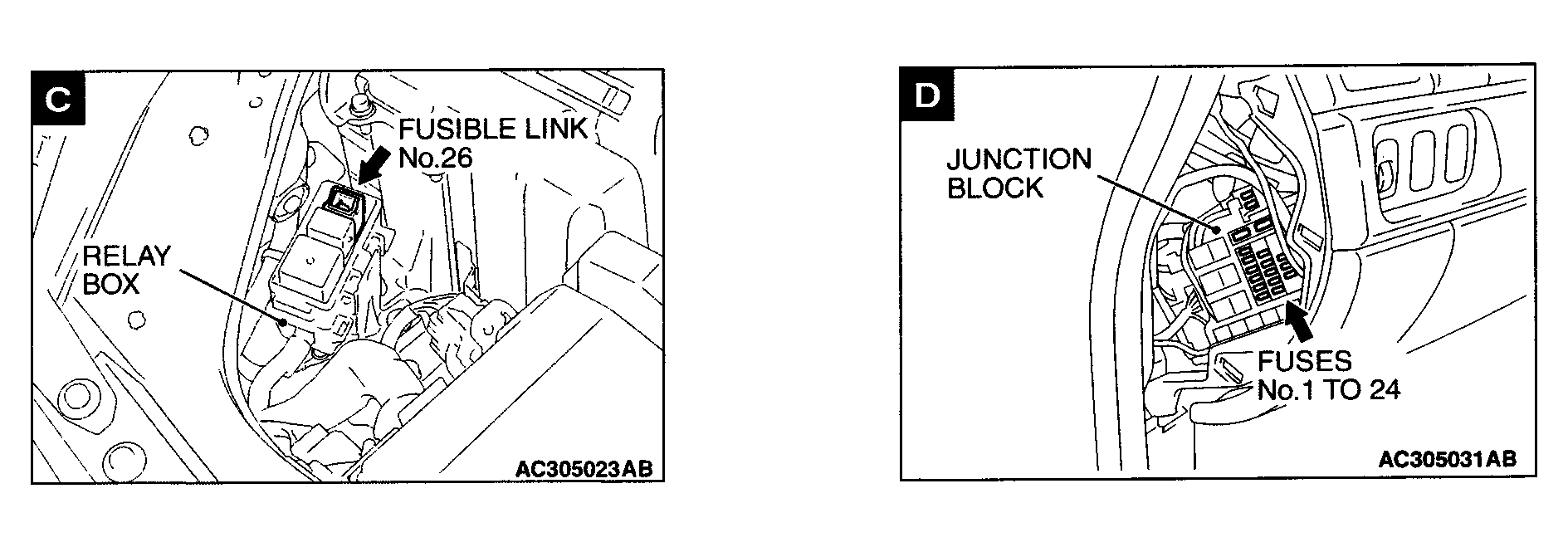

Fusible Link No. 26 In relay box. See Figure.
Fusible Link No. 27 At positive battery terminal connection. See Figure.
Fusible Links No. 1 - 5 & 28 On engine compartment relay box. See Figure.
Junction Block Behind left side of dash. See Figure.
Relay Box Left side of engine compartment. See Figure.
