Inspection Procedure A-1: Communication With The SWS Monitor Kit Is Not Possible: Notes

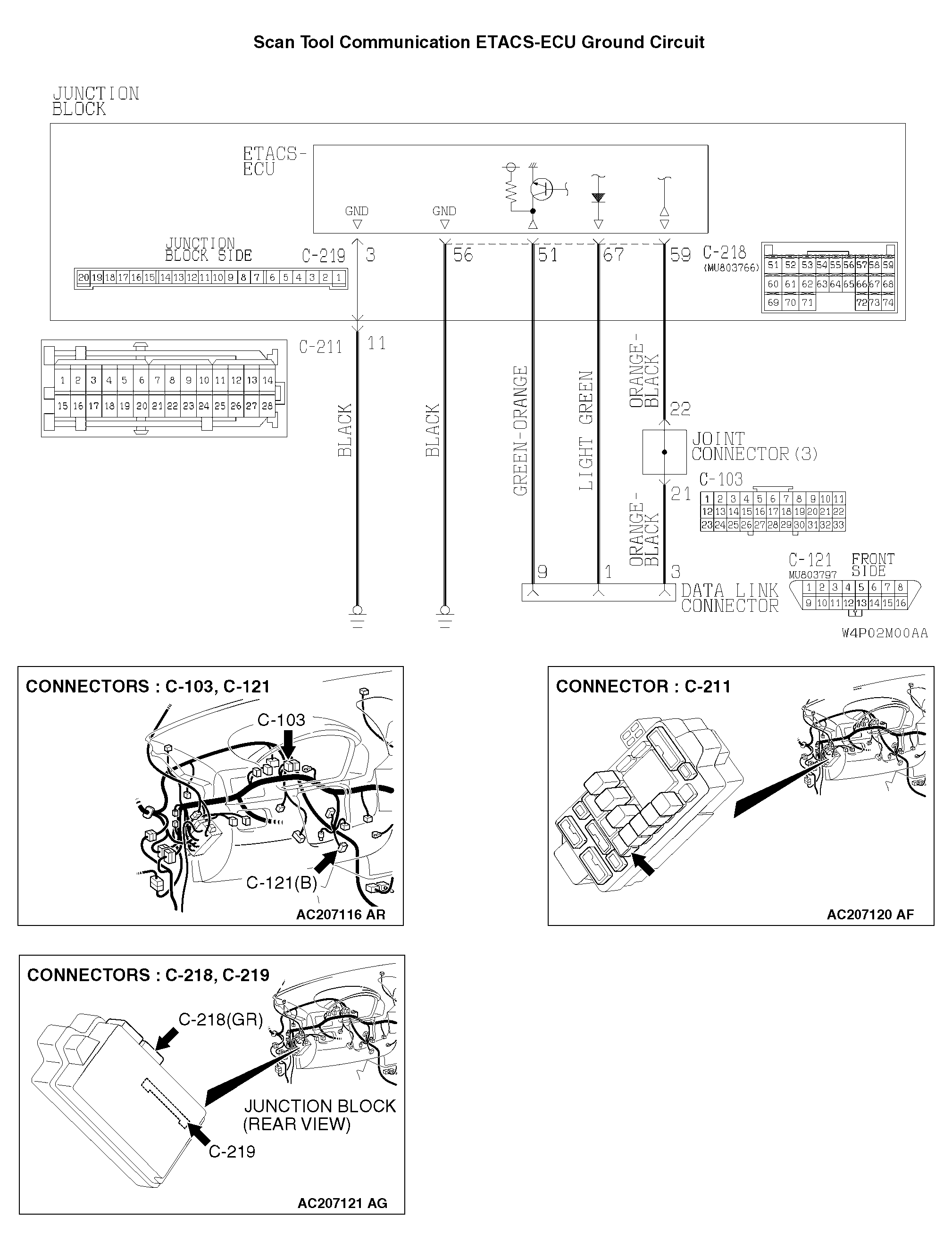

Fig 1: Scan Tool Communication ETACS-ECU Ground Circuit Diagram

G04289939

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
