Vacuum Hose Routing

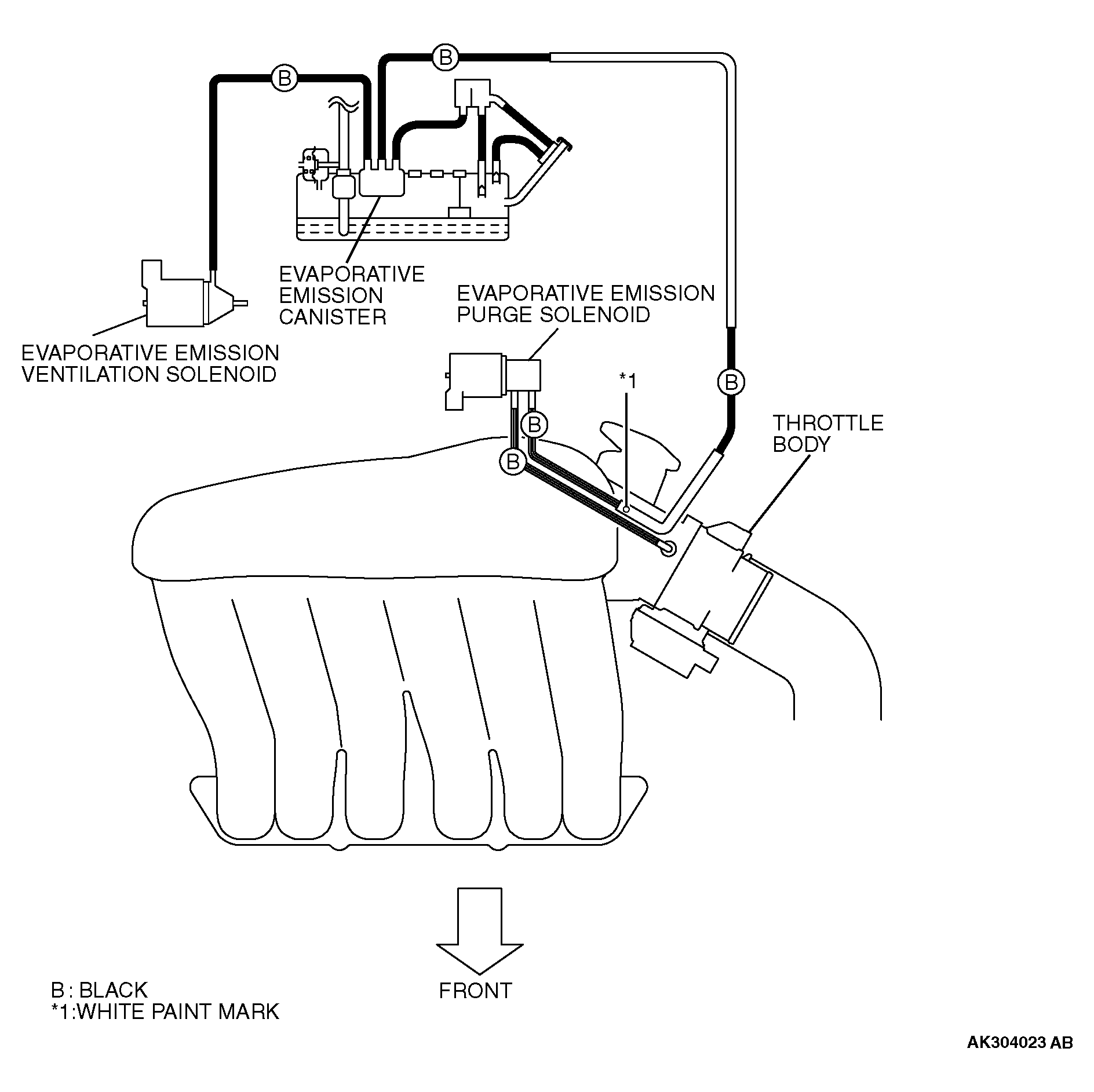

Fig 1: Vacuum Hose Routing Diagram
G04310783Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
