Component Location

For fuse box locations, refer to illustrations below.

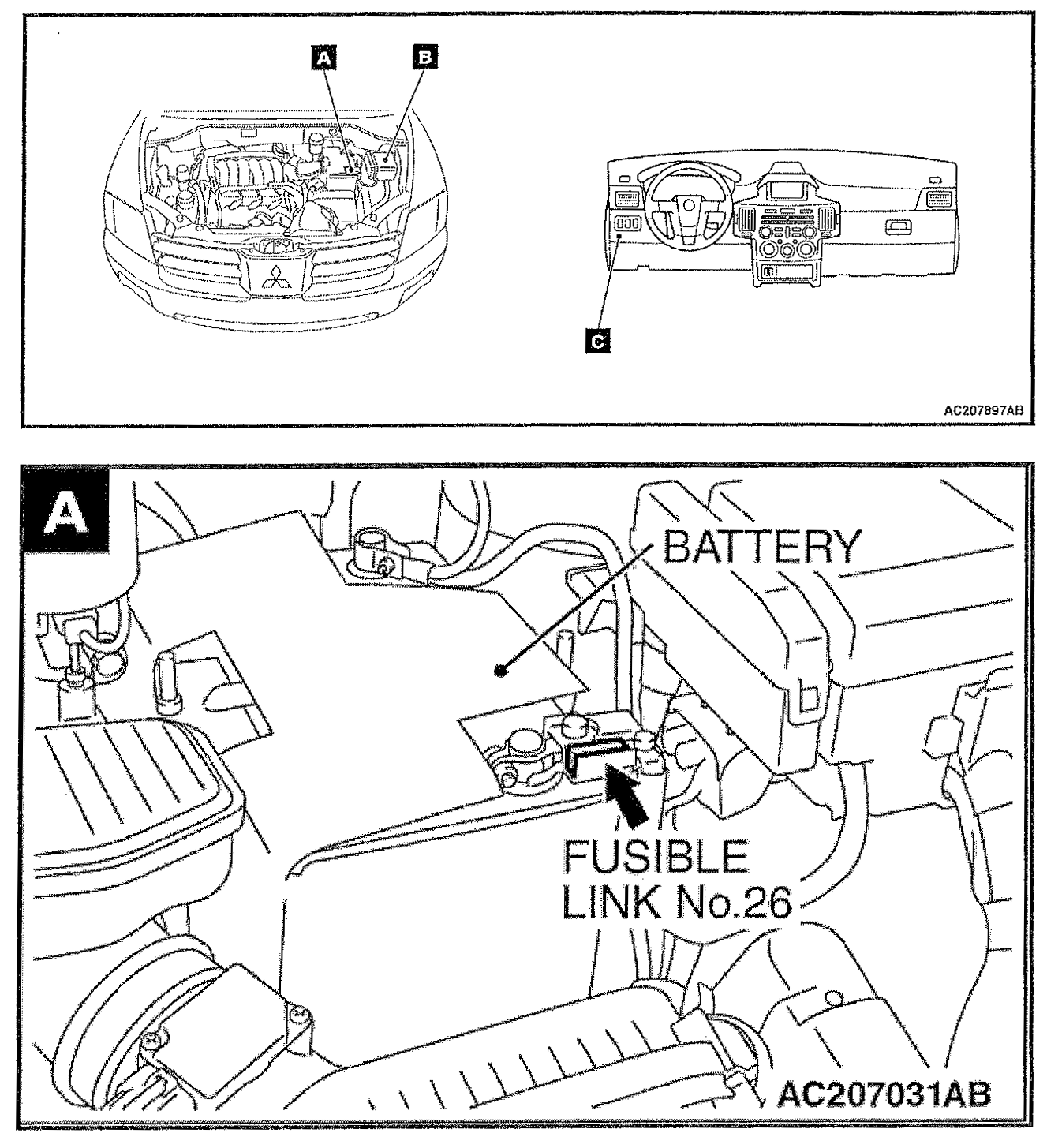

Fig 1: Locating Fuses & Fusible Links - Engine Compartment (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

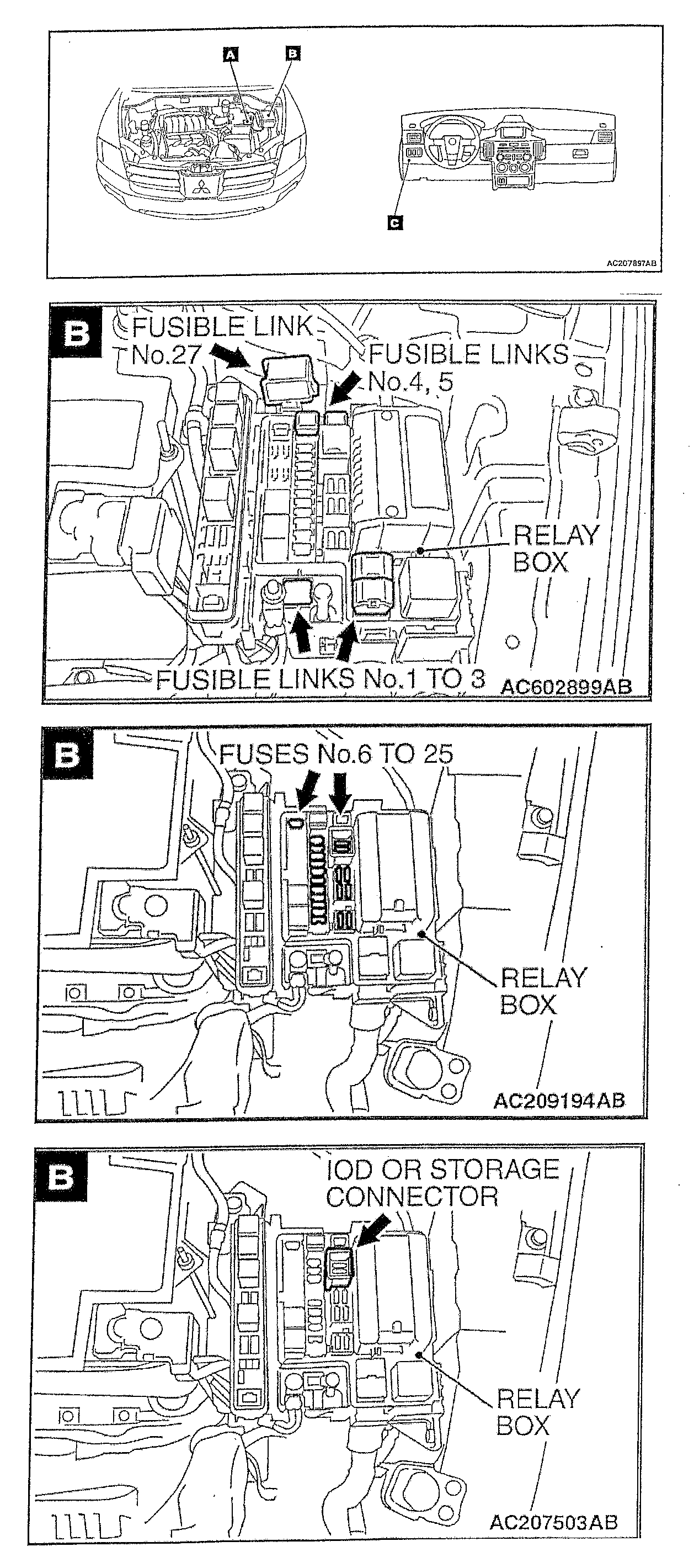

Fig 2: Locating Fuses & Fusible Links - Engine Compartment (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

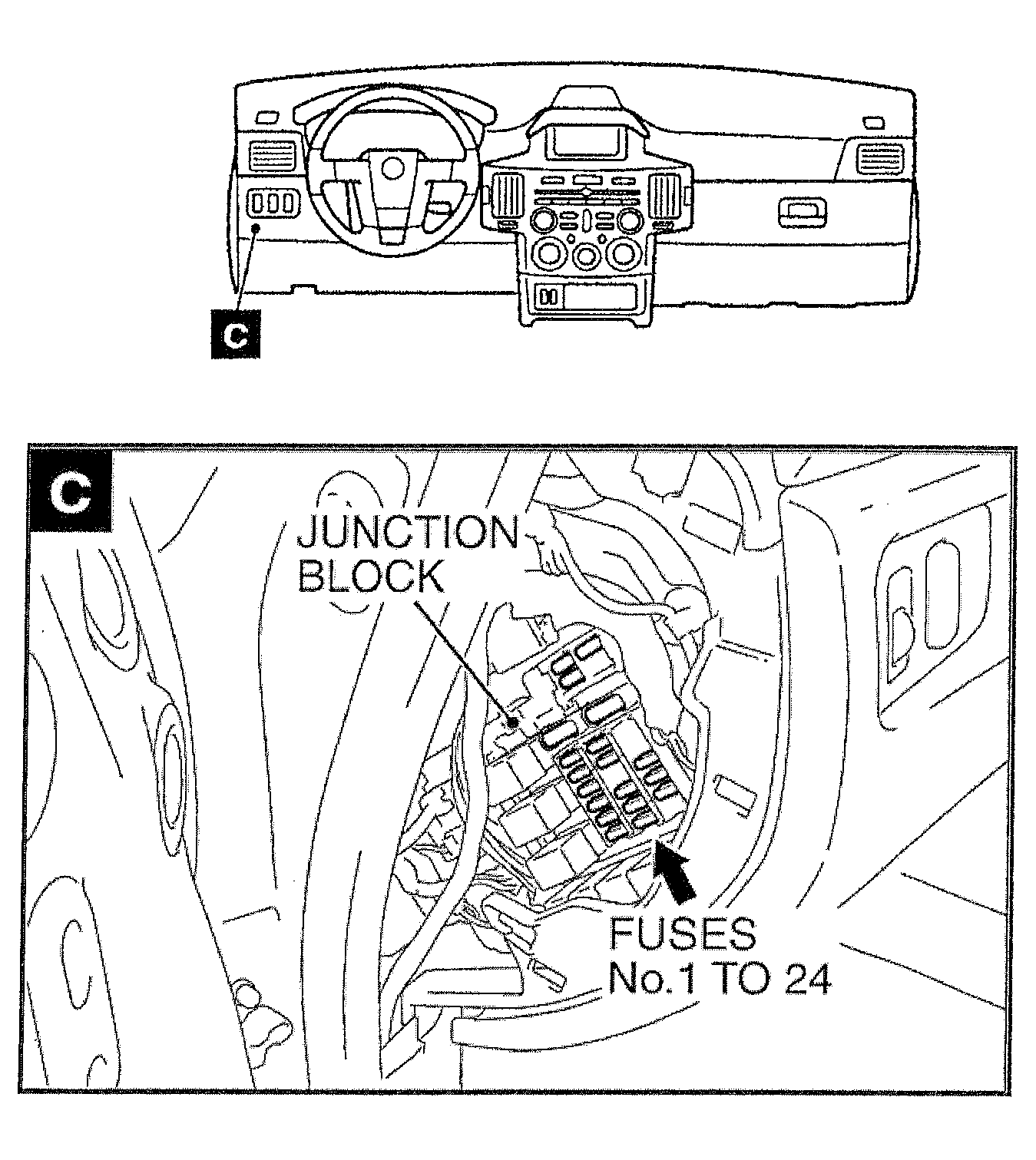

Fig 3: Locating Fuses - Passenger Compartment

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
