Special Tools

SPECIAL TOOLS CHART

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04312223G04312224G04312225G04312226G04312227G04312228G04312229
G04312223G04312224G04312225G04312226G04312227G04312228G04312229
G04312223G04312224G04312225G04312226G04312227G04312228G04312229
G04312223G04312224G04312225G04312226G04312227G04312228G04312229
G04312223G04312224G04312225G04312226G04312227G04312228G04312229
G04312223G04312224G04312225G04312226G04312227G04312228G04312229
G04312223G04312224G04312225G04312226G04312227G04312228G04312229
 1MB991958

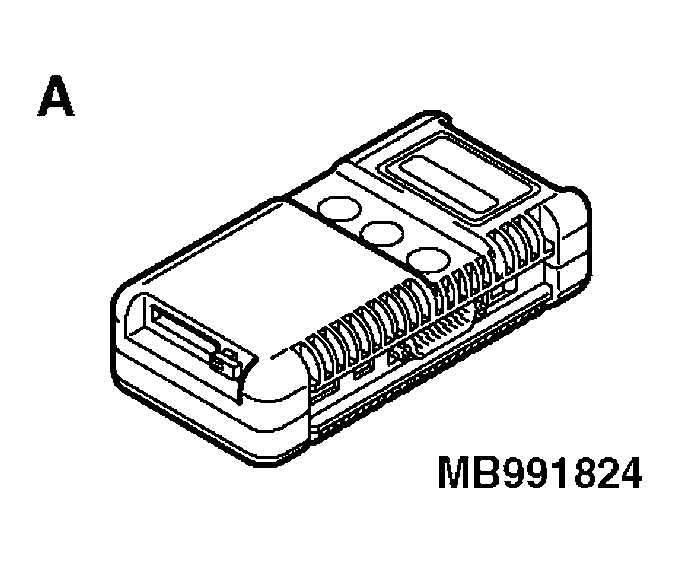

  1. MB991824

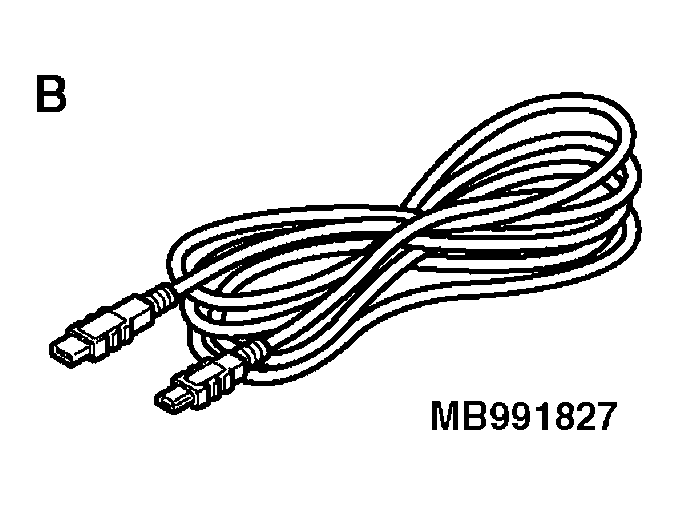

  2. MB991827

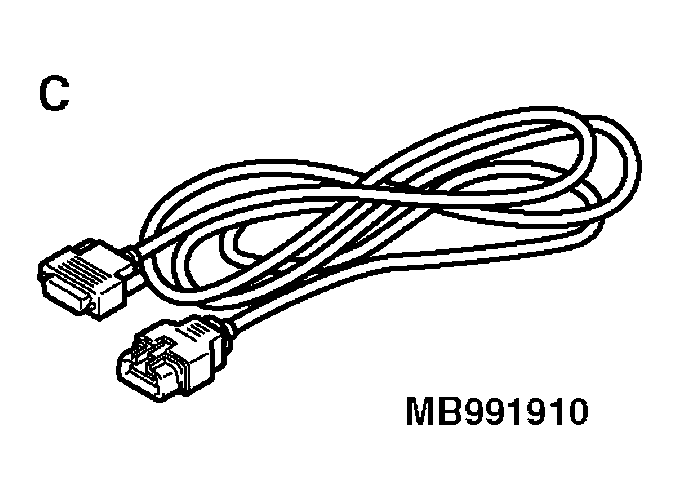

  3. MB991910

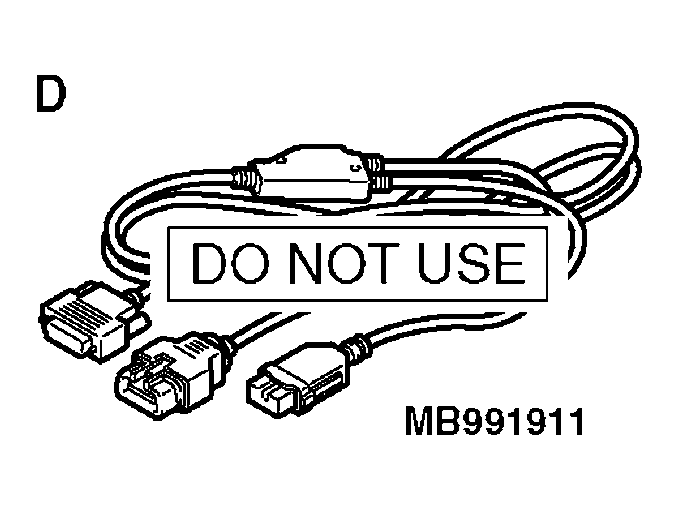

  4. MB991911
  5. MB991914

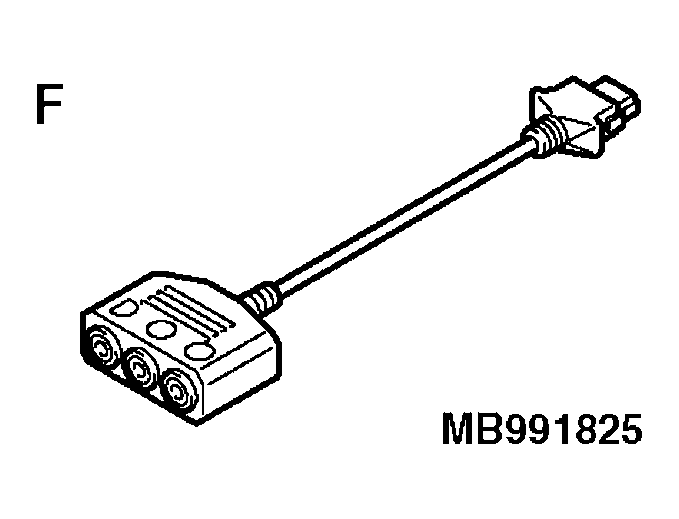

  6. MB991825

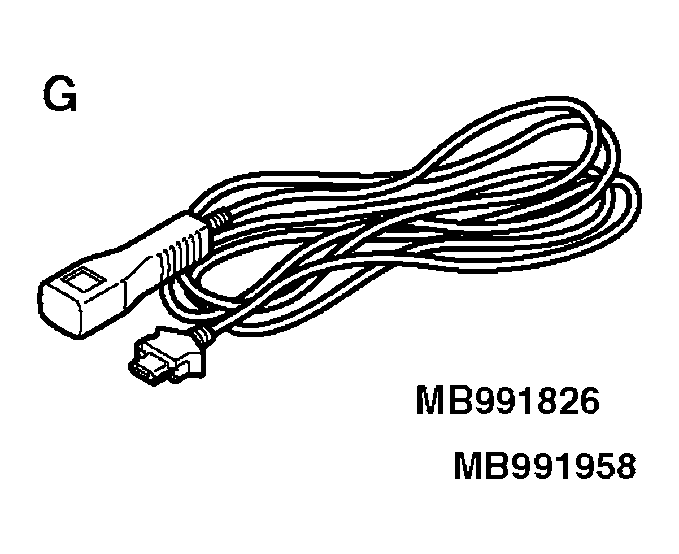

  7. MB991826

M.U.T.-III Sub Assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for DaimlerChrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.
 Checking diagnostic trouble codes
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
G04312230

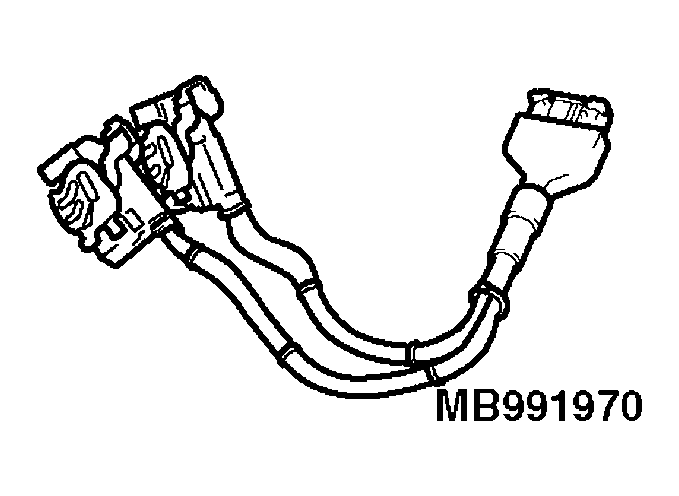

 MB991970 ABS check harness - ABS-ECU terminal voltage measurement < Vehicles without TCL/ASC >
G04312231

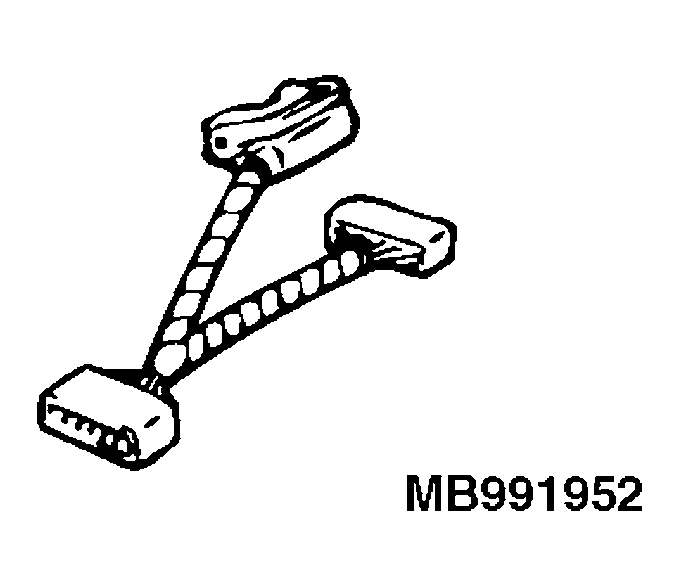

 MB991952 ABS check harness - TCL/ASC-ECU terminal voltage measurement < Vehicles with ASC >
G04312232
 MB991223 Harness set
  1. MB991219 Inspection harness
 General service tools ABS sensor output voltage measurement
G04312233

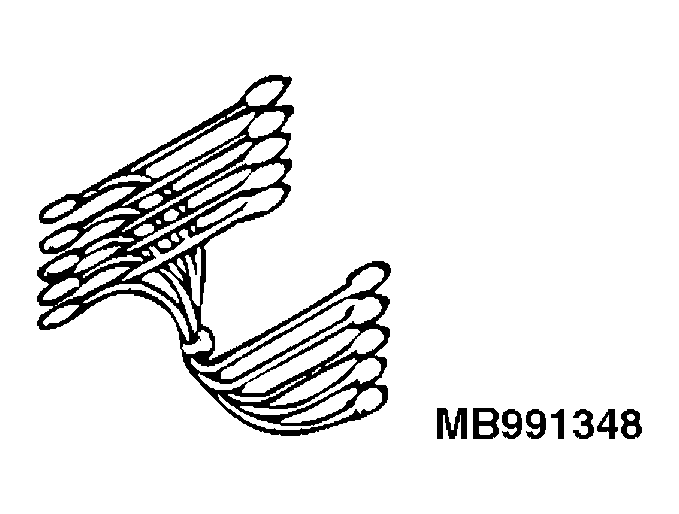

 MB991348 The harness set - For checking of G-sensor < AWD >
