Engine Compartment

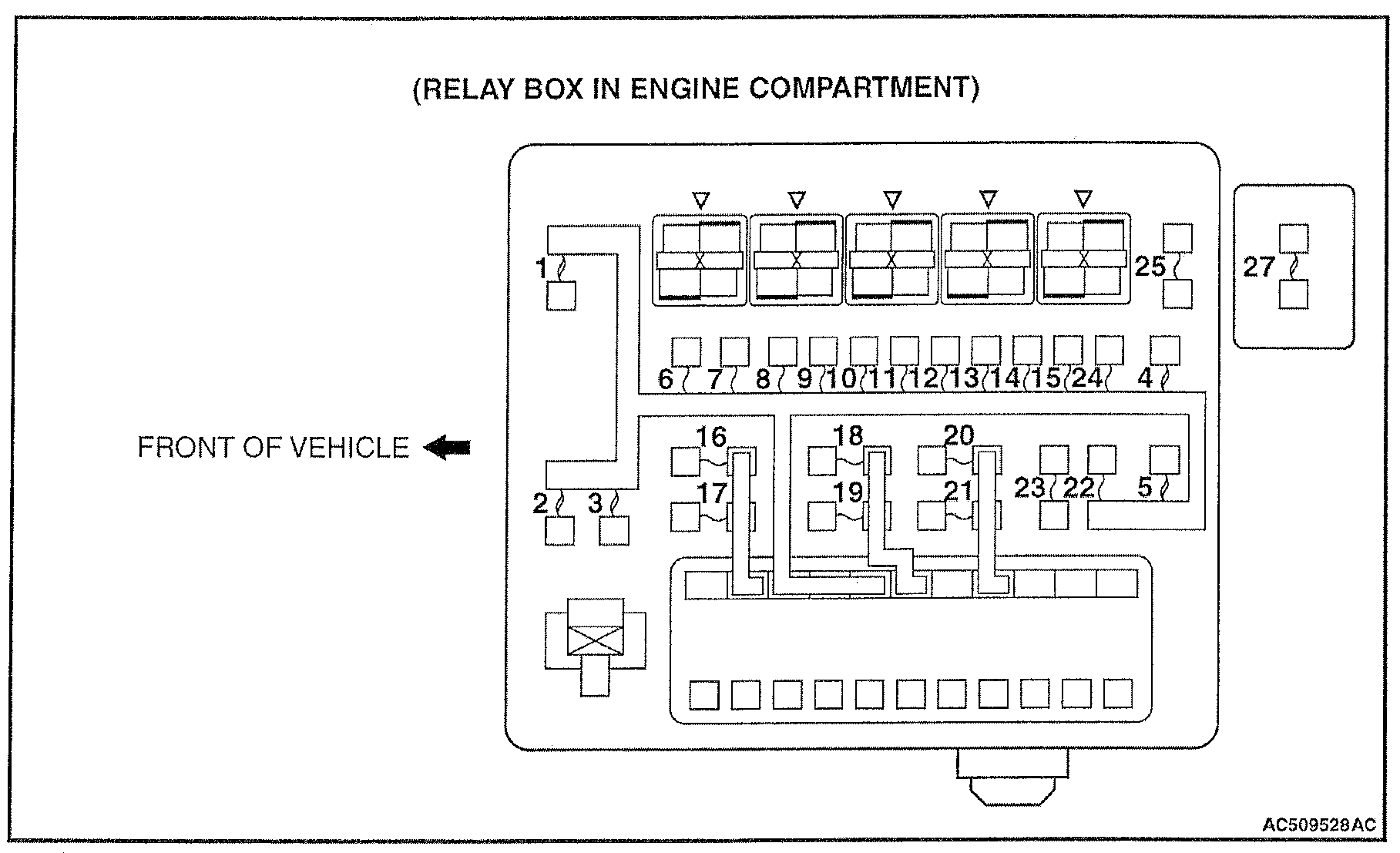

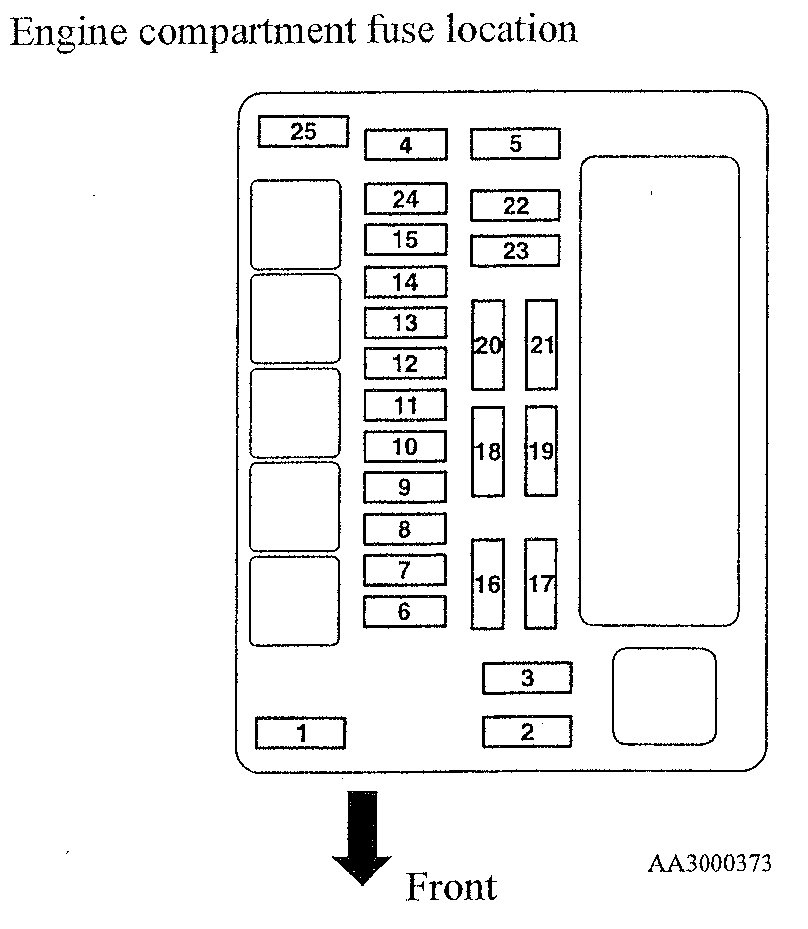

For fuse location and values, refer to illustrations below.
IDENTIFYING FUSES & FUSIBLE LINKS (ENGINE COMPARTMENT)
| NO. | POWER SUPPLY CIRCUIT |
FUSE TYPE | RATED CAPACITY (A) |
FUSE COLOR |
LOAD CIRCUIT |
| 1 | Battery/Generator (Fusible link No.26) | Fusible link | 80A | Black | Fuse Nos.1, 5, 6, 9 and 10 (in junction block) circuit |
| 2 | Battery/Generator (Fusible link No.26) | Fusible link | 50A | Red | Fan control module |
| 3 | Battery/Generator (Fusible link No.26) | Fusible link | 60A | Yellow | ABS/TCL-ECU and ASC/TCL-ECU |
| 4 | Battery/Generator (Fusible link No.26) | Fusible link | 40A | Green | Ignition switch circuit |
| 5 | Battery/Generator (Fusible link No.26) | Fusible link | 30A | Pink | Fuse Nos.3 and 4 (in junction block circuit), front power window motor, power seat assembly, power window main switch and rear power window motor |
| 6 | Battery/Generator (Fusible link No.26) | Fuse | 15A | Blue | Fog light and fog light relay |
| 7 | Battery/Generator (Fusible link No.26) | Fuse | 20A | Yellow | Heated seat assembly and heated seat switch |
| 8 | Battery/Generator (Fusible link No.26) | Fuse | 15A | Blue | Horn and horn relay |
| 9 | Battery/Generator (Fusible link No.26) | Fuse | 20A | Yellow | Camshaft position sensor, crankshaft position sensor, evaporative emission purge solenoid, evaporative emission ventilation solenoid, exhaust gas recirculation valve, fan control relay, heated oxygen sensor, injector, mass airflow sensor, MFI relay, powertrain control module and throttle actuator control motor relay |
| 10 | Battery/Generator (Fusible link No.26) | Fuse | 10A | Red | A/C compressor assembly and A/C-ECU |
| 11 | Battery/Generator (Fusible link No.26) | Fuse | 15A | Blue | ABS/TCL-ECU, ASC/TCL-ECU, high-mounted stoplight, immobilizer-ECU, powertrain control module, rear combination light and spare connector (for trailer lights) |
| 12 | Battery/Generator (Fusible link No.26) | Fuse | 20A | Yellow | Spare connector (for trailer lights) |
| 13 | Battery/Generator (Fusible link No.26) | Fuse | 7.5A | Brown | Generator |
| 14 | Battery/Generator (Fusible link No.26) | Fuse | 10A | Red | ETACS-ECU |
| 15 | Battery/Generator (Fusible link No.26) | Fuse | 20A | Yellow | A/T control solenoid valve and powertrain control module |
| 16 | Front-ECU (Headlight relay: High) | Fuse | 10A | Red | Headlight (RH) |
| 17 | Front-ECU (Headlight relay: High) | Fuse | 10A | Red | Headlight (LH) |
| 18 | Front-ECU (Headlight relay: Low) | Fuse | 10A | Red | Headlight (RH) |
| 19 | Front-ECU (Headlight relay: Low) | Fuse | 10A | Red | Headlight (LH) |
| 20 | Front-ECU (Taillight relay) | Fuse | 7.5A | Brown | A/C-ECU, air bag off indicator light (passengers side), combination meter, floor console rear A/C switch assembly, fog light switch, front combination light (RH), glove box light, hazard warning light switch, heated seat switch, multi-center display unit, radio, CD player, CD changer, rear combination light (RH), rheostat, seat belt warning light (passengers side) and TCL switch |
| 21 | Front-ECU (Taillight relay) | Fuse | 7.5A | Brown | Front combination light (LH), license plate light, rear combination light (LH) and spare connector (for trailer lights) |
| 22 | Battery/Generator (Fusible link No.26) | Fuse | 15A | Blue | A/C-ECU, column switch, combination meter, ETACS-ECU, front-ECU, key reminder switch, multi-center display unit, navigation unit, radio, CD player, CD changer, theft-alarm indicator, TPMS receiver and vanity mirror light |
| 23 | Ignition switch (ACC) | Fuse | 10A | Red | A/C-ECU, ETACS-ECU, multi-center display unit, radio, CD player and CD changer |
| 24 | Battery/Generator (Fusible link No.26) | Fuse | 15A | Blue | Fuel pump module |
| 25 | Ignition switch (ACC) | Fuse | 30A | Green | Front-ECU and windshield wiper motor |

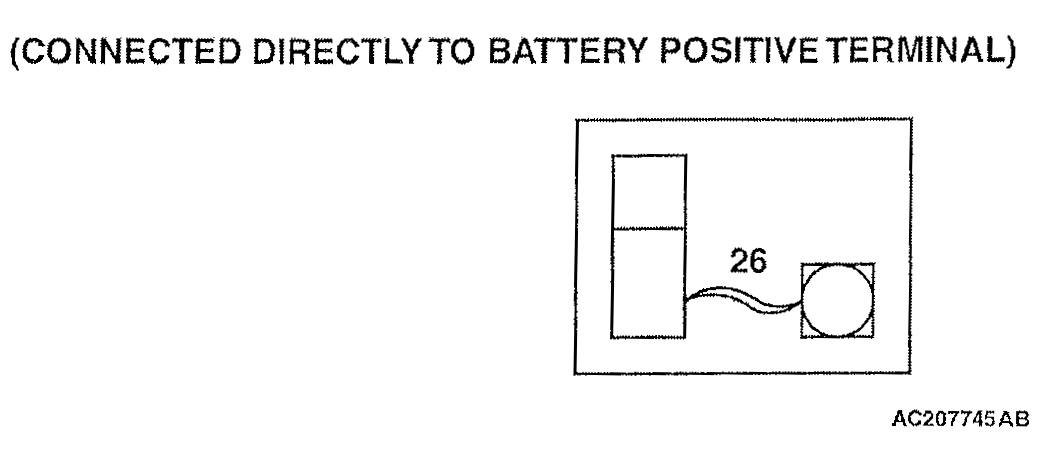

| 26 | Generator | Fusible link | 120A | - | Battery, front-ECU, fusible link Nos.1, 2, 3, 4 and 5 and fuse Nos. 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 and 24 (in relay box) |
| 27 | Battery/Generator (Fusible link No.26) | Fusible link | 40A | Green | Fuse No.3 (in junction block circuit) |
Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
The table above shows the main equipment corresponding to each fuse.
