Removal And Installation

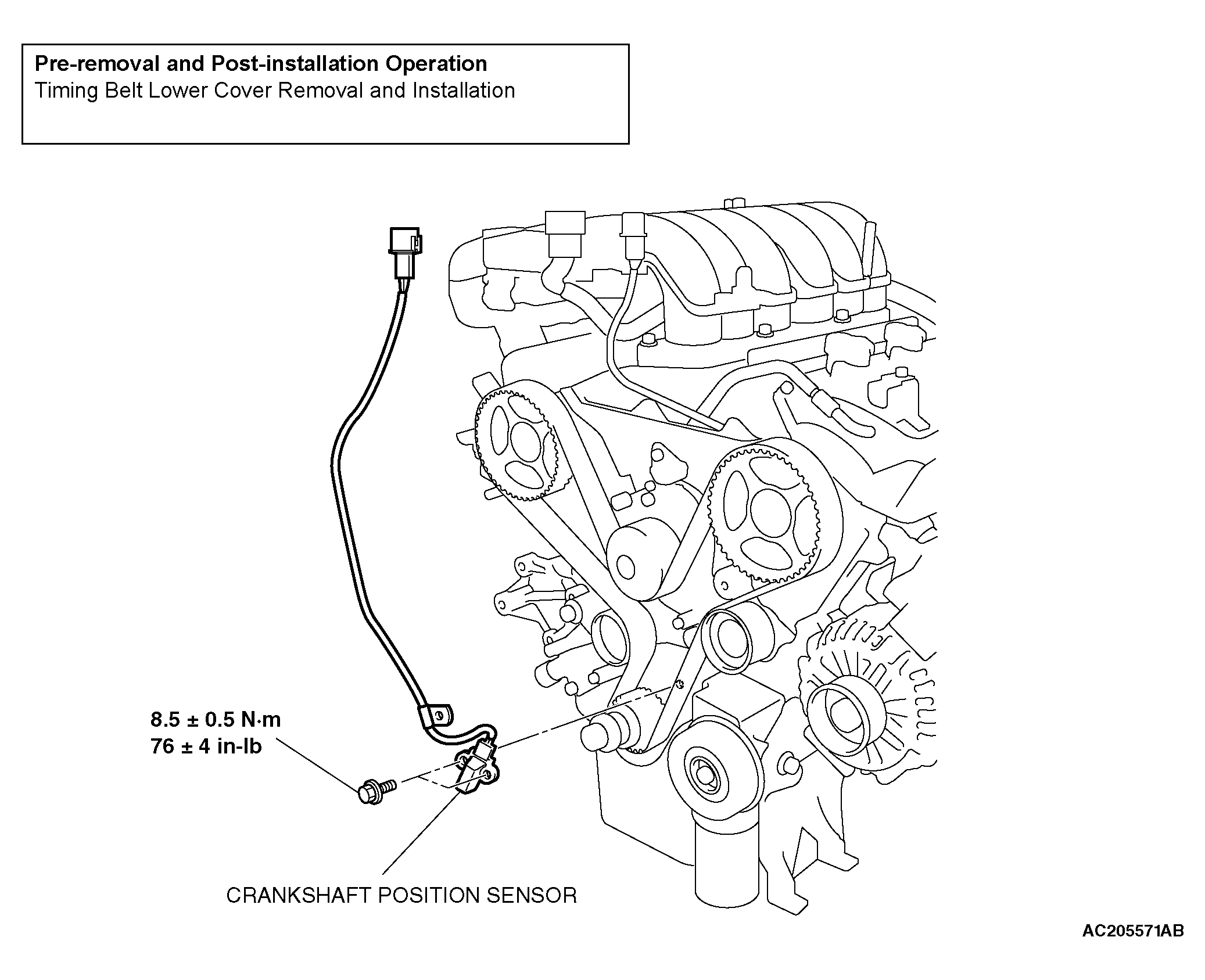

Fig 1: Crankshaft Position Sensor With Torque Specifications
G04310649Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
