Removal And Installation: Notes

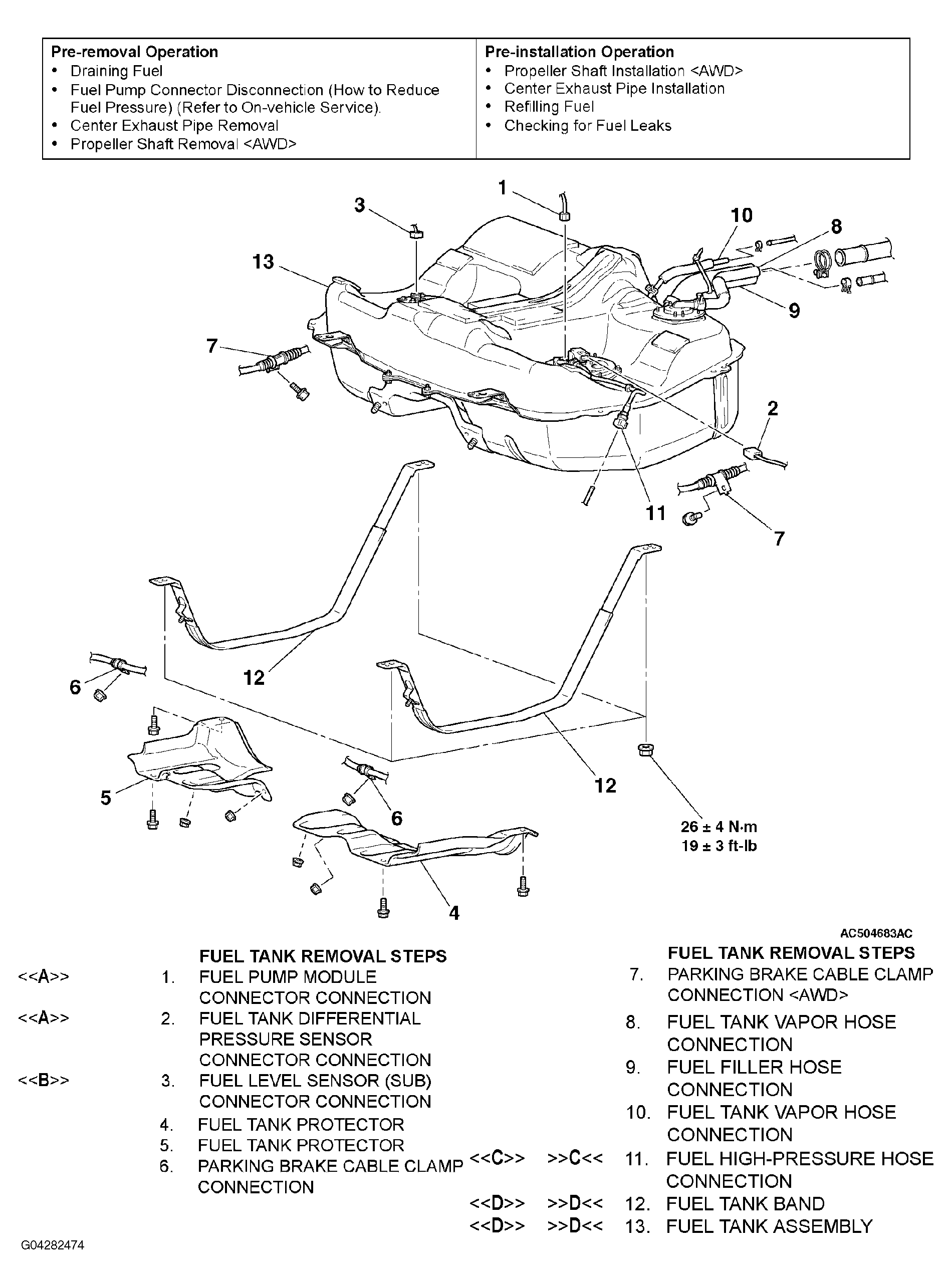

Fig 1: Exploded View Of Fuel Tank With Torque Specifications (1 Of 3)
G04282474Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

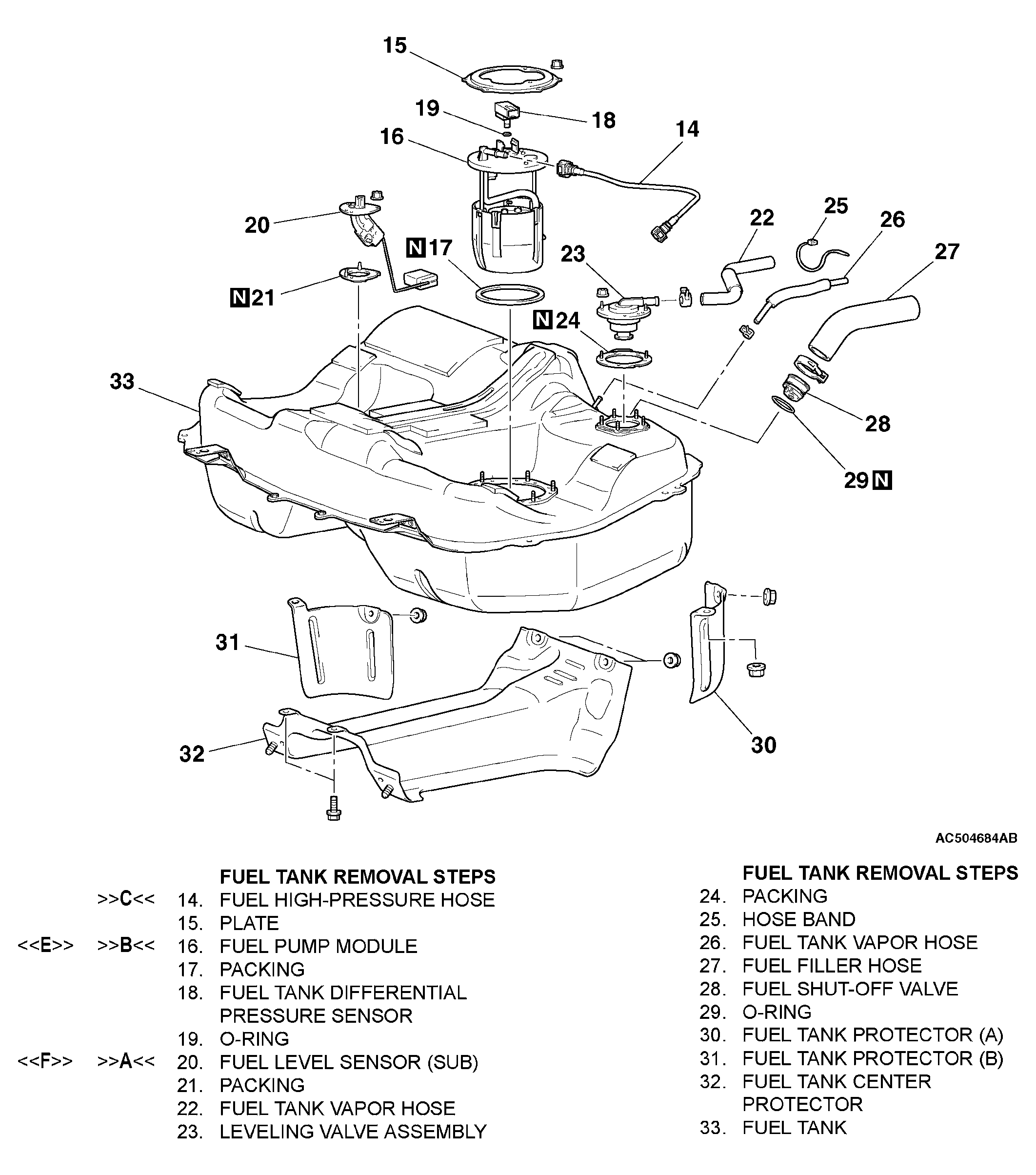

Fig 2: Exploded View Of Fuel Tank (2 Of 3)
G04282475Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Exploded View Of Fuel Tank (3 Of 3)
G04282476Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
