Engine Oil Replacement

  1. Start the engine and allow it to warm up until the temperature of the coolant reaches 80 - 90°C (176 - 194°F).
    WARNING: Use care as oil could be hot.
  2. Remove the engine oil filler cap.
  3. Remove the drain plug to drain oil.
  4. Install a new drain plug gasket so that it faces in the direction shown in the illustration, and then tighten the drain plug to the specified torque.

    Tightening torque: 39 +/- 5 N.m (29 +/- 3 ft-lb)

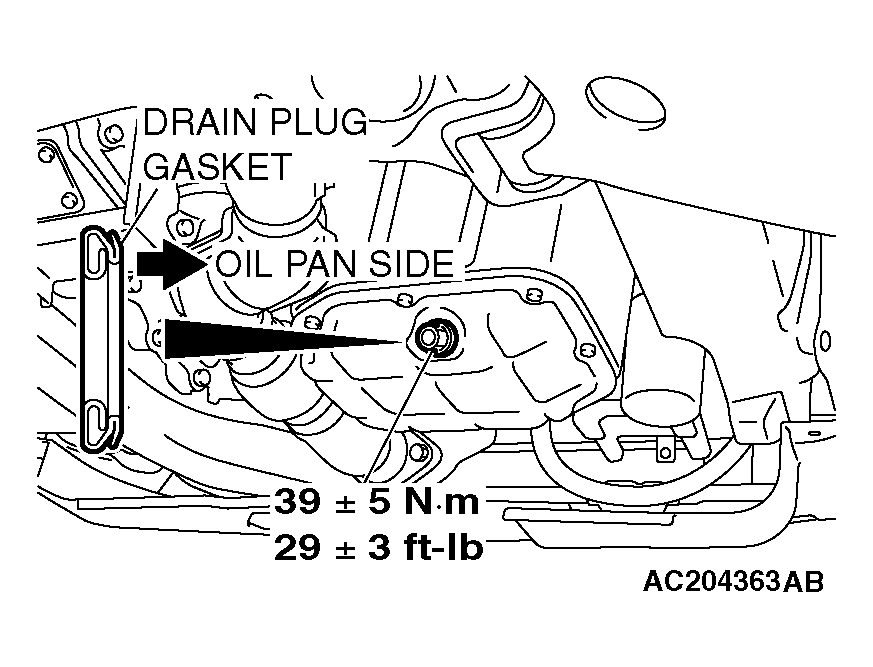

    Fig 1: Drain Plug And Gasket With Torque Specifications
    G04280733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Refill the specified quantity of oil.

    Specified Engine Oil: Engine oils conforming ILSAC GF-3 certification or the API classification SL, SL/CF

    Total quantity: 4.3 dm 3  (4.5 quarts)

  6. Install the engine oil filler cap.
  7. Check oil level.
    Fig 2: Identifying Engine Oil API Classification Gauge
    G04280734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
