Removal And Installation: Notes

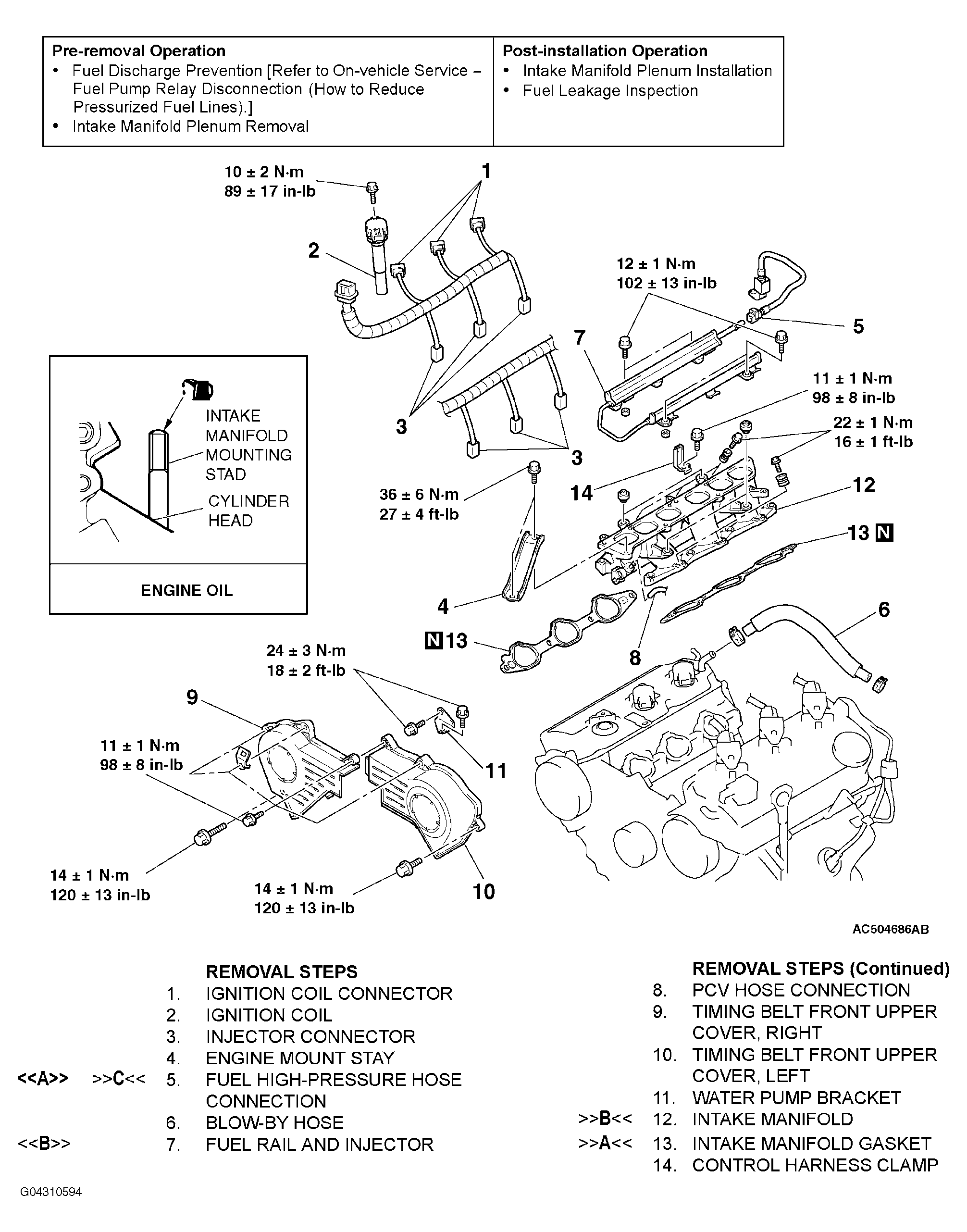

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
G04310594Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
