Inspection Procedure D-2: Power Windows: The Power Window Timer Function Does Not Work Normally: Notes

NOTE: This troubleshooting procedure requires use of scan tool MB991958 and SWS monitor kit MB991813. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR  ."

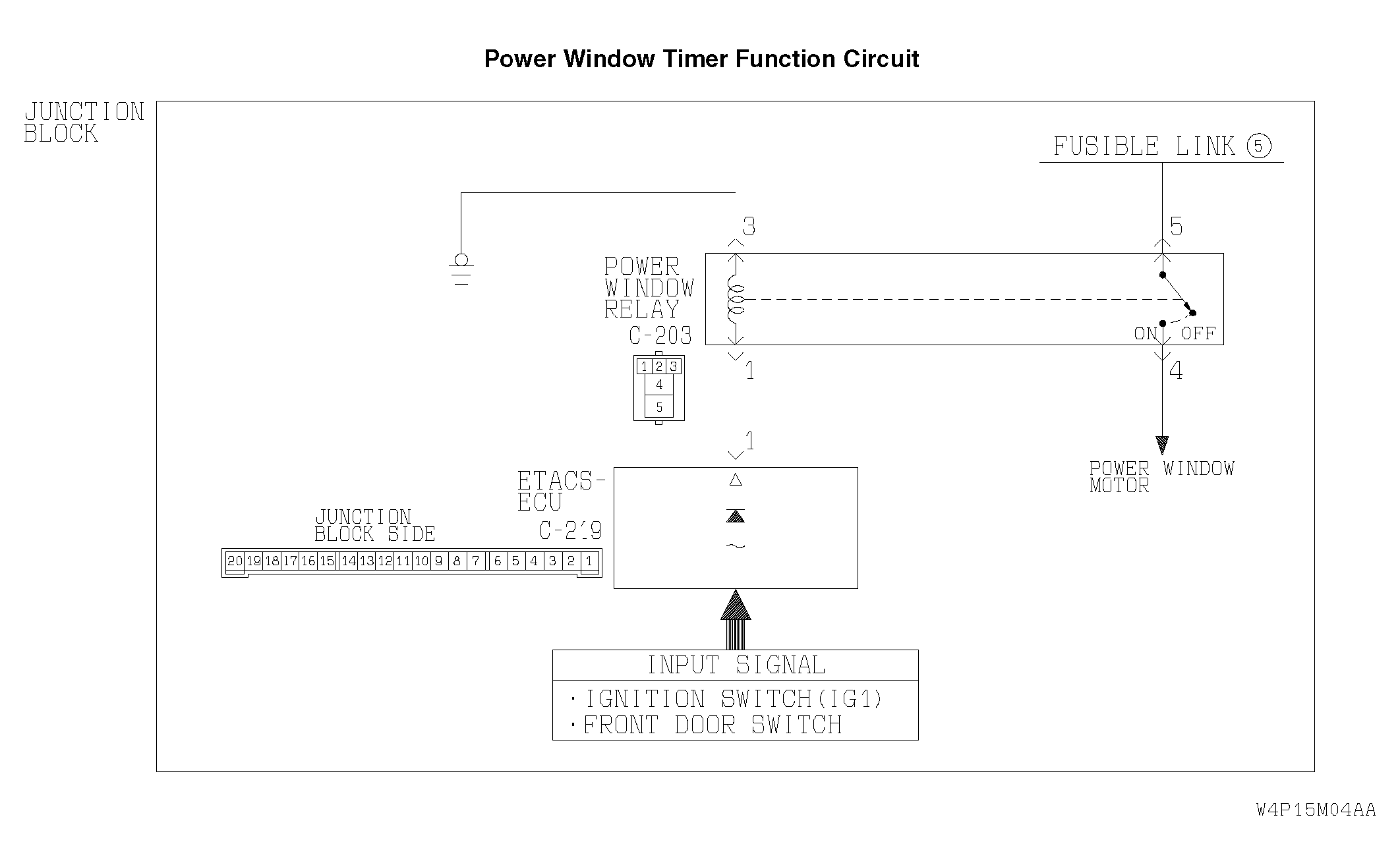

Fig 1: Power Window Timer Function Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
