Simplified Wiring System
>>
Symptom Procedures
>>
Keyless Entry System
>>
General Circuit Diagram For The Keyless Entry System
General Circuit Diagram For The Keyless Entry System

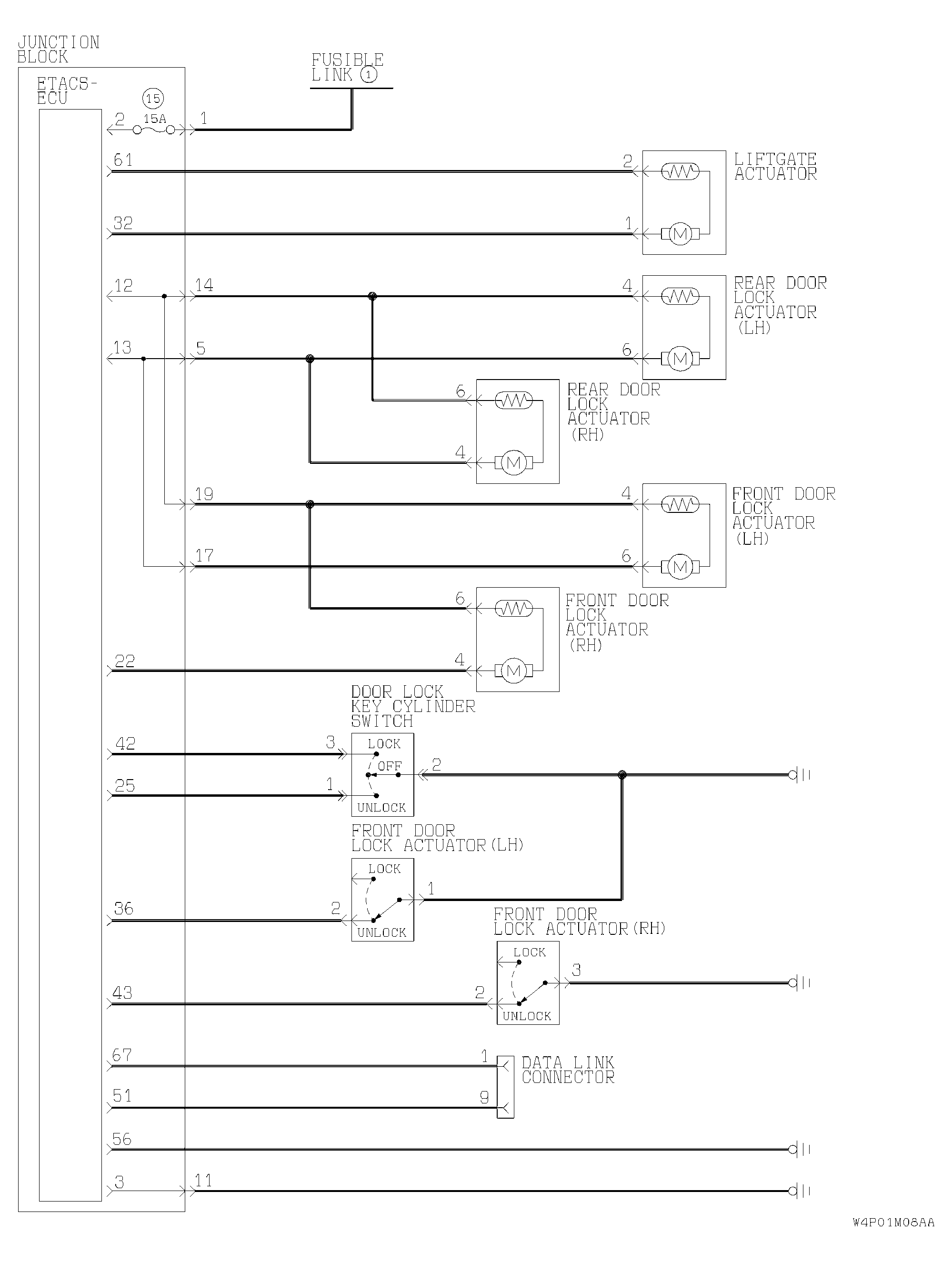

Fig 1: Keyless Entry System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
