Auto-Cruise Control Switch Connector End View

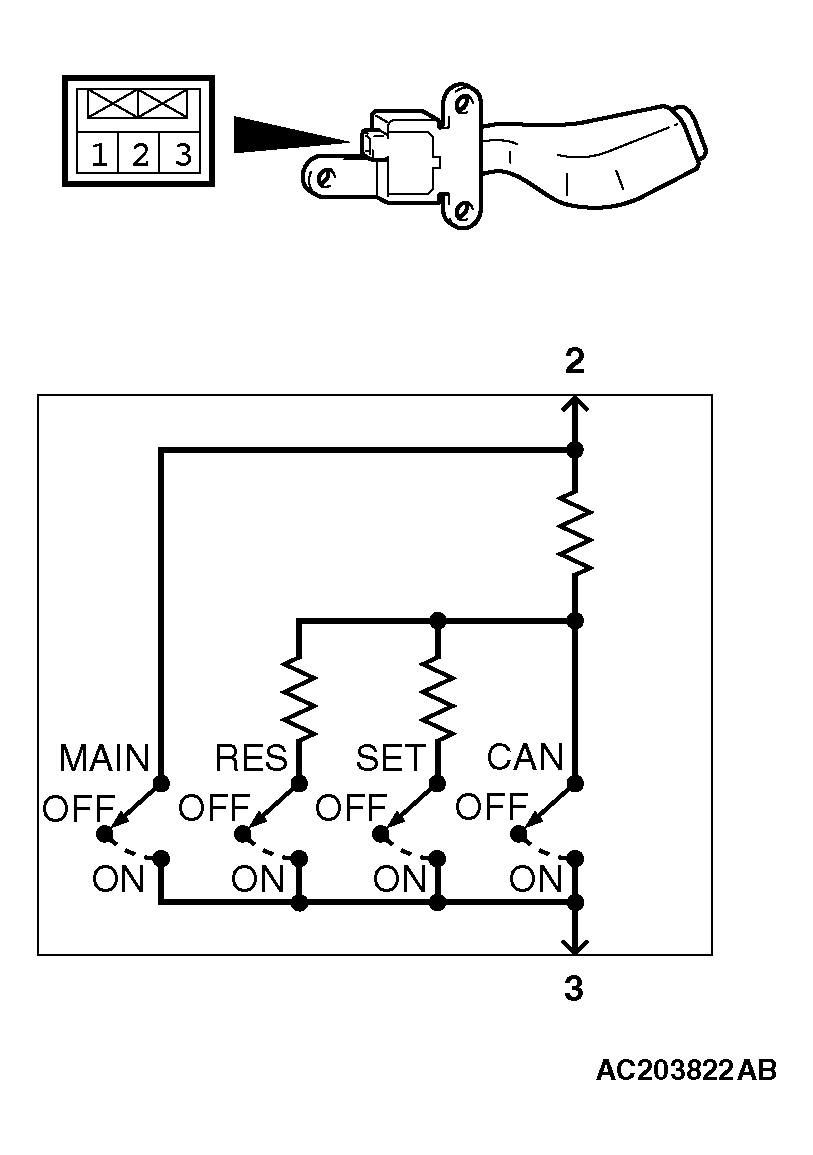

Fig 1: Auto-Cruise Control Switch Connector End View

G04310778

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
