G And Yaw Rate Sensor

This sensor is mounted under the center console, and detects lateral acceleration, longitudinal acceleration and steering angular velocity of the vehicle.

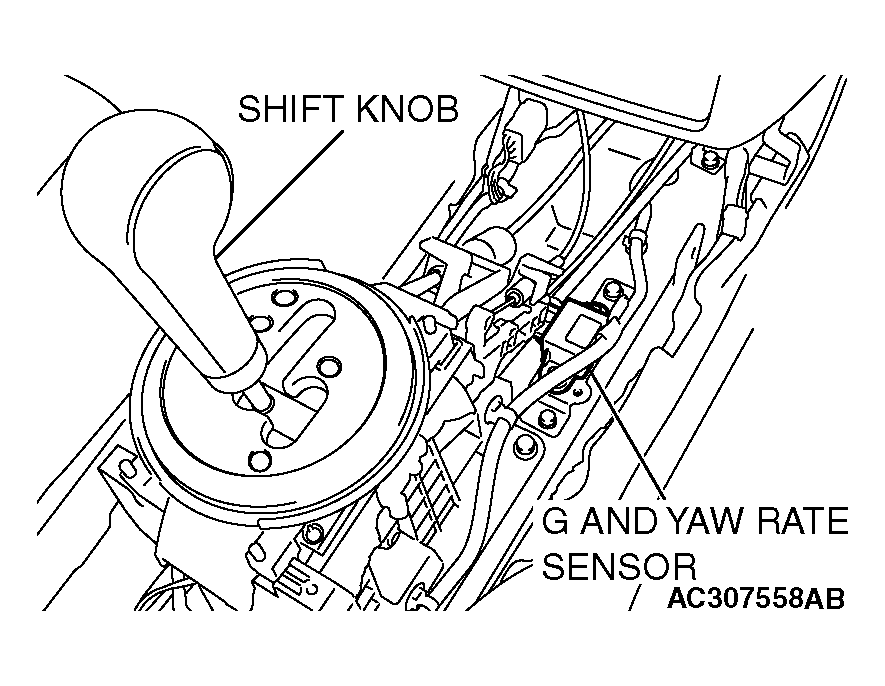

Fig 1: Identifying G & Yaw Rate Sensor
G04312311Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
