Sunroof Switch Continuity Check

TESTING SUNROOF SWITCH

SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
Open 4 - 5 Less than 2 ohms
Off 3 - 4, 3 - 5, 3 - 6, 4 - 5, 4 - 6, 5 - 6 Open circuit
Tilt-up 3 - 4 Less than 2 ohms
Close/Tilt-down 4 - 6 Less than 2 ohms

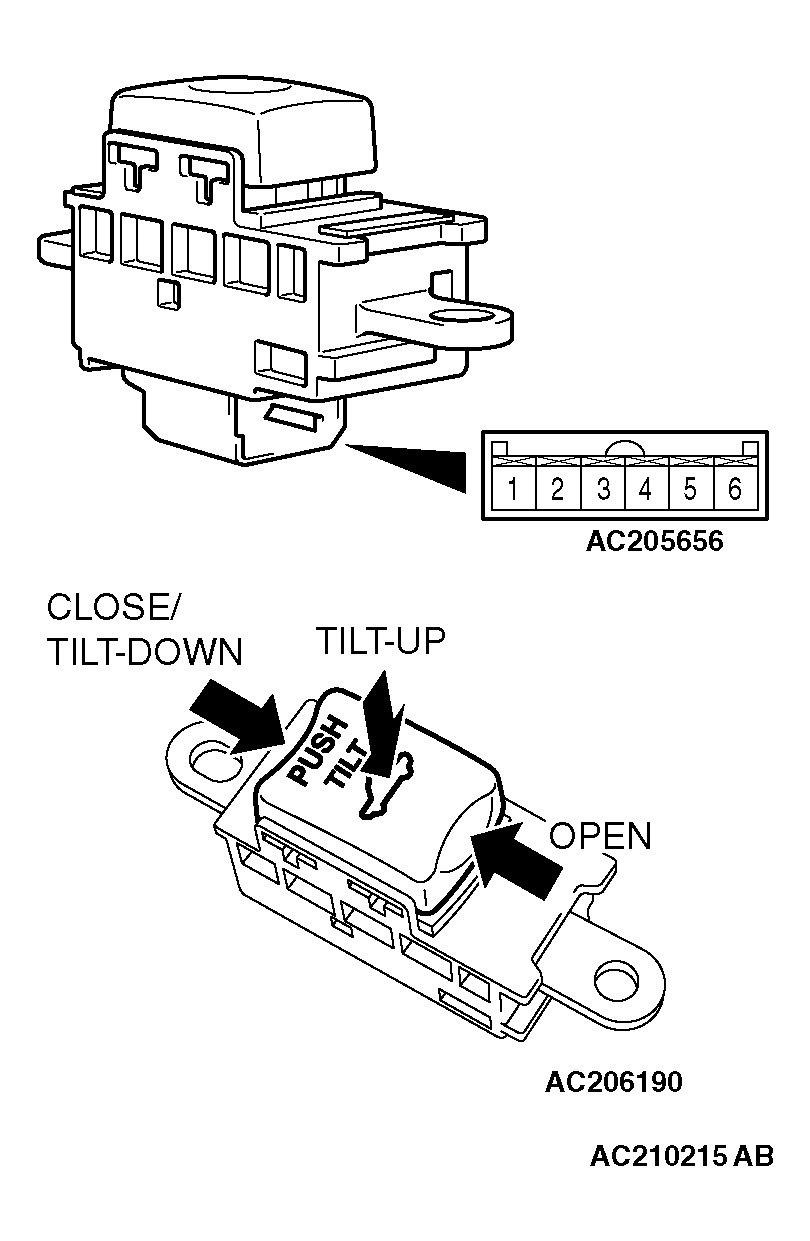

Fig 1: Identifying Sunroof Switch Connector Terminals
G04312786Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
