Disassembly And Assembly: Notes

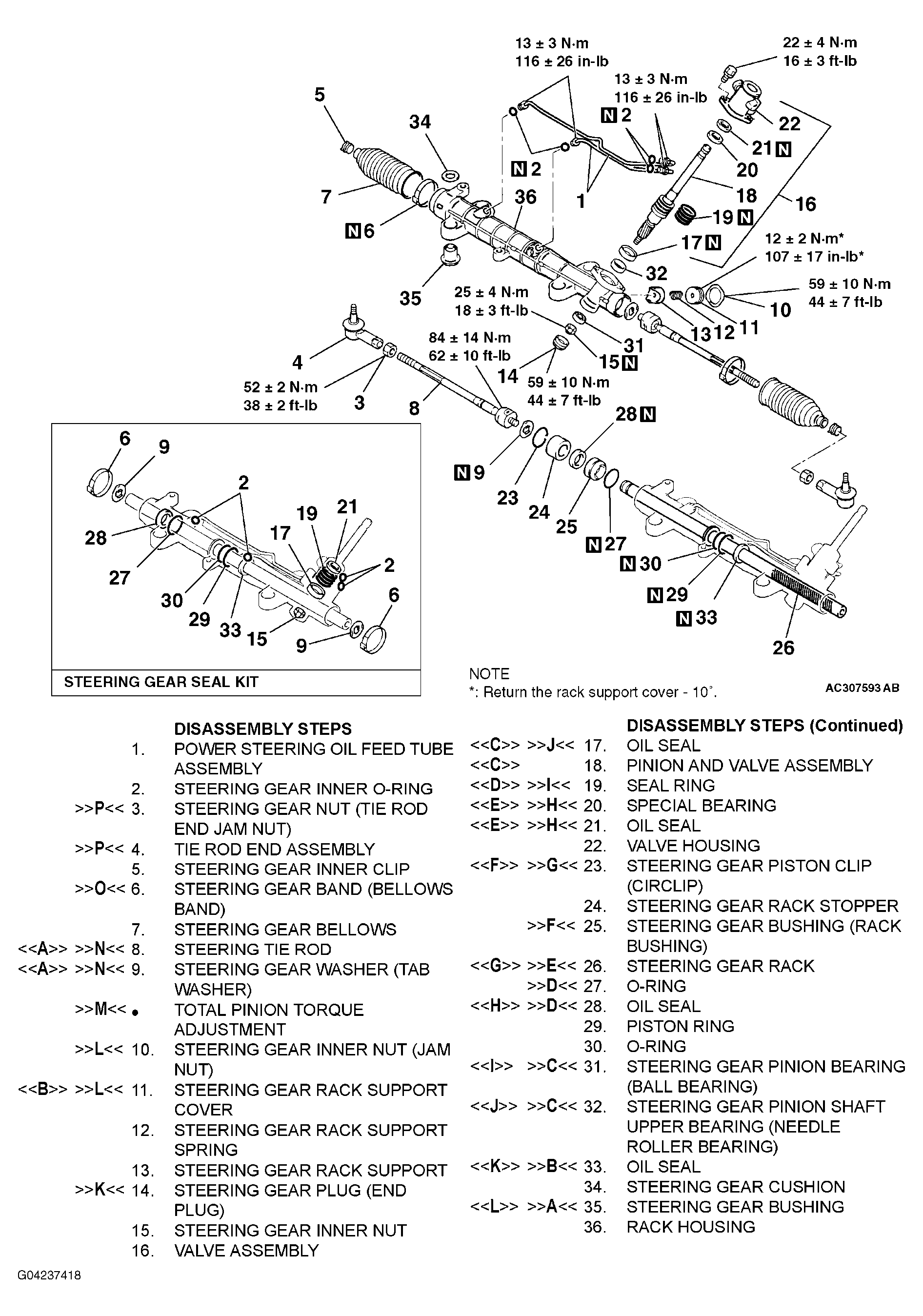

Fig 1: Disassembling/Assembling Power Steering Gear Box Linkage With Torque Specifications

G04237418

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
