Removal And Installation < 2.4L Engine >: Notes

CAUTION: *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

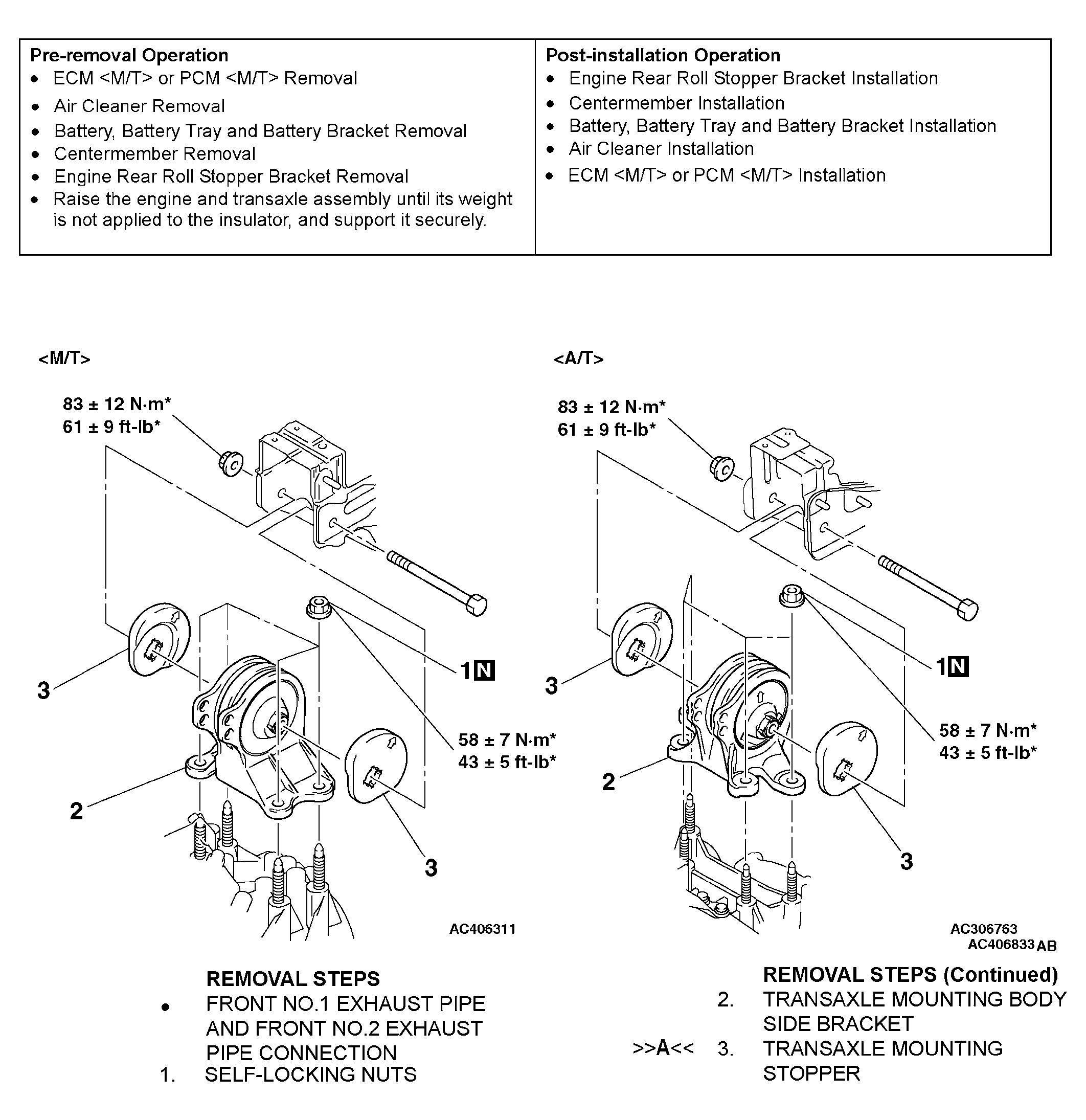

Fig 1: Removing/Installing Transaxle Mounting With Torque Specifications(2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
