Removal And Installation < 2.4L Engine >: Notes

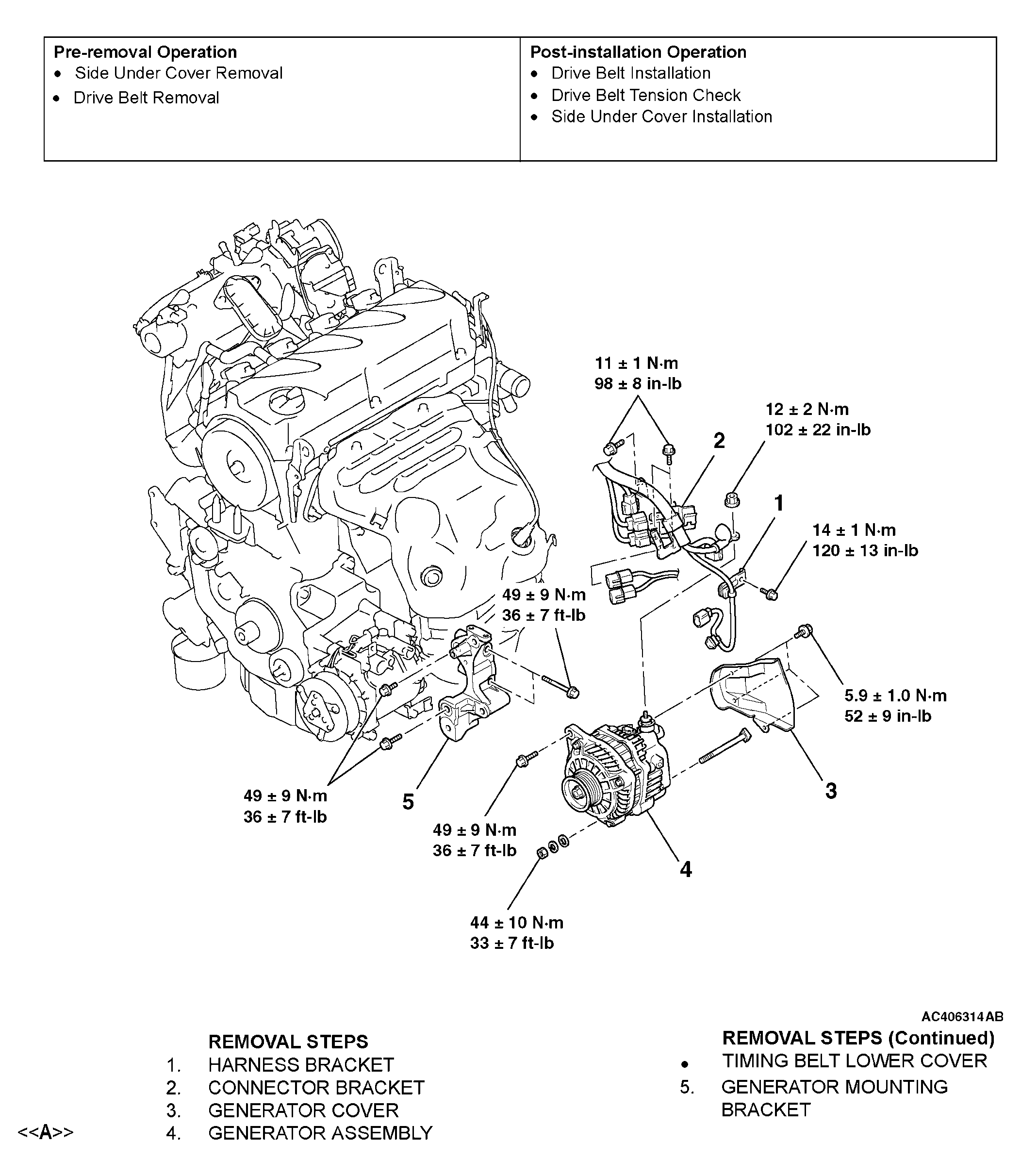

Fig 1: Removing Generator Assembly Components With Torque Specifications (2.4L Engine)

G04237073

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
