3. Continuity Check

  1. When the switch is in the "OFF" position and the contact points of terminals 1 and 2 are connected, the self-powered test light should illuminate or the ohmmeter should read 0 ohm.
  2. When the switch is the "ON" position and the contact points of terminals 3 and 4 are connected, the self-powered test light should come on or the ohmmeter should read 0 ohm.

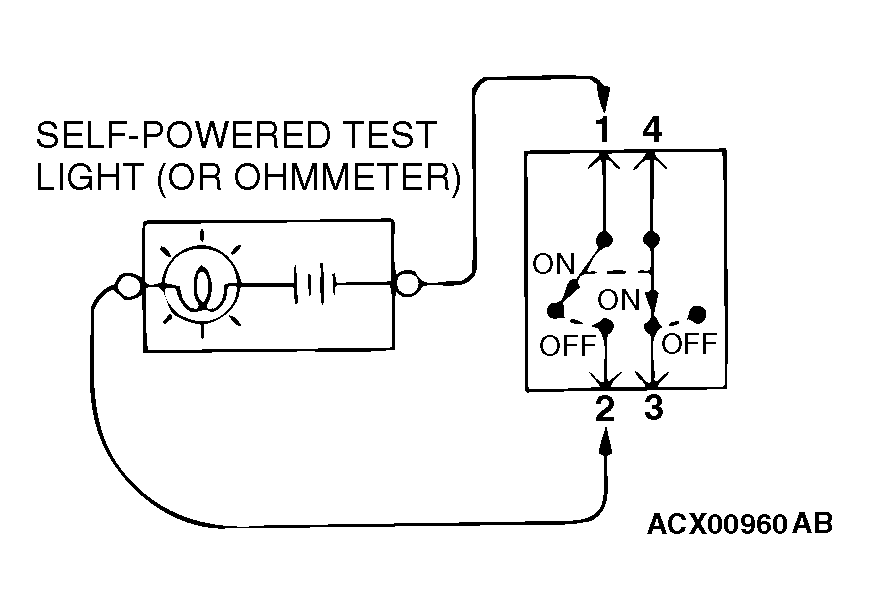

    Fig 1: Checking Continuity Using Self-Powered Test Light Or Ohmmeter
    G04232502Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
