Inspection Procedure 1: Communication Between The Scan Tool And The Abs/TCL-Ecu Is Not Possible: Notes

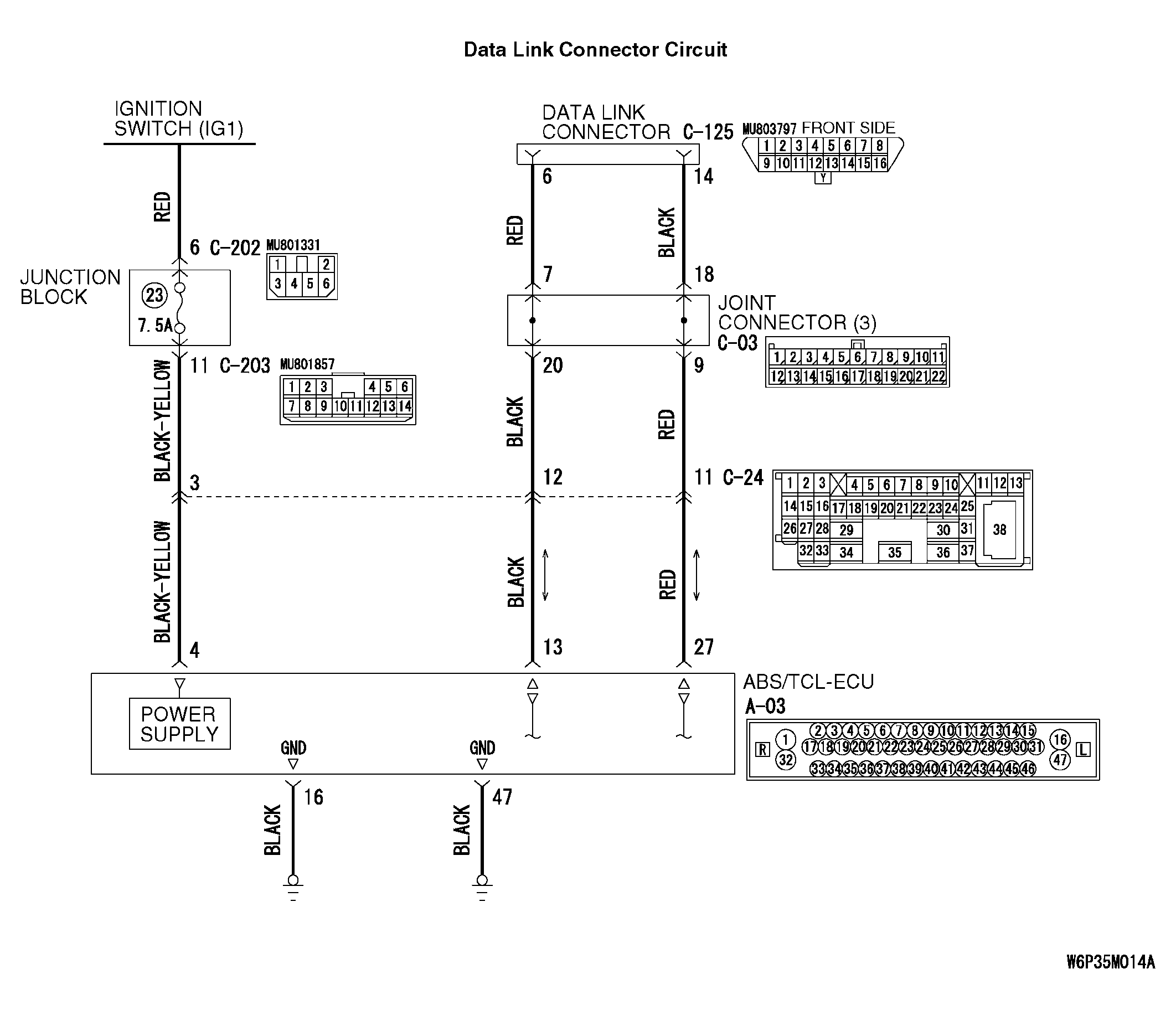

Fig 1: Data Link Connector Circuit Diagram

G04232315

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
