Removal And Installation: Notes

WARNING: Before removing the air bag module and steering wheel assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .

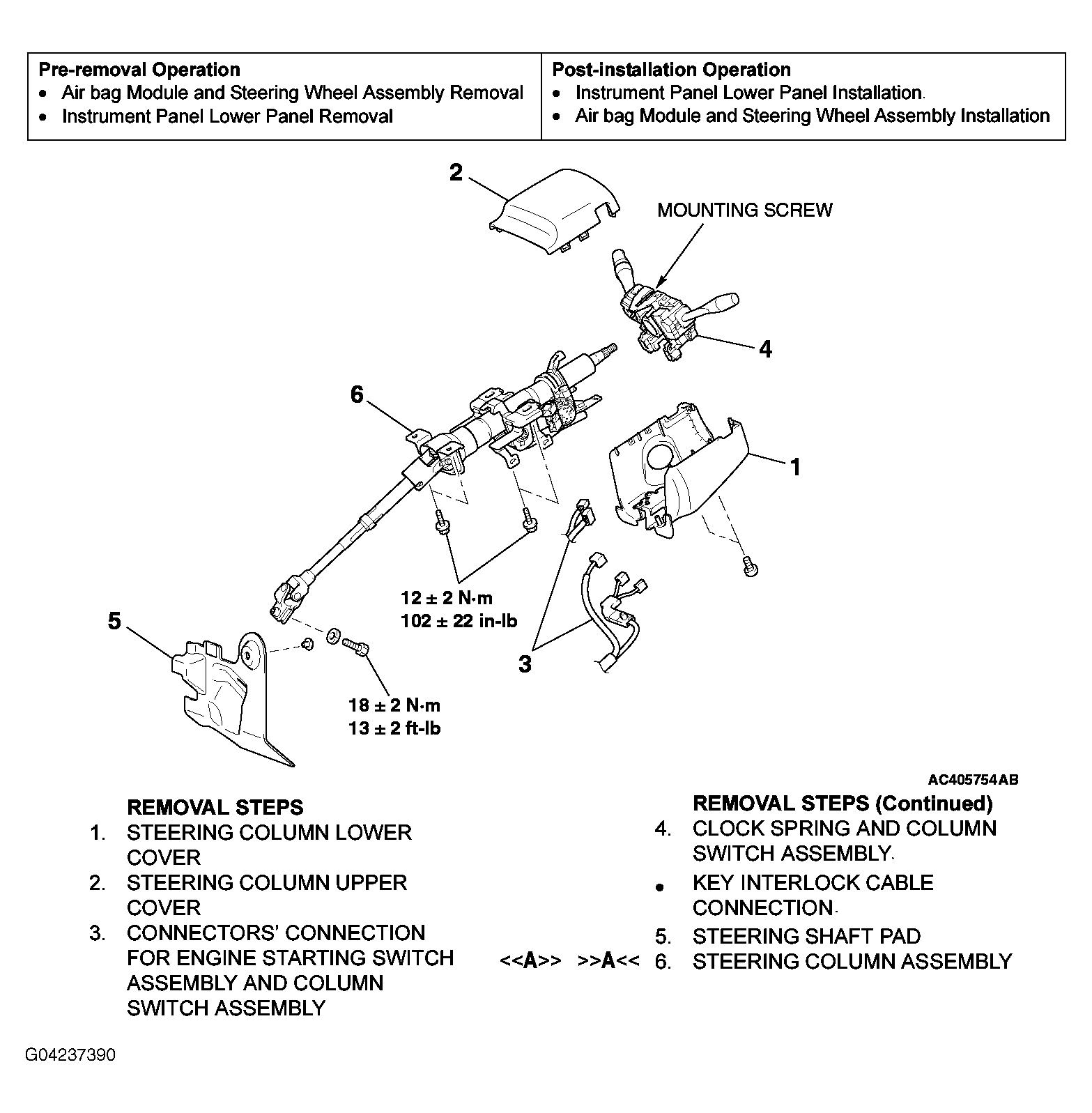

Fig 1: Removing/Installing Steering Shaft Components With Torque Specifications
G04237390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
