Home >> Mitsubishi >> 2007 >> Eclipse SE, Automatic >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Hoses >> Removal And Installation >> Notes

Removal And Installation: Notes

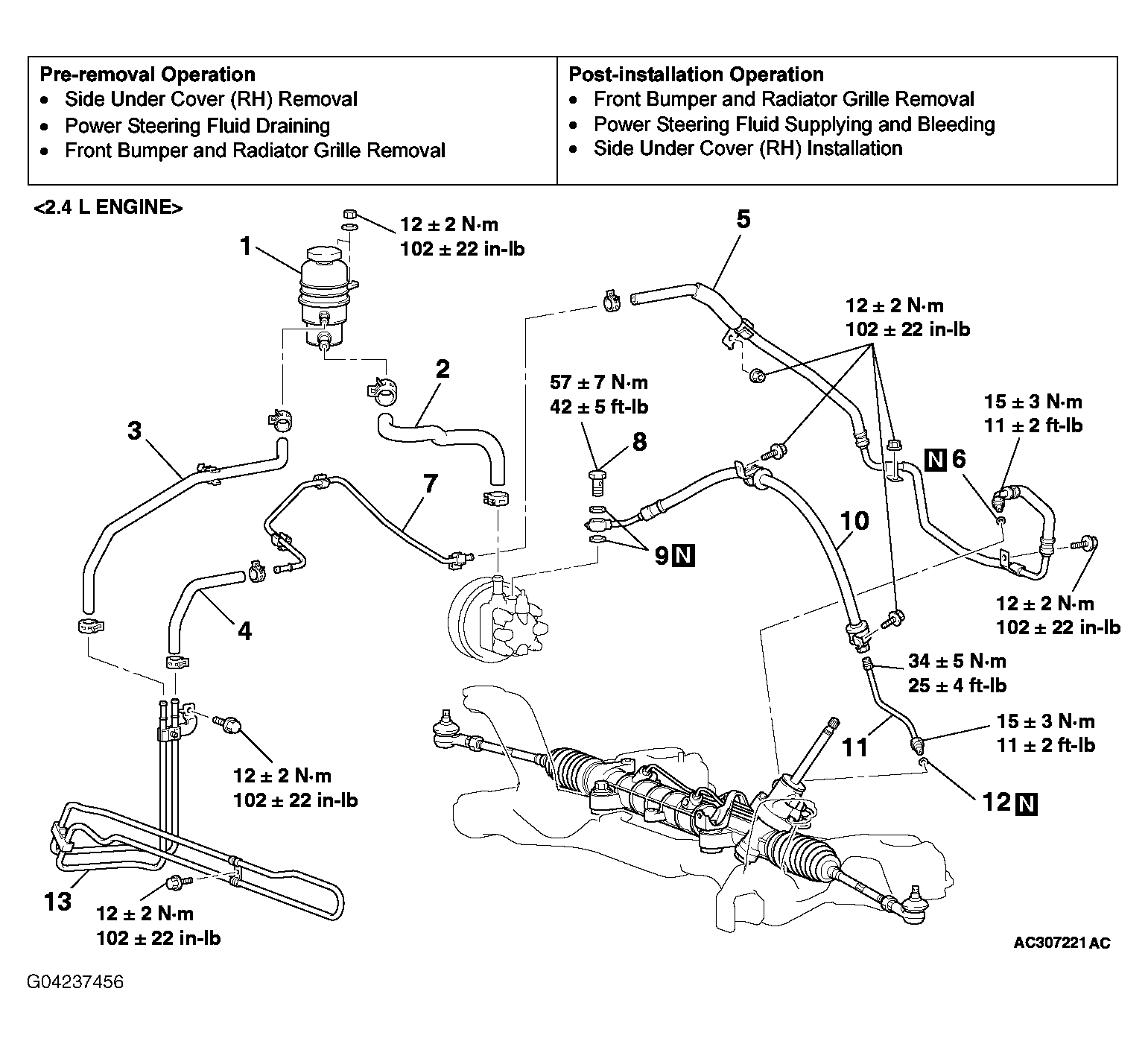

Fig 1: Removing/Installing Power Steering Hoses Components With Torque Specifications (2.4L)
G04237456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

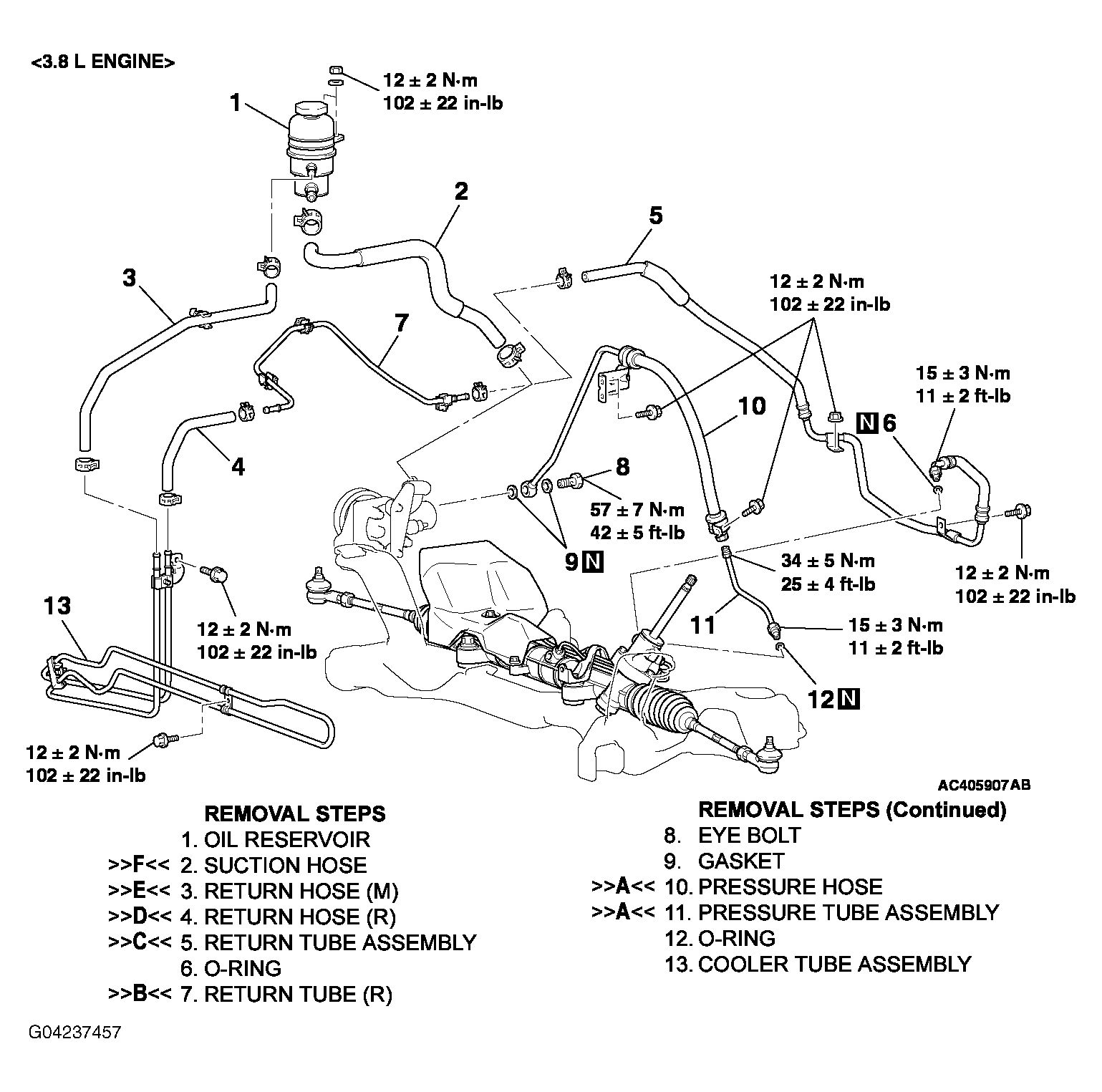

Fig 2: Removing/Installing Power Steering Hoses Components With Torque Specifications (3.8L)
G04237457Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
