Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

When the engine assembly replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to, INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
*: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

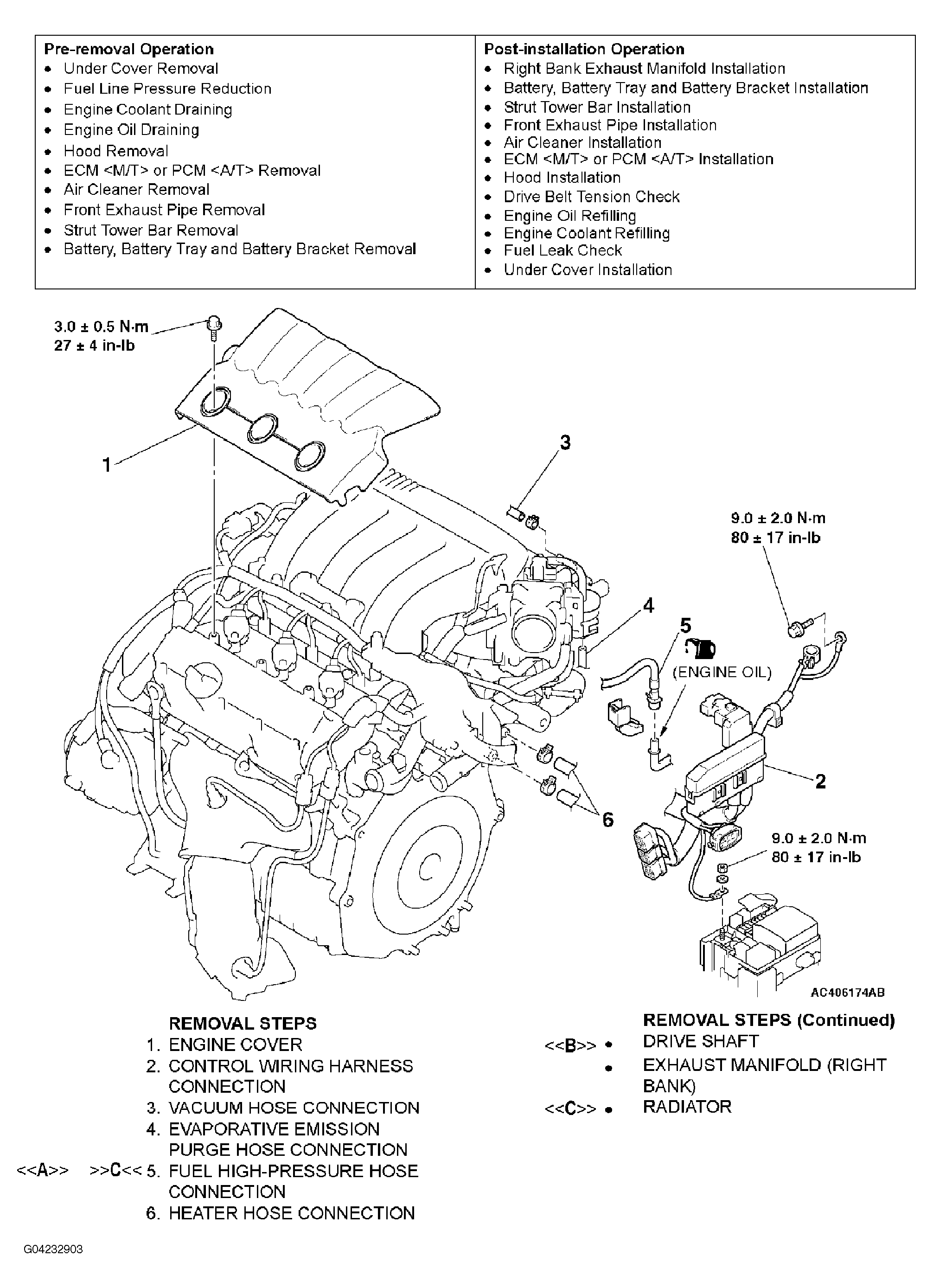

Fig 1: Removing Engine Assembly With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

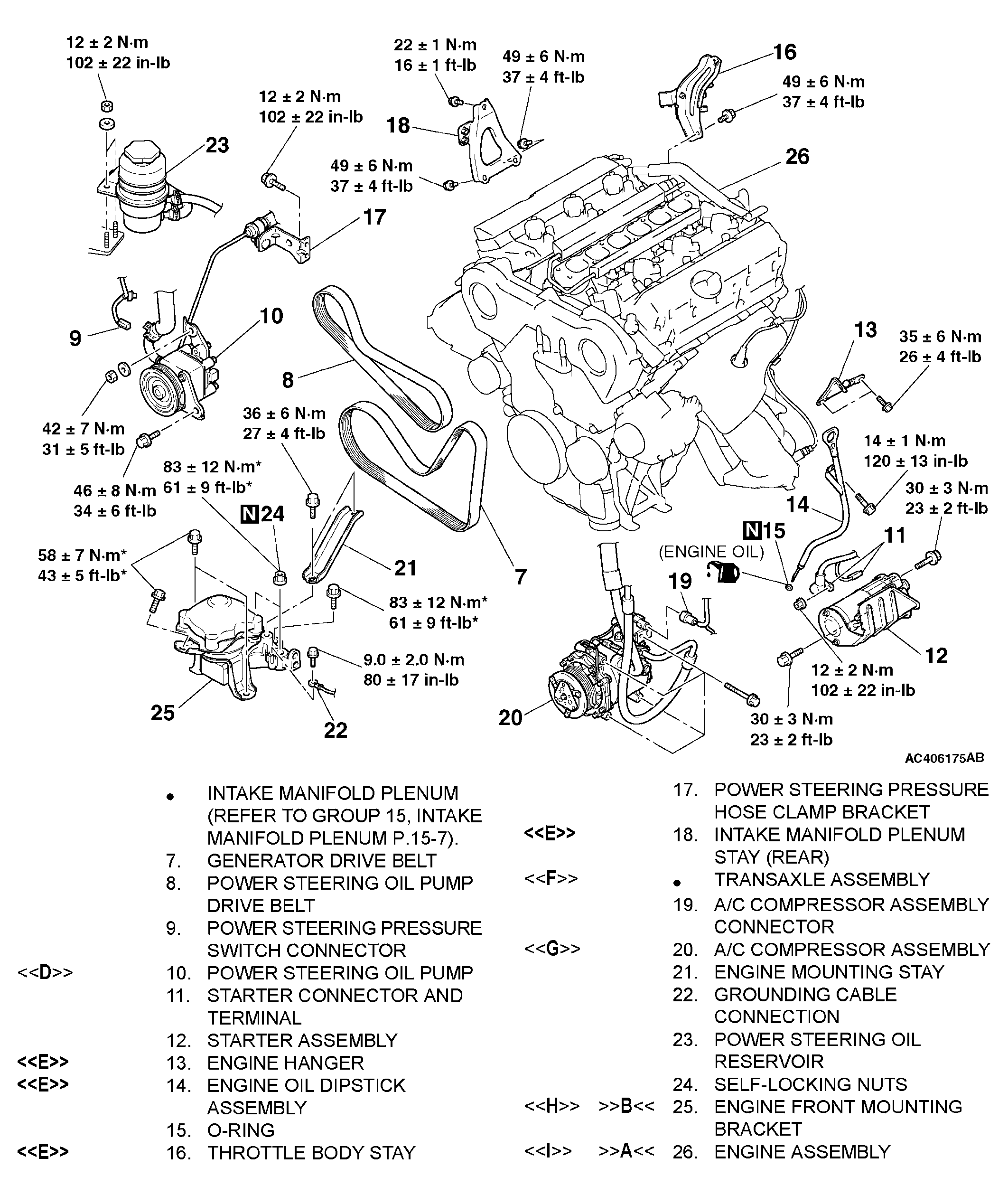

Fig 2: Removing Engine Assembly With Torque Specifications (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
