Removal And Installation: Notes

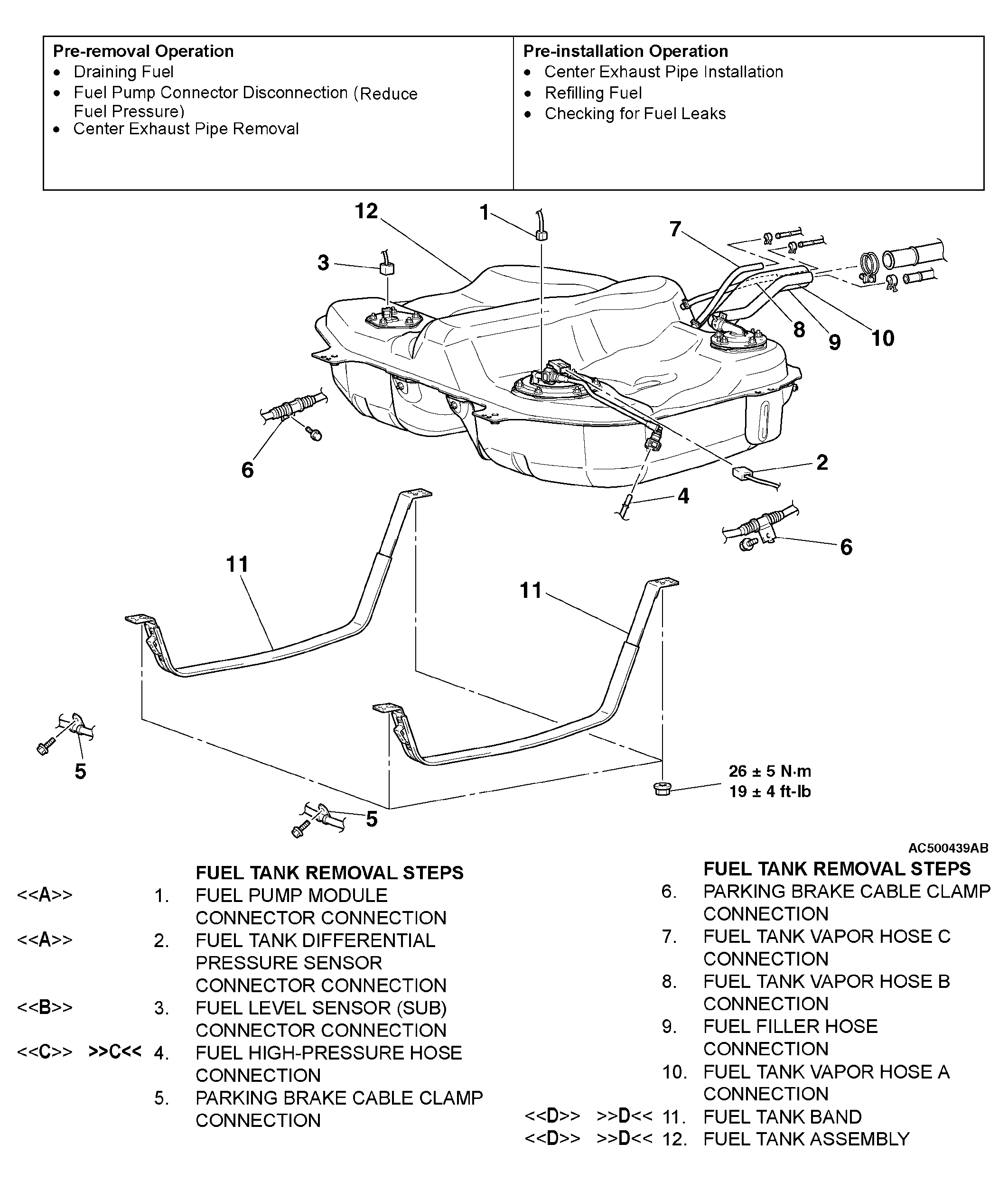

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
G04236919Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

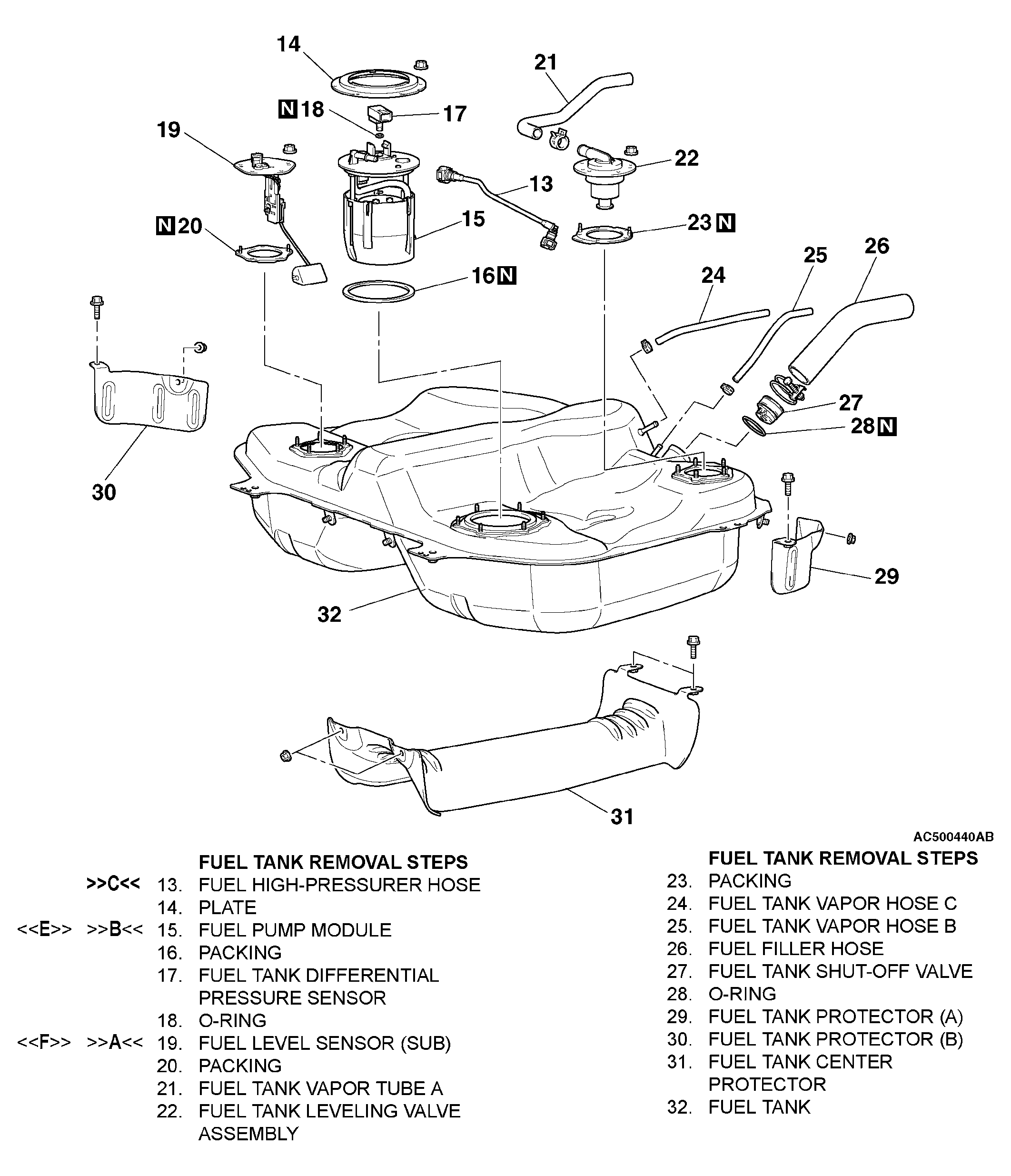

Fig 2: Identifying Fuel Tank Components (2 Of 3)
G04236920Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

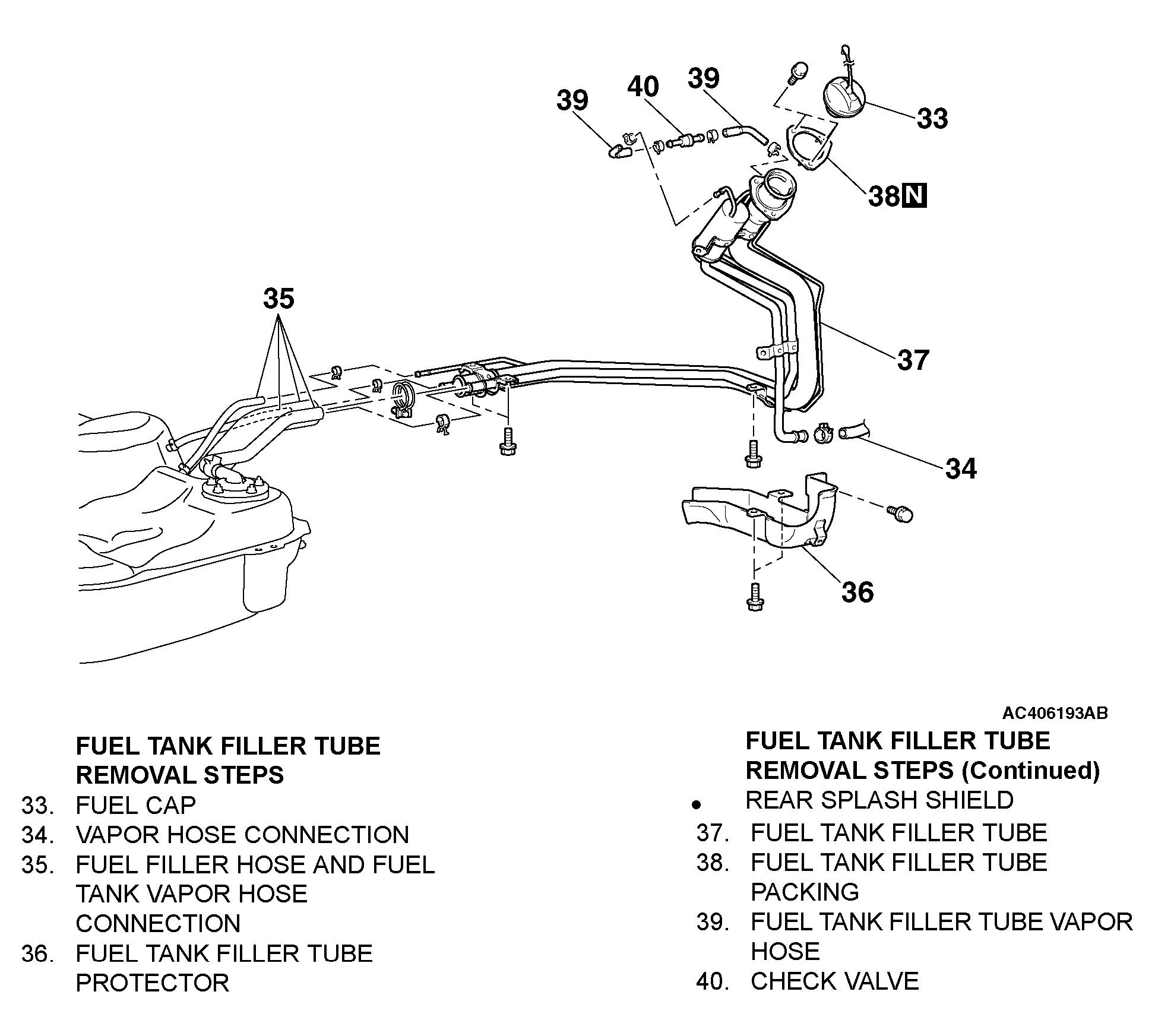

Fig 3: Identifying Fuel Tank Components (3 Of 3)
G04236921Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
