Power Window Timer Function

Even after the ignition is switched off, the ETACS-ECU keeps the power window relay activated for approximately 30 seconds, enabling raising or lowering of the power windows by using the power window switches. After approximately 30 seconds, the power window relay is deactivated.

During this timed operation, if the driver's or passenger's doors are opened, the power window relay is deactivated from that moment.

Fig 1: Power Window Timer Function
G05106802Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

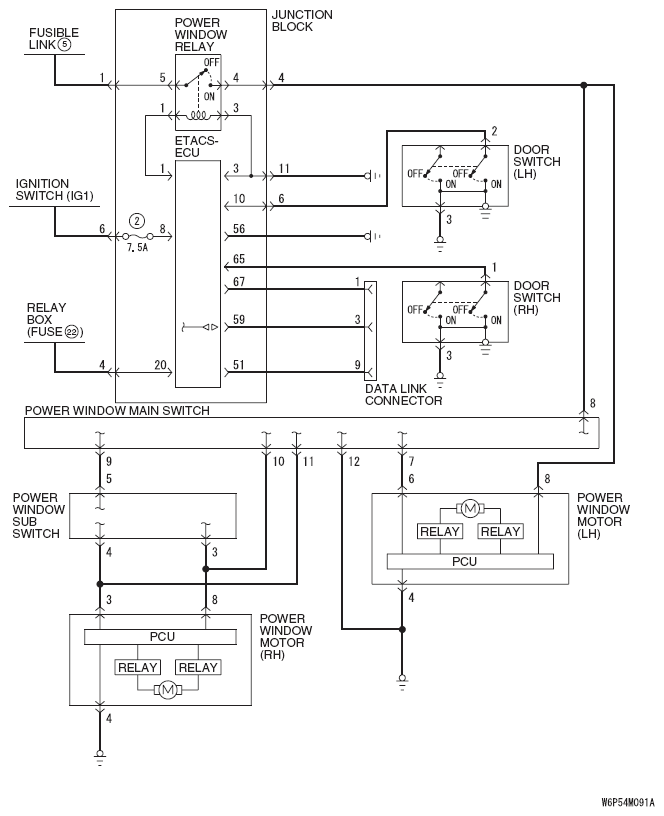

General circuit diagram for the power windows

Fig 2: Power Windows Circuit Diagram
G05106803Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
