Installation- 3.7L Engine

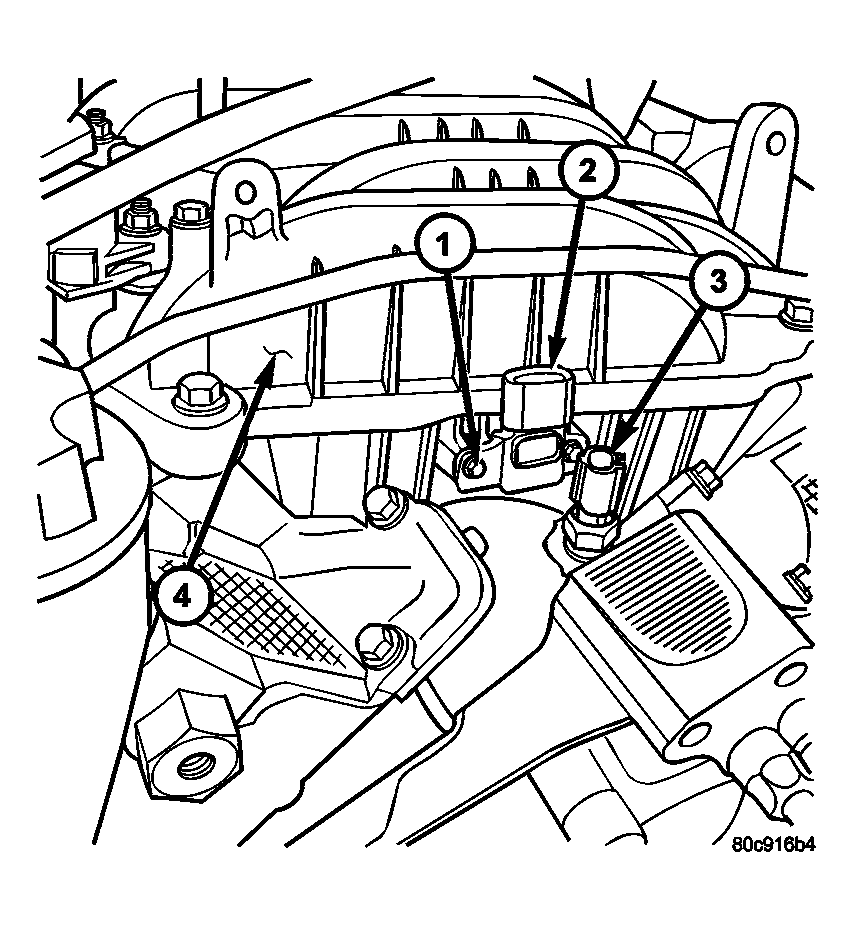

Fig 1: Locating Engine Coolant Temperature Sensor (3.7L)
G04283956Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Apply thread sealant to sensor threads.
  2. Install engine coolant sensor into intake manifold. (3). Tighten sensor to 11 N.m (97.3 in. lbs.) torque.
  3. Connect the electrical connector.
  4. Fill the cooling system (Refer to STANDARD PROCEDURE ).
