Heater - Engine Block: Removal

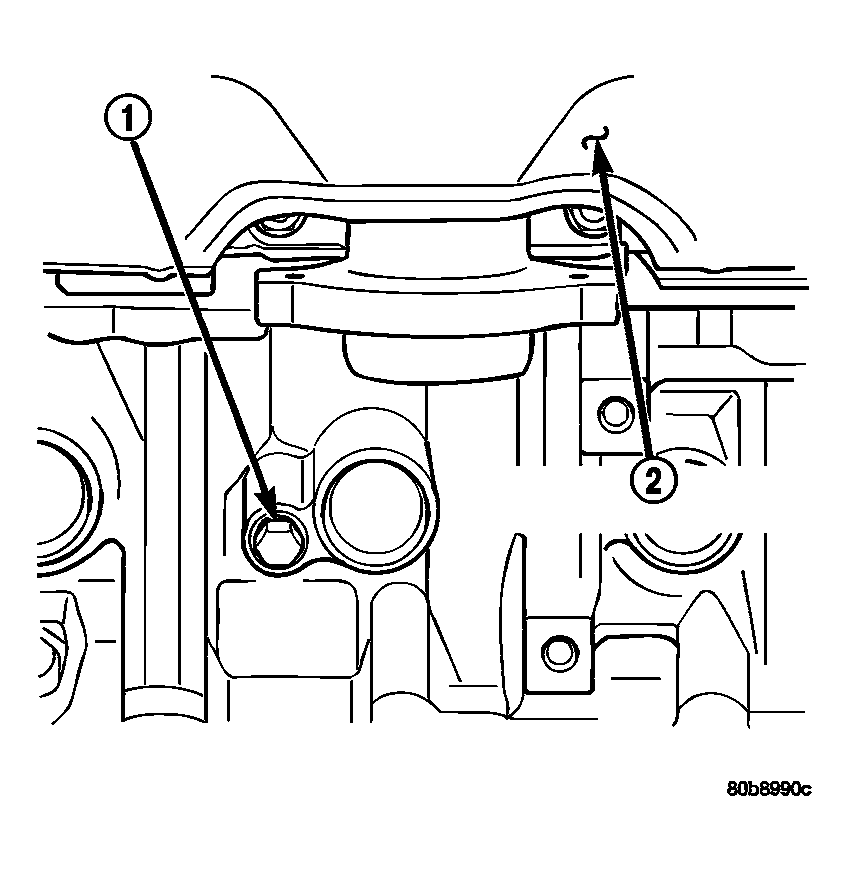

Fig 1: Identifying Engine Cylinder Block Drain Plug

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Disconnect negative battery cable from battery.
Drain coolant from radiator (Refer to STANDARD PROCEDURE ).
Raise vehicle.
Remove engine cylinder block drain plug(s) (1) located on the sides of cylinder block above the oil pan rail.

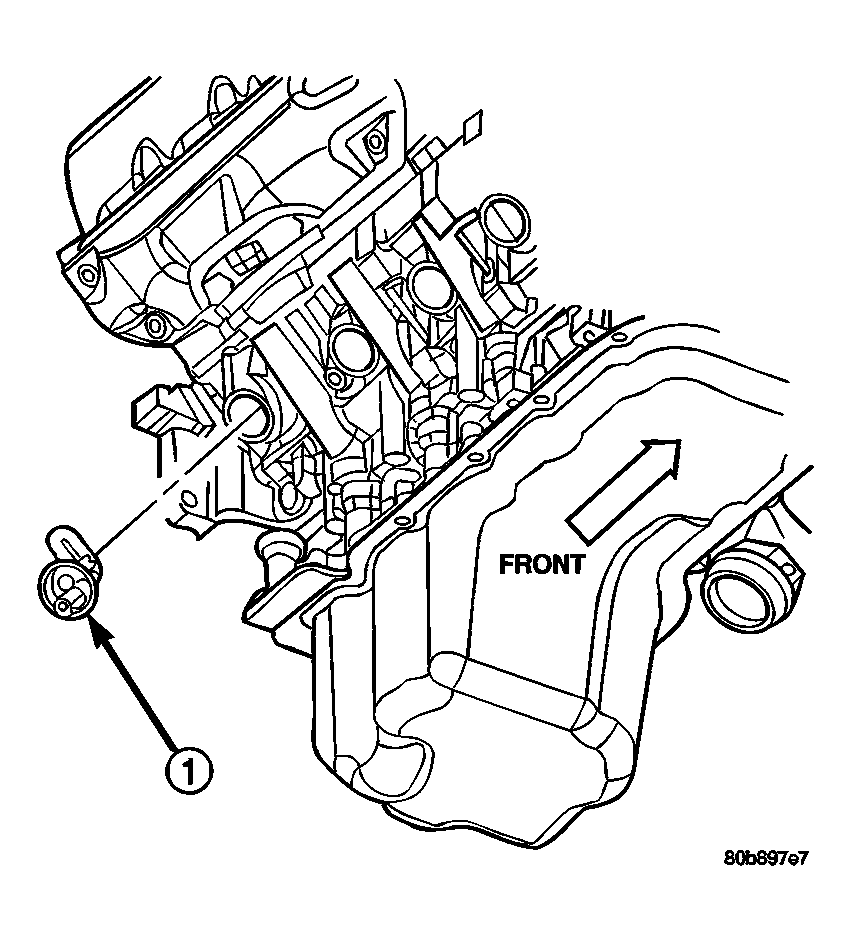

Fig 2: Identifying Engine Block Heater
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove power cord from block heater.
Loosen screw at center of block heater. Remove heater assembly (1).
