Power Steering: Pump: Installation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

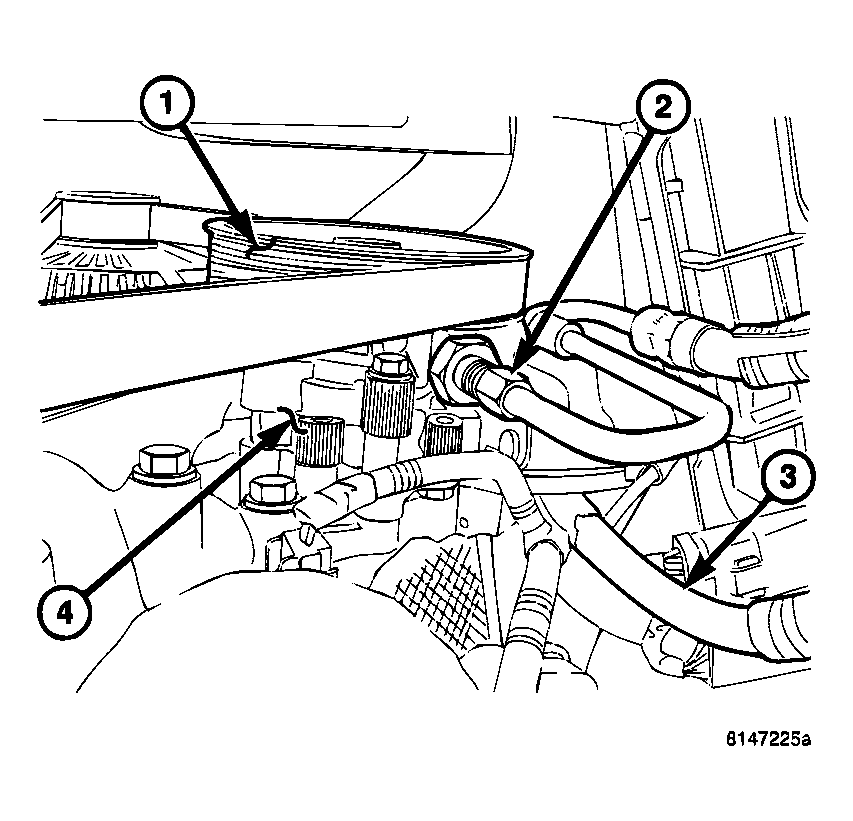

- Align the pump (4) with the mounting holes on the engine.
- Install 3 pump mounting bolts through the pulley access holes (1). Tighten the bolts to 28 N.m (21 ft. lbs.).
- Install the pressure hose (2) to the pump (4). Tighten the tube nut to 31 N.m (23 ft. lbs.).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

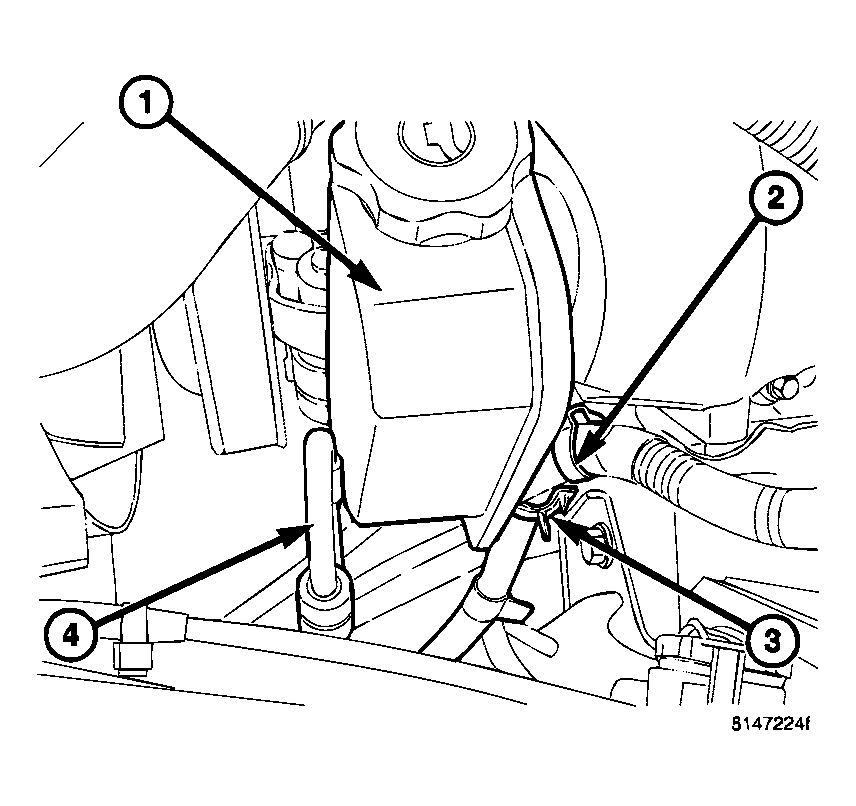

- Install reservoir return hose (3) to the reservoir (1).
- Install the serpentine drive belt,
(Refer to
INSTALLATION
).
- Fill the power steering pump,
(Refer to
INITIAL OPERATION ).
