4.7L V-8

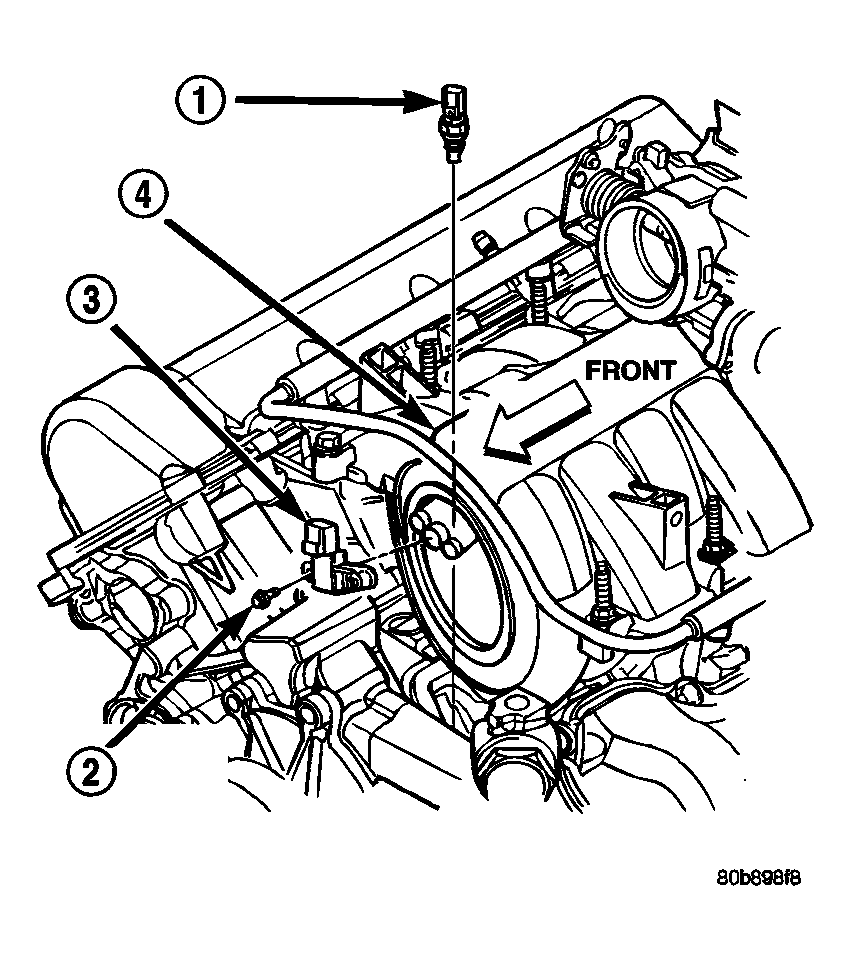

Fig 1: Locating Manifold Absolute Pressure (MAP) Sensor (4.7L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The Manifold Absolute Pressure (MAP) sensor (3) is mounted into the front of the intake manifold with 2 screws.
