3.7L V-6

The Manifold Absolute Pressure (MAP) sensor (2) is mounted into the front of the intake manifold with 2 screws.

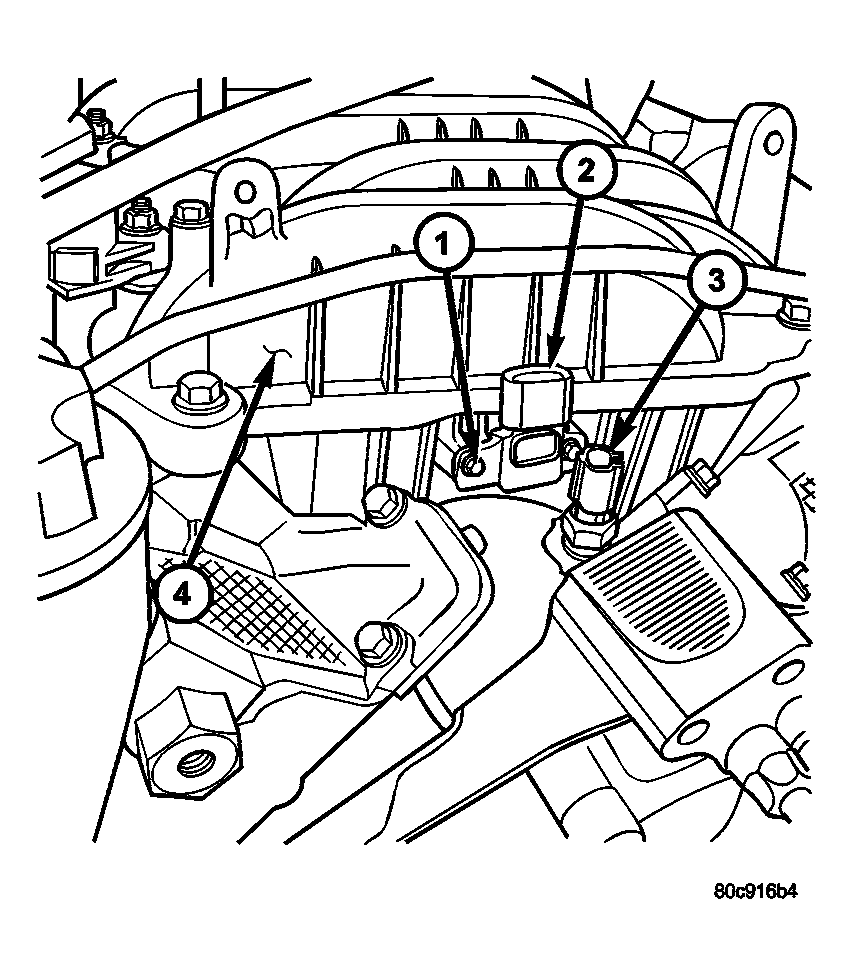

Fig 1: Locating Manifold Absolute Pressure (MAP) Sensor (3.7L)
G04283759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
