Injector - Fuel: Description

An individual fuel injector (1) is used for each individual cylinder.

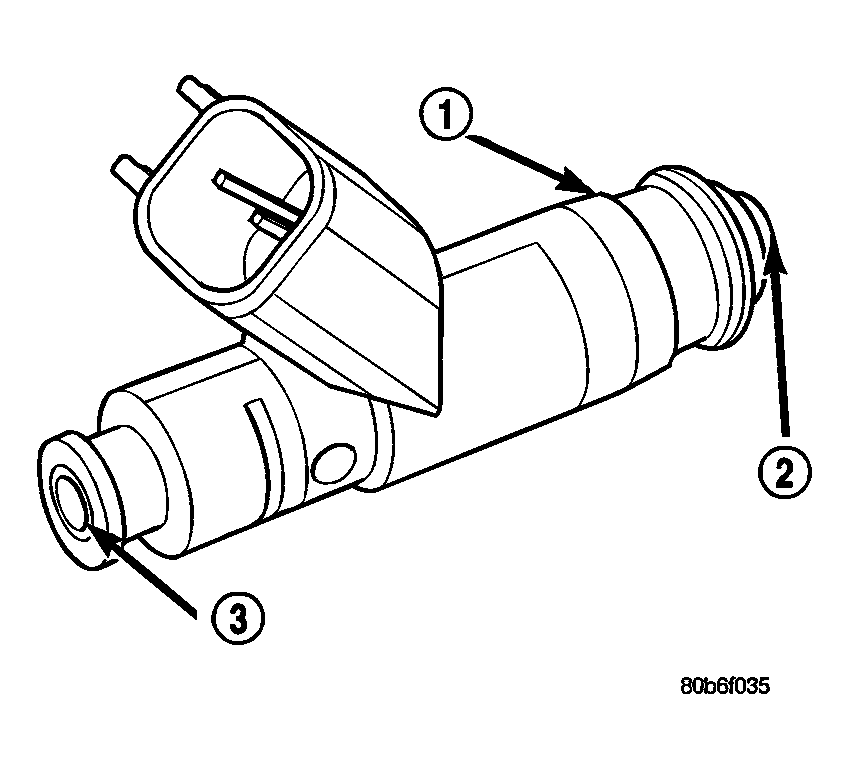

Fig 1: Identifying Fuel Injector Features

G04283742

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
